Wharfedale Pro XO-204 12W 2 Way Crossover
Key Feature Of Wharfedale Pro XO-204
-
➤ Dual-channel crossover with single control for both channels.
-
➤ 24 dB/oct Linkwitz–Riley filters for precise signal separation.
-
➤ Built-in driver protection with 40 Hz HPF and soft limit.
-
➤ Flexible outputs with mute, mono, and polarity options.
-
➤ 1U rackmount design with LED clip and level indicators.
PRODUCT OVERVIEW
Wharfedale Pro XO-204 / XO-204X
The XO-204 is a crossover built for stereo bi-amplified sound reinforcement systems. A simplified front panel layout and feature set take the confusion out of complicated setups. A completely intuitive interface with protective features means you can set up your system safely and easily. Both the XO-204 and XO-204X models are equipped with 2 inputs and 4 outputs; however, the 'X' model uses balanced XLR connectors (as opposed to balanced 6.3 mm jacks).
|
Maximum Headroom and Protection Your valuable equipment is an investment. This is why we've equipped the XO series with everything needed to protect your gear. A switchable 40 Hz 12 dB/oct HPF helps to protect LF drivers from over excursion and increase overall system headroom. Each output also benefits from a soft limit switch, reducing excessive volume levels. |
 |
Rugged Design

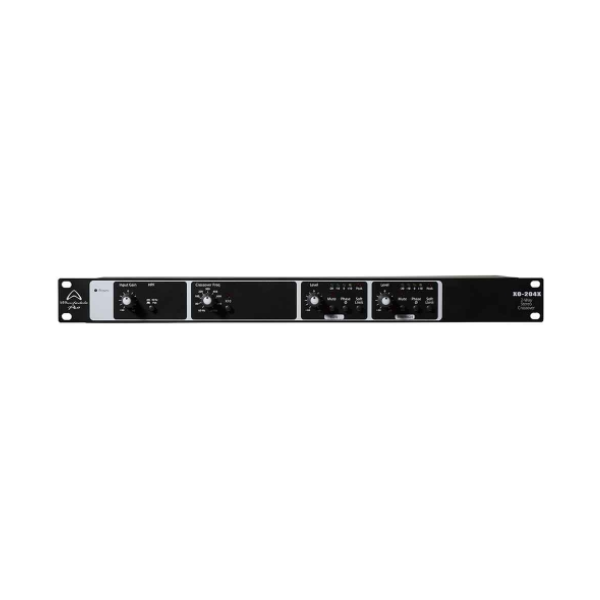

Housed in a compact 1U rackmount chassis, the XO-204 is built for reliability and ease of installation. LED clip and output meters provide quick visual monitoring, while versatile output options enhance system flexibility.
 |
 |
|
Precision Control The Wharfedale Pro XO-204 delivers exceptional stereo clarity with its dual-channel design and a single crossover frequency control. The 24 dB/octave Linkwitz–Riley filters ensure accurate signal separation, making it ideal for professional audio setups. |
Built-in Protection Designed with performance safety in mind, it features a 40 Hz high-pass filter and soft limit switches to protect low-frequency drivers and prevent distortion. This ensures consistent, high-quality sound without equipment damage. |
Simplistic, Accurate Control
XO series crossovers feature 24 dB/oct Linkwitz/Reilly filters. The crossover frequency for both channels can be controlled from one potentiometer for more accurate control and improved stereo imaging.
The choice is yours.
The model is available with 6.3 mm balanced jack inputs/outputs or balanced XLR inputs/outputs in the 'X' model.
Key Features
-
2-way stereo model
-
2 x 6.3mm inputs, 4 x 6.3mm outputs
-
simplified one-control setup for both channels
-
Professional 8th-order Linkwitz-Riley filters
-
Switchable 40 Hz 12 dB/Oct HPF
-
Polarity switch to minimise phasing
-
Soft limit option on all channels
-
LF/HF mute switches for setup.
-
LF/HF output level control for overall tonal balance
-
Mono LF output switch for subwoofers
-
Balanced 1/4" Jack inputs and outputs or Balanced XLR on 'X' model
-
Ground lift switch
-
1U 19" rackmount chassis
-
4 LED output level meters plus input clip indicator
| Product Name | Wharfedale Pro XO-204 12W 2 Way Crossover |
|---|---|
| Weight | 2.91 Kg |
| Frequency Response | 10Hz - 40kHz |
| Frequency Range | 60Hz - 10kHz |
| Power Capacity | 12W |
| Maximum SPL | +21dBu |
| Impedance | Balanced 20k ohm, unbalanced 10k ohm |
| Dimensions | 482mm x 250mm x 46mm |
| Manufacturer | Wharfedale |
| Color | Black |
| Country of Origin | United States |
