PRODUCT OVERVIEW

DP-4035

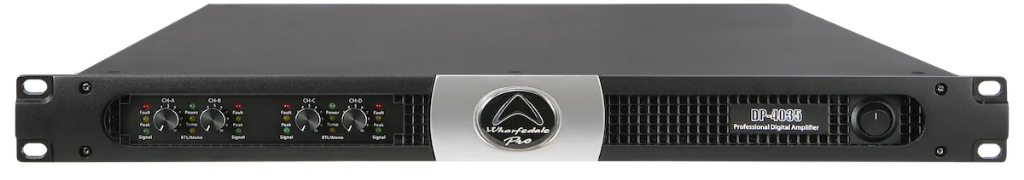

The Wharfedale Pro DP-4035 is a lightweight 4-channel Class D power amplifier, weighing just 8 kg and delivering impressive power across a wide impedance range. It produces 4 × 350 W into 8 Ω, 4 × 595 W into 4 Ω, and maintains stability down to 2 Ω with 4 × 1,010 W output. Bridge mode boosts output to 2 × 1,190 W (8 Ω) or 2 × 2,020 W (4 Ω), making it highly versatile for complex audio configurations. Equipped with a switch-mode power supply, ultra‑quiet variable‑speed fans, balanced XLR inputs, Speakon outputs, and comprehensive protection circuitry (thermal, over‑current, short circuit, DC, limiter), the DP‑4035 ensures reliable and clean performances in both live and installation settings.

The Wharfedale Pro DP‑2200 is a ultra‑light (9.3 kg), rack‑mountable Class D power amplifier delivering up to 2×2000 W into 8 Ω (scaling to 2×4760 W at 2 Ω or a bridged 6800 W), with advanced protections, variable‑speed cooling, and flexible stereo/mono/bridge modes for professional live sound or installation use.

PROTECTION

Internally, a full suite of protection circuitry includes thermal, overcurrent, DC, short-circuit protection, and power on/off mute. This level of protection ensures long-term system reliability and peace of mind should the worst ever happen.

Front panel LEDs also keep the sound engineer well informed with fault, peak, and signal LEDs.

The variable speed fans keep the amplifier rack quiet when not in use and cool while it's running at high volume.

STABLE DOWN TO 2 OHMS Stable down to 2 Ohms (*except DP-4030) and with huge power output. The power output figures of the DP series are staggering.  The rated power outputs are measured at THD = 1%, continuous sinusoidal 1 KHz, with each channel working simultaneously. This allows for multiple 8 Ω or 16 Ω speakers to be driven with extreme power.

MODES AND SWITCHES

The DP Series features stereo, bridge, and mono modes. Use in bridge mode with an individual high-powered subwoofer or use a single DP to power your whole sound system equally.

Mono mode saves external cabling by splitting a single input to feed both channels of the amplifier.

In addition, gains can easily be controlled by the rear panel gain switch. This allows for installation into almost any rig or venue.

The DP-2200 features XLR inputs with a maximum input level of +22 dBu, allowing for integration with any typical professional audio system.

DESIGN

The 1U design allows for powerful systems to be configured in extremely confined spaces. In the tour rack or the amp room, DP delivers reliable power from a small box.

Lightweight, powerful, and portable. It's that simple!

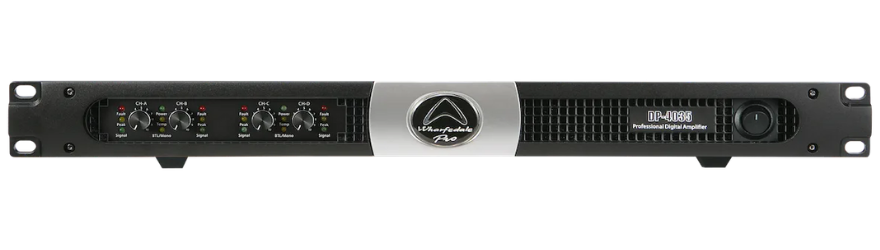

• FRONT

• REAR

Stable down to 2 ohms

Need to drive multiple loudspeakers in a larger system?

DP series amplifiers are stable down to 2Ω, allowing for daisy-chaining of 8Ω or 16Ω loudspeakers.
