Wharfedale Pro CPD2600 1000w 20 Hz – 30 KHz Frequency Response Power Amplifiezr
Key Features Of Wharfedale Pro CPD 2600
-
➤ Suitable for mobile use, touring, rental, and installation
-
➤ Stereo, Parallel, and Bridge modes
-
➤ 2 x XLR inputs
-
➤ 2 x SpeakON compatible outputs
-
➤ Continuous variable speed fan
PRODUCT OVERVIEW
CPD 2600
The CPD2600 is part of Wharfedale Pro’s latest line of professional power amplifiers, driving earth-shaking audio from the front of your venue, all the way to the back. For use in stereo, the amplifier delivers 650W RMS per channel at 8 Ohms and 1000W RMS per channel at 4 Ohms; a suitable power for small to large-sized complete PA systems. In bridged mode at 4 Ohms, the amplifier generates 2600W RMS. This huge power means the amplifier can also integrate itself with larger touring rigs and installs where long-throw, extremely high-power audio is needed.
|
Technology Working in stereo, parallel, and bridged modes, the CPD2600 is built for a multitude of sound system formations. A brand new class H topology has resulted in a dynamic, high-headroom amp made for propelling your loudspeakers through thick and thin with complete clarity. |
 |
Precision Control
Large rotary dials accurately adjust gain levels, and you will know when to do so from the clear and simple front panel. A four-segment LED formation displays vital power status, level, limit, and protection information, keeping the sound engineer in the know.
 |
Massive transformers The CPD series is built around a massive, heavy-duty toroidal transformer. This delivers smooth and consistent power into the amplifier's electronic circuits, resulting in stable and reliable output power, even in environments where AC may fluctuate. |
 |

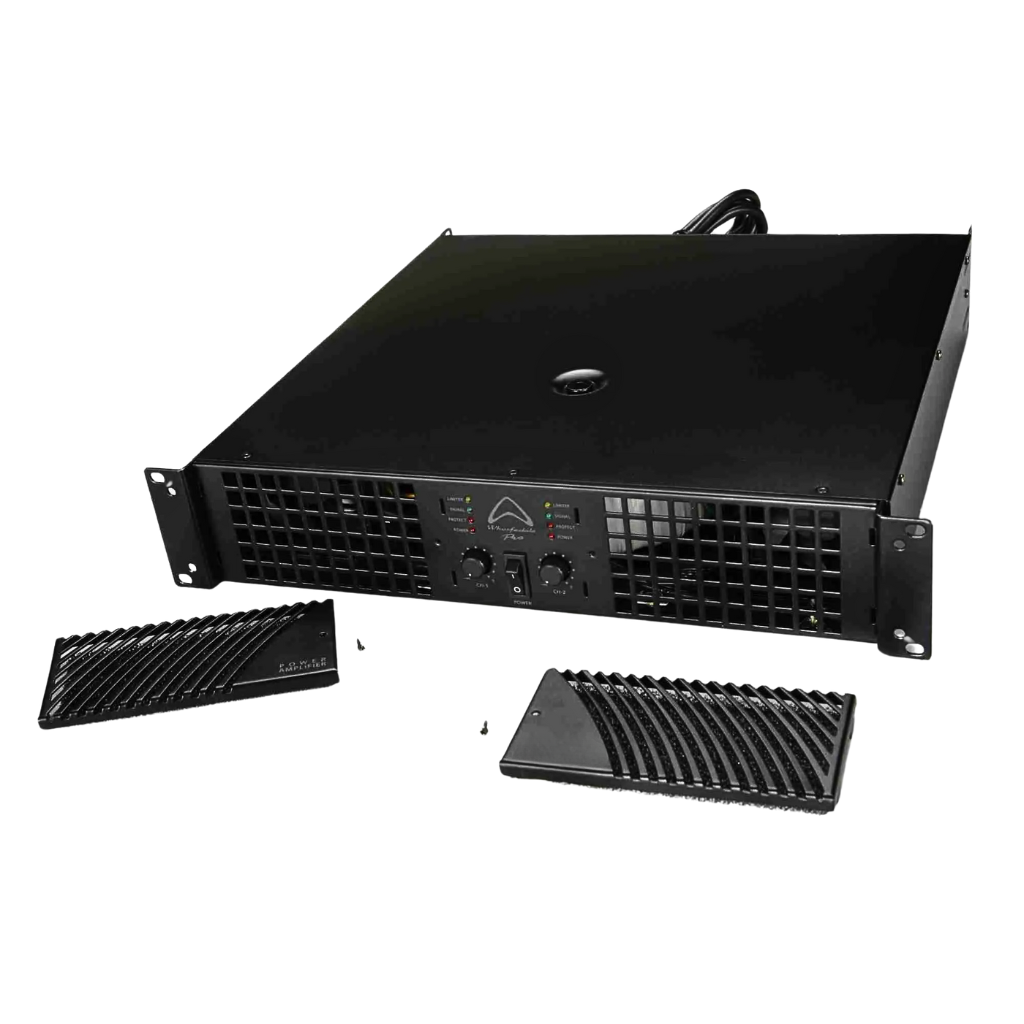

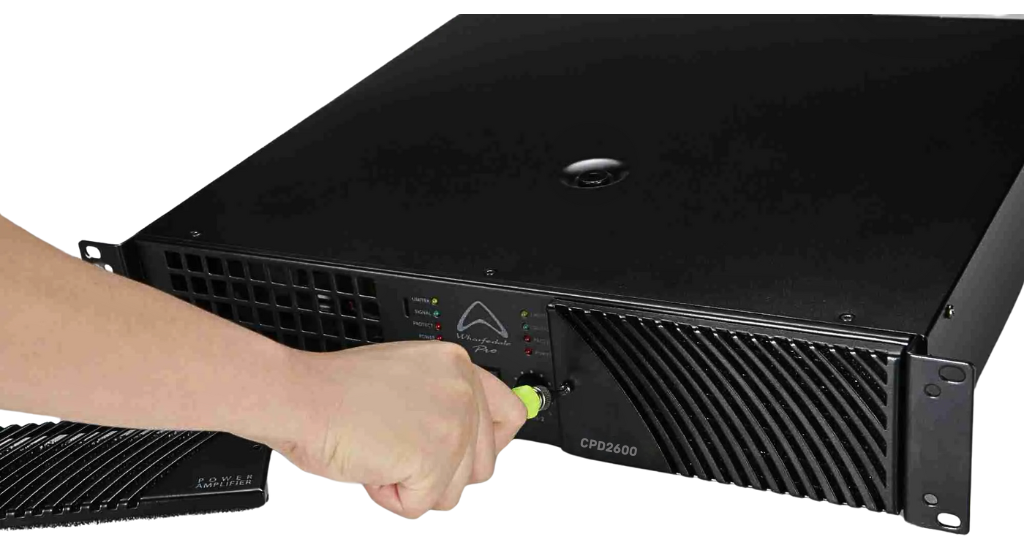

EASY CLEANING Amplifiers often work in hot and dusty environments and, over time, the fans of an amplifier can easily suck this in. Dirty cooling fans reduce efficiency and can lead to overheating. It's for this reason that we made the CPD series easy to clean. Simply unscrew the front grille, bush off the air filters, and put the grille back on. This easy maintenance means that a CPD amplifier can survive in the most hostile of working environments. That’s cool! |
-
FRONT PANEL
-

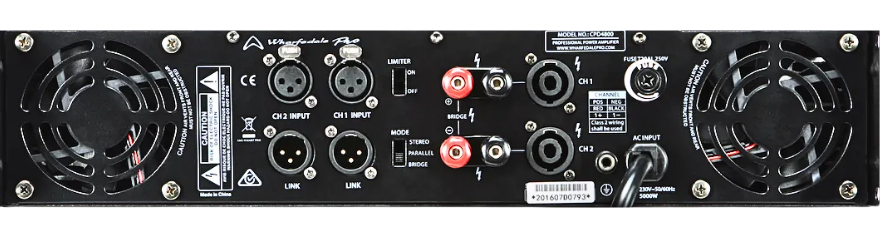

REAR PANEL
| Product Name | Wharfedale Pro CPD2600 1000w 20 Hz – 30 KHz Frequency Response Power Amplifiezr |
|---|---|
| Weight | 19.00 Kg |
| 4 Ω x 2 Stereo Power Output | 1000 w |
| 8 Ω x 2 Stereo Power Output | 650 w |
| 8 Ω Stereo Power Output | 1940 w |
| Frequency Response | 20Hz - 30KHz |
| Topology | Class H |
| Sensitivity | 0 dBu (0.775 Vrms) |
| Balanced XLR input | 20 KΩ |
| Maximum Input Level | 22 dBu (9.7 Vrms) |
| Voltage Gain | 39 dB |
| Slew Rate | >40 V / us |
| Crosstalk | <-70 dB |
| S/N | >100 dB |
| Distortion (1 W) | <0.02% |
| Damping Factor | >300 |
| Front panel | AC Switch, CH 1 and CH 2 Gain Knobs |
| Rear Panel | Parallel, Stereo & Bridge Mode Switch; Limiter Switch |
| Type Of Protections: | Thermal protect, Over-current protect, Output DC protect, Output short protect, Power on/off mute |
| Indicators | Power, Protect, Signal, Peak |
| Cooling | Variable Speed Fan |
| Dimensions | 88 x 483 x 450 mm |
| Package Weight | 22.5 |
| Manufacturer | Wharfedale |
| Color | Black |
| Country of Origin | United States |
