Wharfedale Pro DP2200 2 channels with 24 dB Power Amplifier
Key Features Of Wharfedale Pro DP2200
-
➤ Stable down to 2Ω (*except DP-4030)
-
➤ Drive multiple 8Ω and 16Ω loudspeakers
-
➤ 1 * Stereo model generating 6800 watts @ 8 Ω BTL.
-
➤ Ultra-quiet variable speed fans and advanced protection circuitry
-
➤ 70 V / 100 V compatible models
PRODUCT OVERVIEW
DP-2200
Suitable for professional live sound reinforcement or fixed installations, the stereo DP-2200 delivers extreme power from a lightweight box.
Its advanced switch-mode power supply and super-efficient Class D topology deliver high power with low distortion.
DP series are also stable all the way down to 2Ω. This means they will drive multiple 8Ω or 16Ω loudspeakers.
|
The Wharfedale Pro DP‑2200 is a ultra‑light (9.3 kg), rack‑mountable Class D power amplifier delivering up to 2×2000 W into 8 Ω (scaling to 2×4760 W at 2 Ω or a bridged 6800 W), with advanced protections, variable‑speed cooling, and flexible stereo/mono/bridge modes for professional live sound or installation use. |
 |
PROTECTION
Internally, a full suite of protection circuitry includes thermal, over-current, DC, short circuit protect and power on/off mute. This level of protection ensures long term system reliability and peace of mind should the worst ever happen.
Front panel LEDs also keep the sound engineer well informed with fault, peak, and signal LEDs.
The variable speed fans keep the amplifier rack quiet when not in use - and cool while its running at high volume.
|
STABLE DOWN TO 2 OHMS Stable down to 2 Ohms (*except DP-4030) and with huge power output. |
 |
MODES AND SWITCHES
The DP Series feature stereo, bridge and mono modes. Use in bridge mode with an individual high-powered subwoofer or use a single DP to power your whole sound system equally.
Mono mode saves external cabling by splitting a single input to feed both channels of the amplifier.
In addition, gains can easily be controlled by the rear panel gain switch. This allows for installation into almost any rig or venue.
The DP-2200 features XLR inputs with a maximum input level of +22 dBu, allowing for integration with any typical professional audio system.
DESIGN
The 1U design allows for powerful systems to be configured in extremely confined spaces. In the tour rack or the amp room, DP delivers reliable power from a small box.
Lightweight, powerful, and portable. It's that simple!
-
FRONT
-

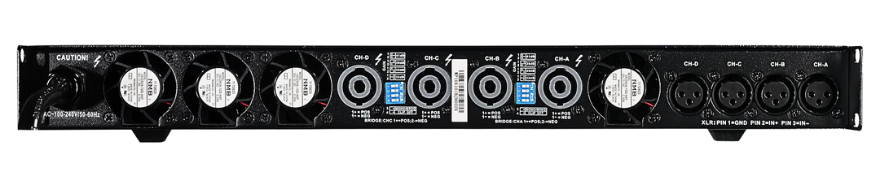

REAR
Stable down to 2 ohms
Need to drive multiple loudspeakers in a larger system?
DP series amplifiers are stable down to 2Ω, allowing for daisy-chaining of 8Ω or 16Ω loudspeakers.
| Product Name | Wharfedale Pro DP2200 2 channels with 24 dB Power Amplifier |
|---|---|
| Weight | 9.30 Kg |
| 4 Ω x 2 Stereo Power Output | 2 x 3400 W |
| 8 Ω x 2 Stereo Power Output | 2 x 2000 W |
| 8 Ω Stereo Power Output | 1 x 6800 W |
| Frequency Response | Typical value:+0,-0.5 dB (10% Rated Power,20 Hz-20 KHz,8 Ω) |
| Topology | Class D |
| Sensitivity | 41/38/35/32 dB |
| Voltage Gain | 41 dB |
| Slew Rate | >50 V / us |
| Crosstalk | <-90 dB |
| S/N | >109 dB |
| Distortion (1 W) | <0.02% |
| Damping Factor | >5000 |
| Front panel | AC Switch, CH and CH2 gain knobs |
| Rear Panel | Parallel, Stereo & Bridge mode Switch, Limiter switch |
| Type Of Protections: | Thermal protect, Over-current protect, Output DC protect Output Short Protect |
| Indicators | Power, Protect, Signal, Limiter |
| Cooling | Variable Speed Fan |
| Dimensions | 45x485x370 mm |
| Package Weight | 10.8 |
| Manufacturer | Wharfedale |
| Color | Black |
| Country of Origin | United States |
