Wharfedale Pro WPR-26 MKII Loudspeaker Switching System
Key Feature Of Wharfedale Pro XO-206
-
➤ Switch up to 6 speaker pairs from 2 dual-channel amplifiers.
-
➤ High-power relays handle over 1000 W safely.
-
➤ Front panel display with mute and channel control.
-
➤ IR remote control with 15 m range.
-
➤ One-pair active protection prevents amp overload.
PRODUCT OVERVIEW
Wharfedale Pro WPR-26 MKII

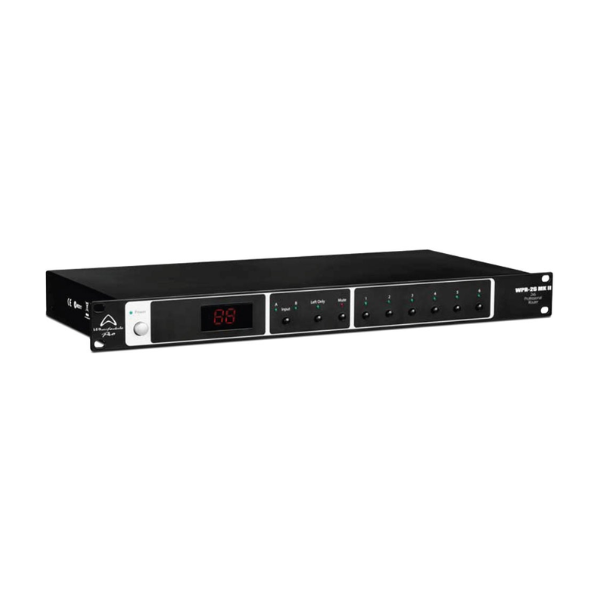

The WPR-26 MKII is a high-quality, remote-controlled loudspeaker switching system suitable for comparing passive loudspeakers and power amplifiers in retail and demonstration environments. The WPR-26 MKII helps create a perfect demo environment.
|
The WPR-26 MKII is a great upgrade to make passive loudspeaker demonstrations much more professional. 2 dual-channel power amplifiers can be connected as sources, and 6 pairs of passive loudspeakers can be connected as destinations. High-power-handling relays (1000W+) allow you to switch between sets of speakers without having to reroute signal cables. |
 |
Keep an Eye on Things.

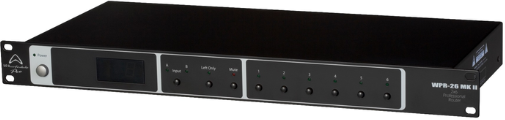

A front panel display gives visual feedback from the WPR-26 MKII, including which input is selected and which destination loudspeakers are active. There is also a facility to mute all devices and use the left input channel only. The WPR-26 MKII is designed to allow only one active destination to avoid overloading the source amplifier with low impedance loads.
 |
 |
|
Control Easily switch between up to six speaker pairs from two amplifiers using high-power relays built to handle over 1000 W. The front panel display provides a clear status with mute and channel control options for smooth operation. Designed for demo rooms and retail spaces, it eliminates the need for messy re-cabling. With precise switching, it delivers reliable performance even under demanding audio conditions. |
Convenience Operate effortlessly with the included IR remote, offering up to 15 m range. Built-in protection ensures only one speaker pair is active at a time, safeguarding your amplifier from overload. The compact design makes integration simple in any setup. A 6 m receiver cable adds flexibility, allowing the system to be controlled from a distance with ease. |

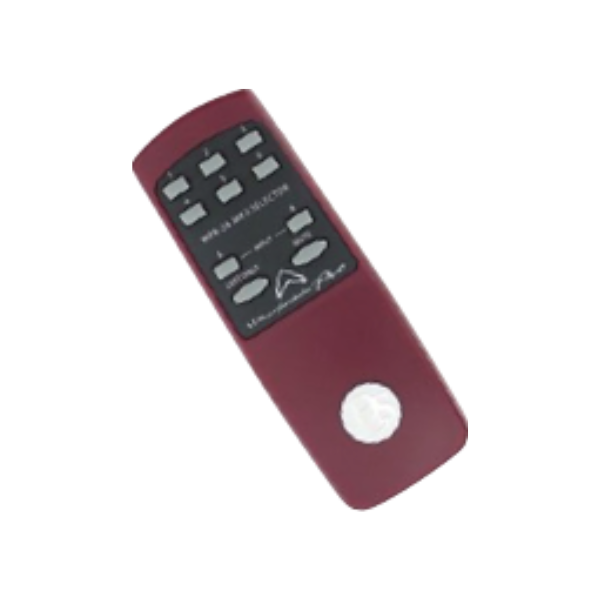

Control It Up To 15m Away.
An included IR remote control allows a demonstrator or customer to effortlessly switch between amplifiers and loudspeakers while in an optimal listening position. The IR receiver has an additional 6 m long cable that enables the equipment rack to be kept away from the demonstration area
Connections
2 dual-channel power amplifiers can be connected as sources, and 6 pairs of passive loudspeakers can be connected as destinations. High-power-handling relays (1000W+) allow you to switch between sets of speakers without having to reroute signal cables. All connections are made by sturdy red and black coded binding posts.
| Product Name | Wharfedale Pro WPR-26 MKII Loudspeaker Switching System |
|---|---|
| Weight | 9.21 Kg |
| Frequency Response | +/-0.01dB |
| Power Capacity | AC 100-240 50/60Hz <10w |
| Sensitivity | >67dB |
| Manufacturer | Wharfedale |
| Color | Black |
| Country of Origin | United States |
