PRODUCT OVERVIEW

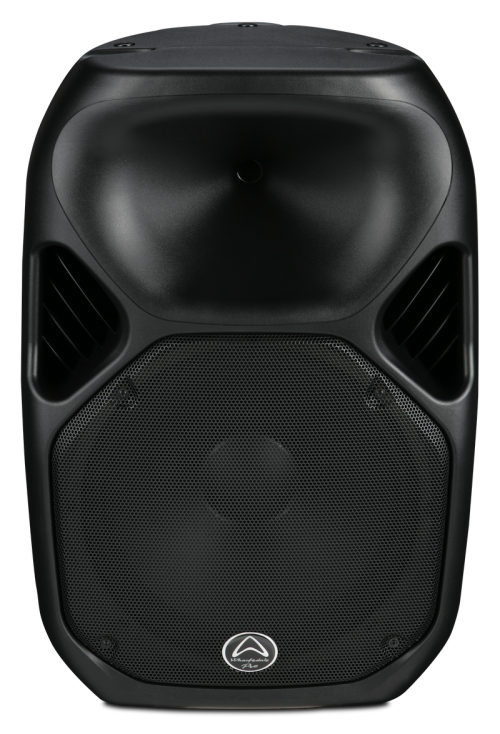

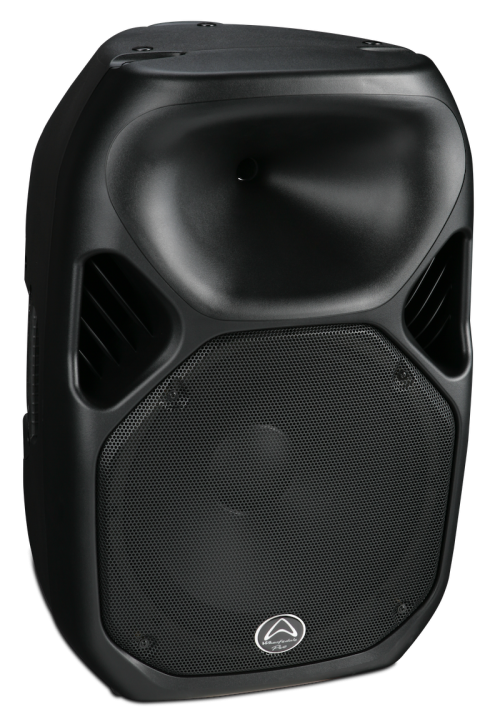

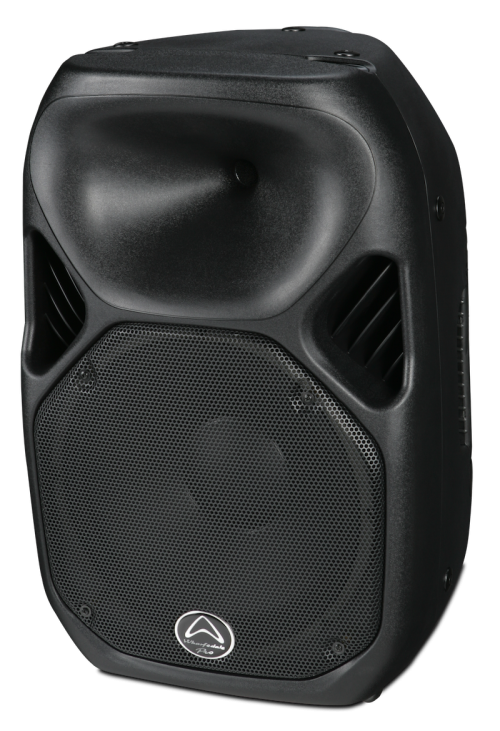

Wharfedale Pro TITAN AX15

The all-new AX15 active loudspeaker now features our cutting-edge 6-position DSP engine and all-new HF and LF drivers. No other competitive model features such powerful and effective DSP or such advanced transducers.

Rated at 840 watts peak and with 129 dB max SPL, it’s an ideal solution for small- to medium-sized venues.

We have also tweaked the laminar rib cabinet structure to improve structural strength for durability and acoustic performance. TITAN AX15 raises the bar for portable PA and is built to last.

IRIS X Driver Technologies The coil size and electrical sensitivity of a loudspeaker transducer are critical to its performance. Titan AX loudspeakers now include our proprietary IRIS X design, which delivers increased coil radius and increased electrical sensitivity. The radius of the coil ensures smooth heat dissipation during prolonged high-volume use, while the increased electrical sensitivity ensures that the transducer converts as much electrical power into sound output as the laws of physics allow.

THE POWER

The AX12 is a bi-amplified loudspeaker. Wharfedale Pro engineers have painstakingly created two discrete power amplifiers that are perfectly matched for the HF and LF transducers. Using Class D topology, these amplifiers not only deliver the continuous power to please the crowd, but they also handle the transients, which ensures an impressive dynamic range.

Convenient Mixer Control

For convenience, TITAN AX15 features a versatile two-channel mixer on the rear panel. The first channel of this mixer allows users to toggle between microphone and line-level inputs. A balanced XLR output provides an option to send the mix back to additional mixers, monitors, or speakers.

The Fittings

On the bottom of the TITAN AX15 is a convenient built-in pole mount socket that is used for easy mounting on a standard 35 mm diameter speaker stand pole.

Cord wrap and cable anchor features are also molded into the enclosure. M6/M8 threaded rigging points are provided for a variety of safe flying configurations, with four of these inserts available, bottom-mounted, in an OmniMount® bracket footprint.

Key Features

• 420 watts programme / 840 watts peak

• New IRIS X HF Drivers have been honed acoustically for high-frequency detail and power

• New  3″ voice coil LF Drivers reject moisture for resistance in all environments

• New Proprietary 100° x 80° Hybrid Symmetry Horn design

• New category-leading DSP functions

• 129 dB Max SPL

• New tweaked laminar rib structure

• Integral mixer functions

• Class D Bi-amplified

• Tough, yet lightweight, dynamic polypropylene cabinet with rubber-padded handles

• 10 x M8 rigging points and integral tripod stand adapter

• Rugged protective grille and top-stacking receptacles

• Trapezoid design for arrays as well as stage monitor applications

• Titan tour bags available
