Key Features Of The Wharfedale Pro SL824USB

➤ 12-channel mixer with phantom-powered mic preamps.
➤ Built-in USB interface (2-in / 2-out, 16-bit/48 kHz).
➤ 3-band EQ with high-pass filters on mono channels.
➤ 16-effect DSP with dedicated FX send.
➤ Dual AUX sends with stereo return and PFL on all channels.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

PRODUCT OVERVIEW

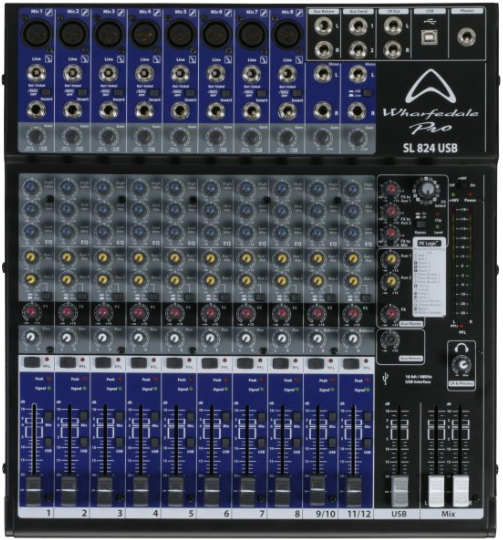

Wharfedale Pro SL824USB

The SL 824 mixer is a studio/live mixing console with built-in full-duplex USB interfacing. Designed to cater to a wide range of mid-format mixing duties, the SL 824 includes many features suited to both live sound and home studio applications.

Flexible USB Recording

A high-quality class-compliant 2-input 2-output 16-bit/48 kHz USB interface is featured on all models, with larger models featuring a flexible record bus and dedicated return channel that is great for live and home recording.

Functionality

Equipped with a 16-effect DSP processor and dedicated FX send, this mixer offers extensive sound-shaping capabilities. Additional flexibility comes from dual AUX sends, stereo return, and PFL on all channels, making it ideal for live and studio applications.

Studio-Grade Connectivity

Studio-grade microphone preamps are used throughout the range and have balanced XLR inputs, with all channels also offering balanced/unbalanced TRS line-level connectivity. In addition, all of the mono channels on larger models have a TRS insert point.

Shape your sound

An ultra-musical 3-band EQ is available on all channels, with an additional high-pass filter on the mono channels. A built-in FX processor with 16 presets gives you unlimited creative potential and is supplemented by a dedicated FX send and auxiliaries.

Features

The Wharfedale Pro SL824USB is a versatile 12-channel audio mixer featuring phantom-powered microphone preamps and a high-quality 3-band EQ with high-pass filters on mono channels. It includes a built-in USB interface supporting 16-bit/48 kHz audio for seamless digital recording and playback.

Key Features

8 Inputs
4 Outputs
Full Duplex 2 In/2 Out 16-Bit 48 kHz USB Interface
Dedicated USB Recording Bus (Excluding SL 424)
Switchable Line/USB Return Channels (Excluding SL 424)
Studio Grade Phantom Powered Microphone Pre-Amps
Ultra Musical 3-Band EQ with High-Pass Filters
Built-In Digital FX with Dedicated Send
2 Auxiliary Sends (1 Send on SL 424)
Dedicated Stereo Return with Level Control
Pan and Balance Controls
Master Outputs with XLR and TRS Connectors
PFL for All Channels
Control Room and Headphone Outputs
Headphone output

More Information
Product Name	Wharfedale Pro SL824USB 12 Channel Audio Mixer
Weight	5.20 Kg
Configuration	12 - Channels
Frequency Response	20Hz~20kHz ±2dB
Signal-to-Noise Ratio	127dBu ±5dBu Mic Pre Equivalent Input Noise
FX	16x Effects: (1)Hall1 (2)Hall2 (3)Room1 (4)Room2 (5)Room3(6)Platereverb1 (7)Platereverb2 (8)Platereverb3 (9)Chorus(10)Flange (11)Delay1 (12)Delay2 (13)Chorus/Room1(14)Chorus/Room2 (15)Bypass (16)Rotaryspeaker
EQ	3 Band with HPF
USB	16bit / 48kHz
Phantom Power	Yes
Input	10 x XLR, 12 x 6.3mm Jack
Display	12 Segment Level LED with power and Phantom Power indicator
Dimensions	80mm x 400mm x 369mm
Manufacturer	Wharfedale
Color	Black
Country of Origin	United States
