Wharfedale Pro SL1224USB 16 Channel Audio Mixer
Key Feature Of Wharfedale Pro SL1224USB
-
➤ 16 channels with 12 mic/line inputs and 2 stereo inputs.
-
➤ Built-in 2-in/2-out USB interface for easy recording/playback.
-
➤ Integrated 16-preset digital effects processor.
-
➤ Multiple master outputs with XLR and TRS connectors
-
➤ 3-band EQ and high-pass filter on each channel for precise sound control.
PRODUCT OVERVIEW

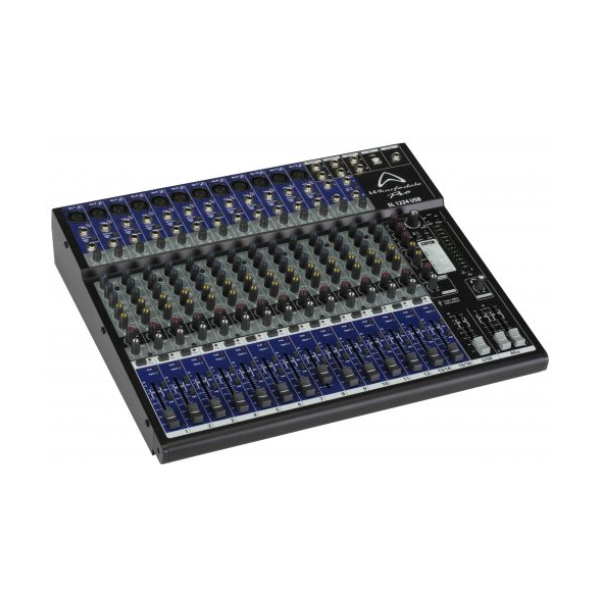

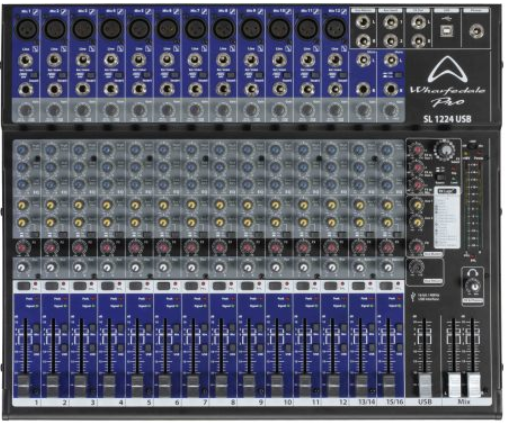

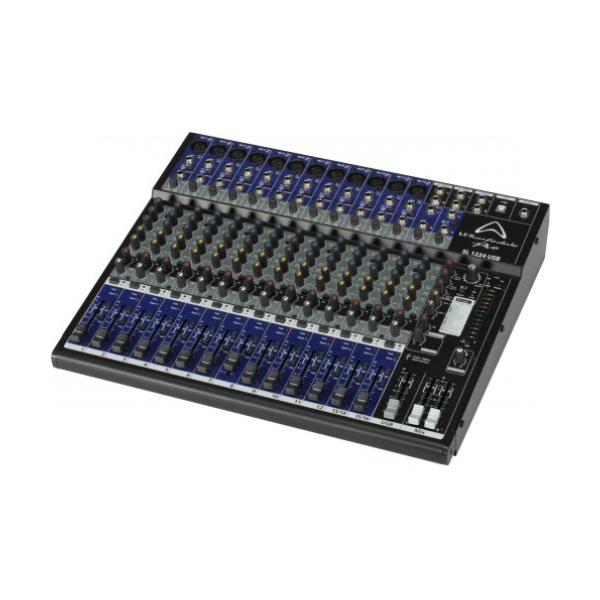

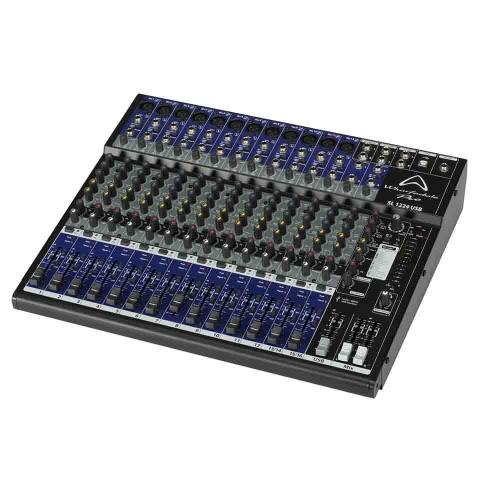

Wharfedale Pro SL1224USB
The Wharfedale Pro SL1224USB mixer offers extensive connectivity options, featuring 16 channels, including 12 microphone/line inputs and 2 stereo inputs. This flexibility allows seamless integration with a variety of audio sources such as microphones, instruments, and playback devices, making it suitable for both live performances and studio environments. The versatile input configuration ensures compatibility with diverse setups, providing users with ample options for sound mixing and routing.
|
The SL 1224 mixer is a studio/live mixing console with built-in full duplex USB interfacing. Designed to cater for a wide range of mid-format mixing duties, the SL 1224 includes many features suited to both live sound and home studio applications. A high-quality class-compliant 2-input 2-output 16-bit/48 kHz USB interface is featured on all models, with larger models featuring a flexible record bus and dedicated return channel that is great for live and home recording. |
 |
Sound Control
Each channel of the SL1224USB is equipped with a 3-band equalizer and a high-pass filter, enabling precise tone shaping and feedback control. This feature empowers users to fine-tune the audio signal to fit the acoustics of the environment or specific performance needs. The inclusion of these controls enhances clarity and reduces unwanted frequencies, making it easier to achieve professional sound quality across diverse applications.
 |
 |
|
USB Interface Equipped with a high-quality, full-duplex 2-in/2-out USB interface, this mixer facilitates smooth digital audio streaming to and from computers. Supporting 16-bit/48 kHz resolution, it allows users to record directly into digital audio workstations or play back audio from a computer effortlessly. This USB connectivity streamlines the workflow for recording, podcasting, and live streaming applications, eliminating the need for additional audio interfaces. |
Effects Processor The mixer includes a built-in digital effects processor with 16 preset effects, accessible via a dedicated effects send control on each channel. These effects range from reverb and delay to modulation, providing creative options that enrich live performances or recordings without the need for external processors. The integrated effects system adds versatility and depth to the sound, enhancing the overall audio experience. |
Output Flexibility
For output, the Wharfedale Pro SL1224USB offers robust master outputs with both XLR and TRS connectors, ensuring reliable and high-quality signal transmission to various amplification or recording devices. This wide range of output options makes the mixer compatible with professional PA systems, studio monitors, and other audio gear, ensuring seamless integration in almost any audio setup.
Key Features
-
18 Inputs (12 mic/line, 2 x stereo plus 2 aux)
-
4 Outputs
-
Full Duplex 2 In/2 Out 16-Bit 48 kHz USB Interface
-
Dedicated USB Recording Bus (Excluding SL 424)
-
Switchable Line/USB Return Channels (Excluding SL 424)
-
Studio Grade Phantom Powered Microphone Pre-Amps
-
Headphone output
-
Ultra Musical 3-Band EQ with High-Pass Filters
-
Built-In Digital FX with Dedicated Send
-
2 Auxiliary Sends (1 Send on SL 424)
-
Dedicated Stereo Return with Level Control
-
Pan and Balance Controls
-
Master Outputs with XLR and TRS Connectors
-
PFL for All Channels
-
Control Room and Headphone Outputs
| Product Name | Wharfedale Pro SL1224USB 16 Channel Audio Mixer |
|---|---|
| Weight | 6.85 Kg |
| Configuration | 14 - Channels |
| Frequency Response | 20Hz~20kHz ±2dB |
| Impedance | 4Ω |
| Signal-to-Noise Ratio | -127dBu ±5dBu Mic Pre Equivalent Input Noise |
| FX | 16x Effects: (1)Hall1 (2)Hall2 (3)Room1 (4)Room2 (5)Room3(6)Platereverb1 (7)Platereverb2 (8)Platereverb3 (9)Chorus(10)Flange (11)Delay1 (12)Delay2 (13)Chorus/Room1(14)Chorus/Room2 (15)Bypass (16)Rotaryspeaker |
| EQ | 3 Band with HPF |
| USB | 16bit / 48kHz |
| Phantom Power | Yes |
| Input | 12 x XLR, 14 x 6.3mm Jack |
| Display | 12 Segment Level LED with power and Phantom Power indicator |
| Dimensions | 80mm x 400mm x 475mm |
| Manufacturer | Wharfedale |
| Color | Black |
| Country of Origin | United States |
