PRODUCT OVERVIEW

Wharfedale Pro Q-230

The Q Series equalizers have been designed for complex tonal correction and elimination of feedback in difficult acoustic environments, suitable for improving the intelligibility of an installed system or taming feedback in a portable live sound reinforcement system.

EQ with Constant Q Constant Q filters mean that each band's bandwidth remains the same irrespective of gain. This means the deep notches sometimes required to remove feedback from a challenging venue remain transparent, and your sound remains full and clear.

Huge Headroom

Sweepable 40 Hz–100 Hz 12 dB/oct HPF to protect LF drivers from over excursion and increase overall system headroom, reduce LF feedback, and improve vocal intelligibility.

Protect Your PA

Soft limit options on each model provide vital protection for your PA in case of sudden feedback or a sharp rise in volume. Levels can be safely monitored via the 4 LED output level meters plus the input clip indicator.

Connectivity

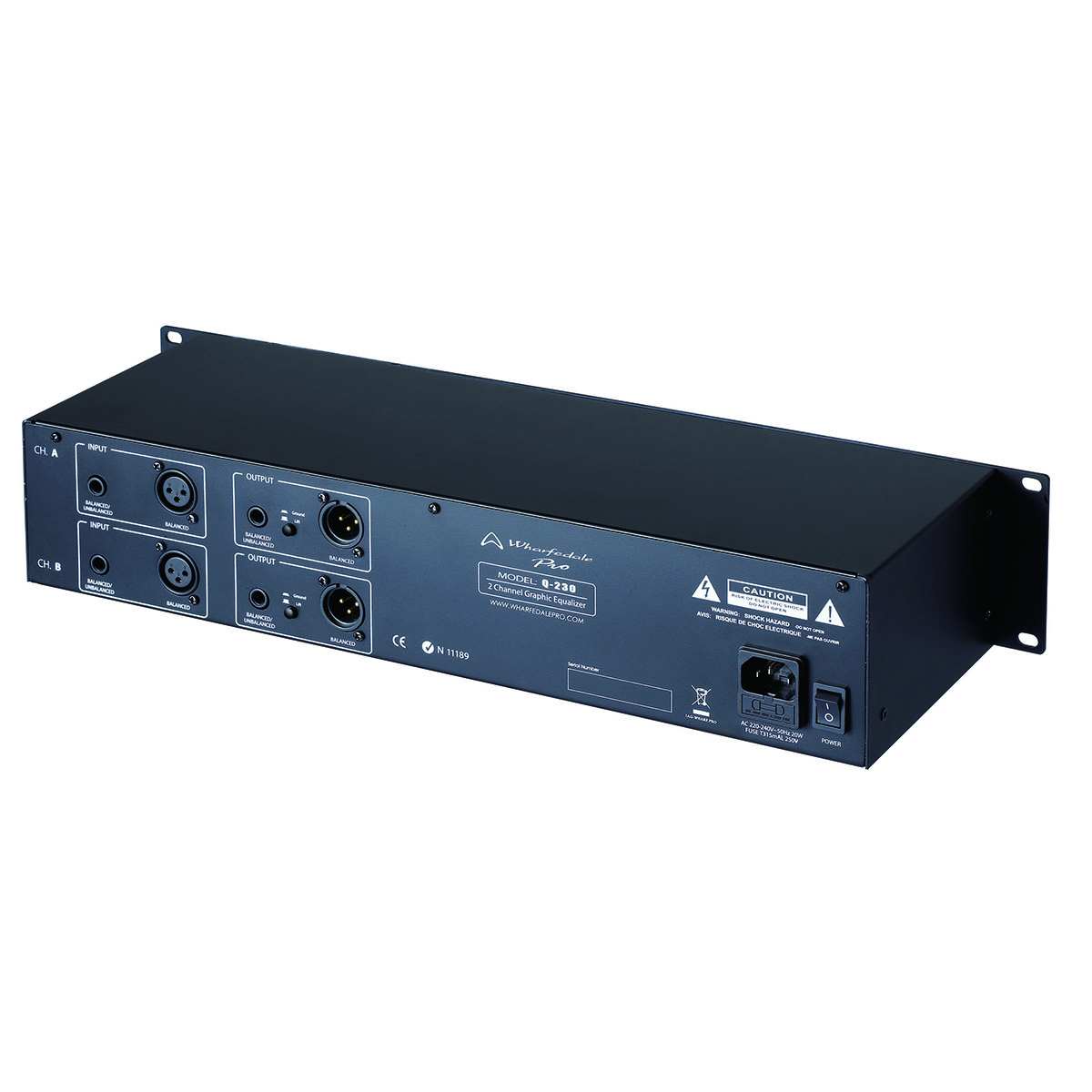

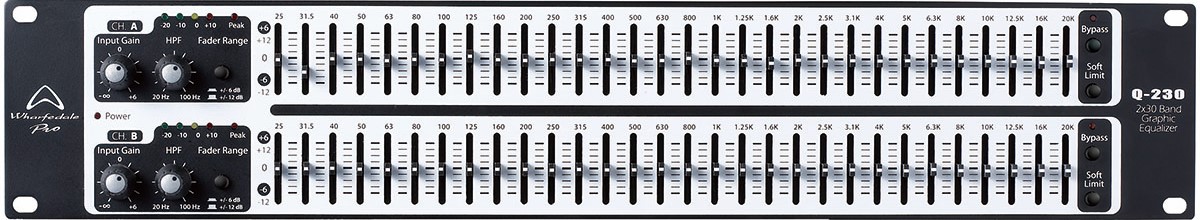

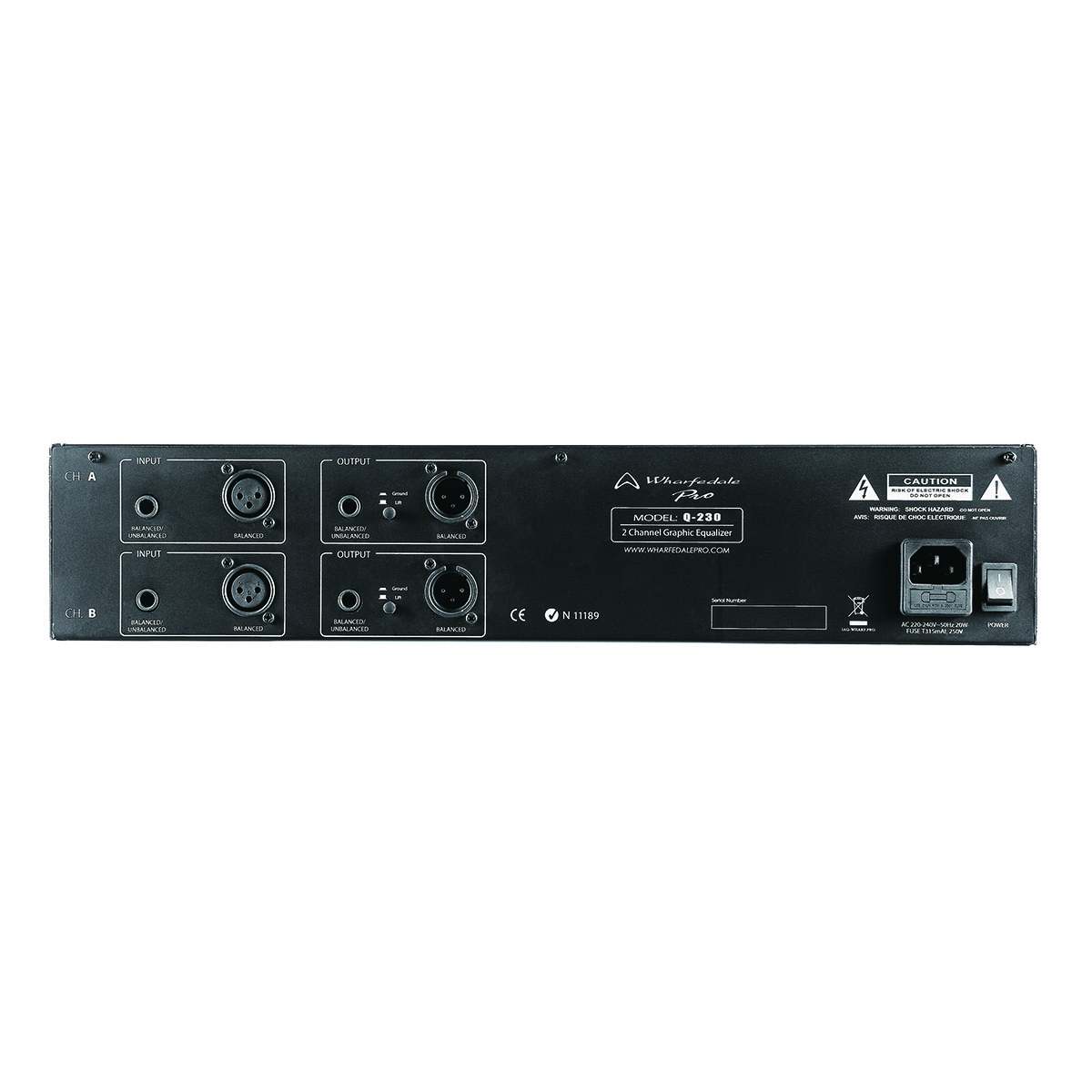

This equalizer offers versatile connectivity options, including balanced and unbalanced XLR and 1/4" inputs and outputs. Long-throw slide faders with bypass LED indicators make real-time adjustments simple and intuitive for professional audio applications.

Key Features

• Constant Q Filters

• Professional long-throw slide faders

• Switchable dB / 12 dB fader range

• Switchable 40 Hz 12 dB/Oct HPF

• Switchable bypass with LED indicator

• Sweepable -100 Hz 12 dB/oct HP HPF

• Built-in soft limit protection

• XLR/1/4” jack inputs/outputs

• Ground lift switch

• 4-segment level and clip LED display
