PRODUCT OVERVIEW

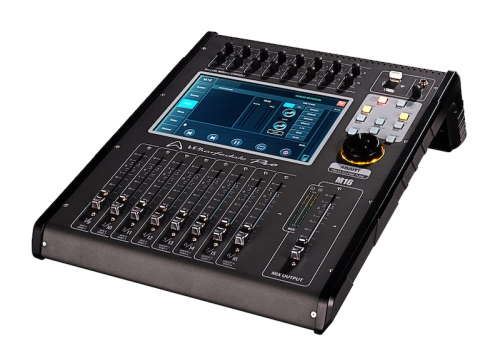

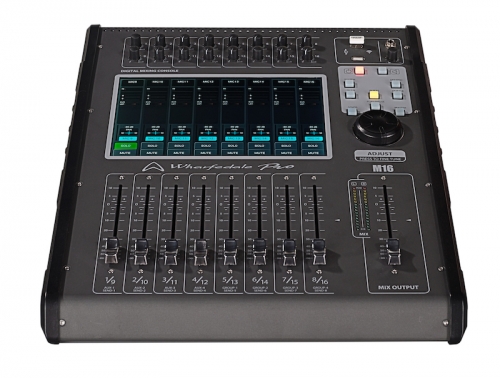

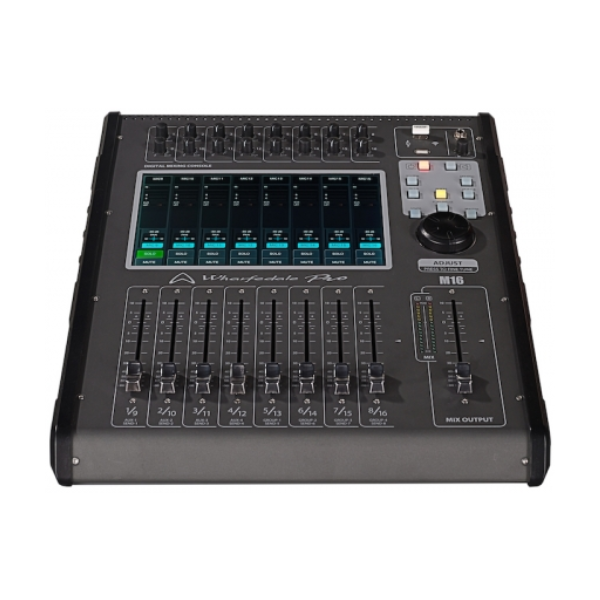

Wharfedale Pro M16

M16 is a unique and innovative multi-function digital mixing console, with many advantages such as its small size, lightweight construction, high-quality audio path, user-friendly interface, and a ‘class-leading’ premium touch-sensitive 10.1” screen. Using the 4th generation industrial floating-point SHARC processor and 24-bit/192 kHz AD/DA conversion, M16 delivers high-quality audio with a responsive feel.

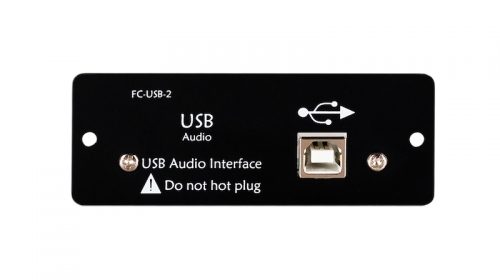

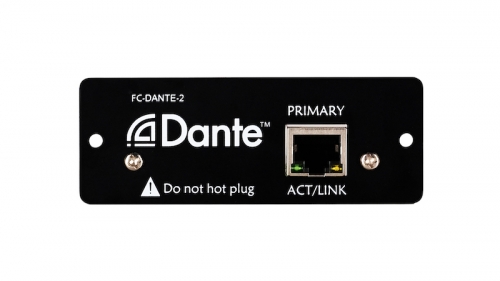

The custom layer, channel link, and mute group modes make it ideal for live performances, conferences, schools, churches, cultural auditoriums, weddings, concerts, homes, bands, multi-purpose halls, and other sound reinforcement systems. The system also includes WiFi interfacing, allowing the mixer to be controlled remotely with mobile devices. A rear panel expansion bay also allows for optional interface boards to be inserted. Currently, these include Dante, AES/EBU, and USB protocols. The 9 x 100 mm motorized faders make control simple, and custom layers can be created to make the M16 easy to use for the most inexperienced operator.

iPAD Control

M16 is supported by a free app for iPad.
This app gives comprehensive wireless control of the M16 along with input/output metering. It is invaluable when using the M16. However, because the app can be used in 'Offline mode,' it is a perfect tool for making setups without being connected to an M16.

Powerful

The Delta Series is constructed from plywood and features dual-angle pole mounts to ensure that your sound is aimed directly at the audience, not at the ceiling; with a Rhino Rock paint finish, it can also withstand all the endurance live sound brings.

Key Features

10.1" touch-sensitive screen

• The internal screen of the M16 is huge.

• The 1280 x 800 resolution makes navigation of the features inside M16 easy.

• The internal software is fast, making the experience responsive and intuitive.

• Every feature, every setting, and everything you need to control is all there under your fingers.

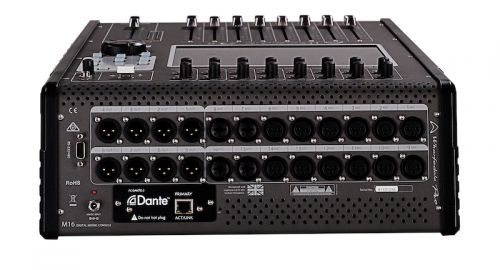

Around the back

• All connections are made on the rear panel.

• 16 x mic/line inputs

• 8 x assignable buss outputs

• 1 x optional expansion card slot

• 1 x RS-232/485 connector
