PRODUCT OVERVIEW

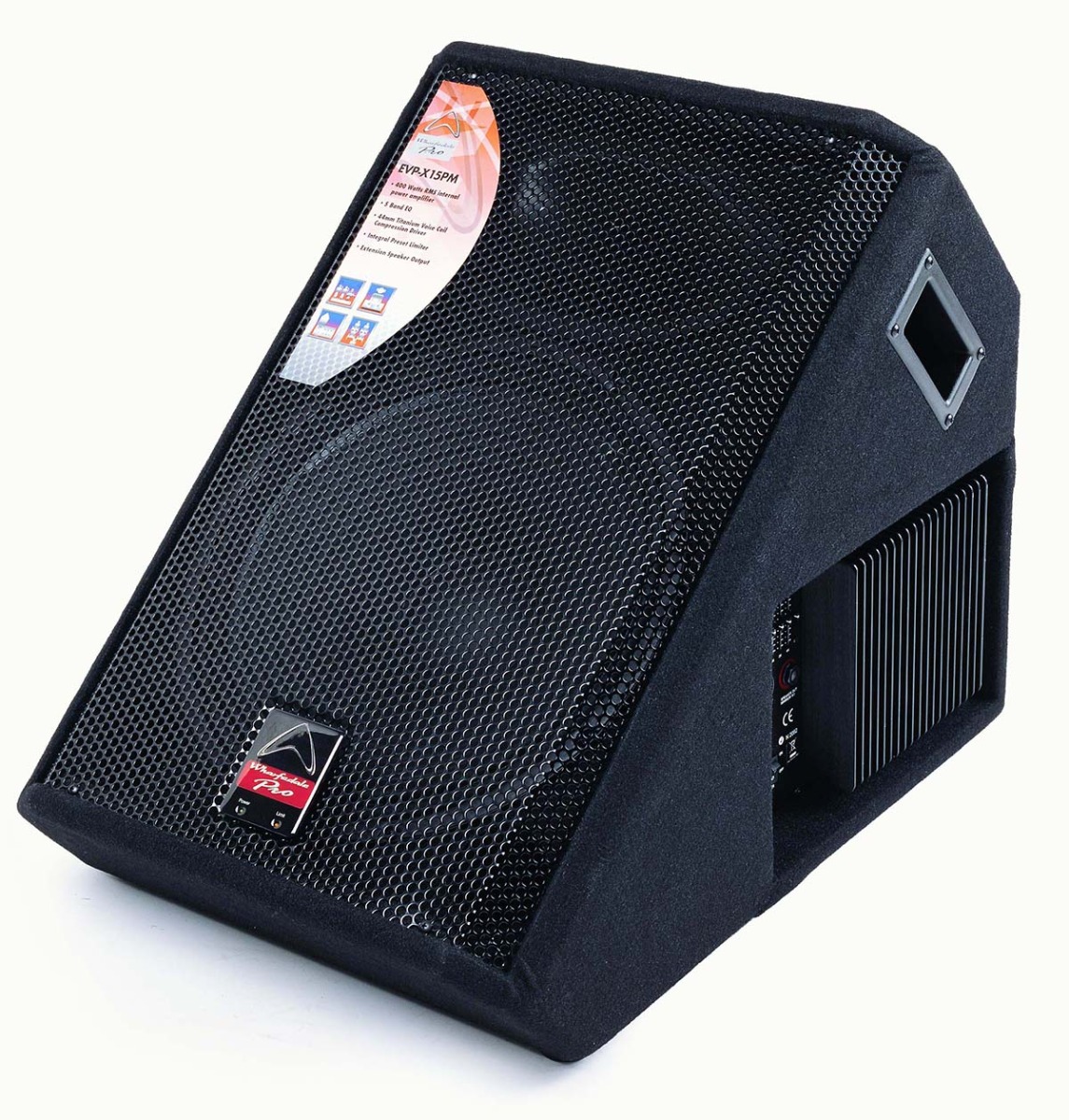

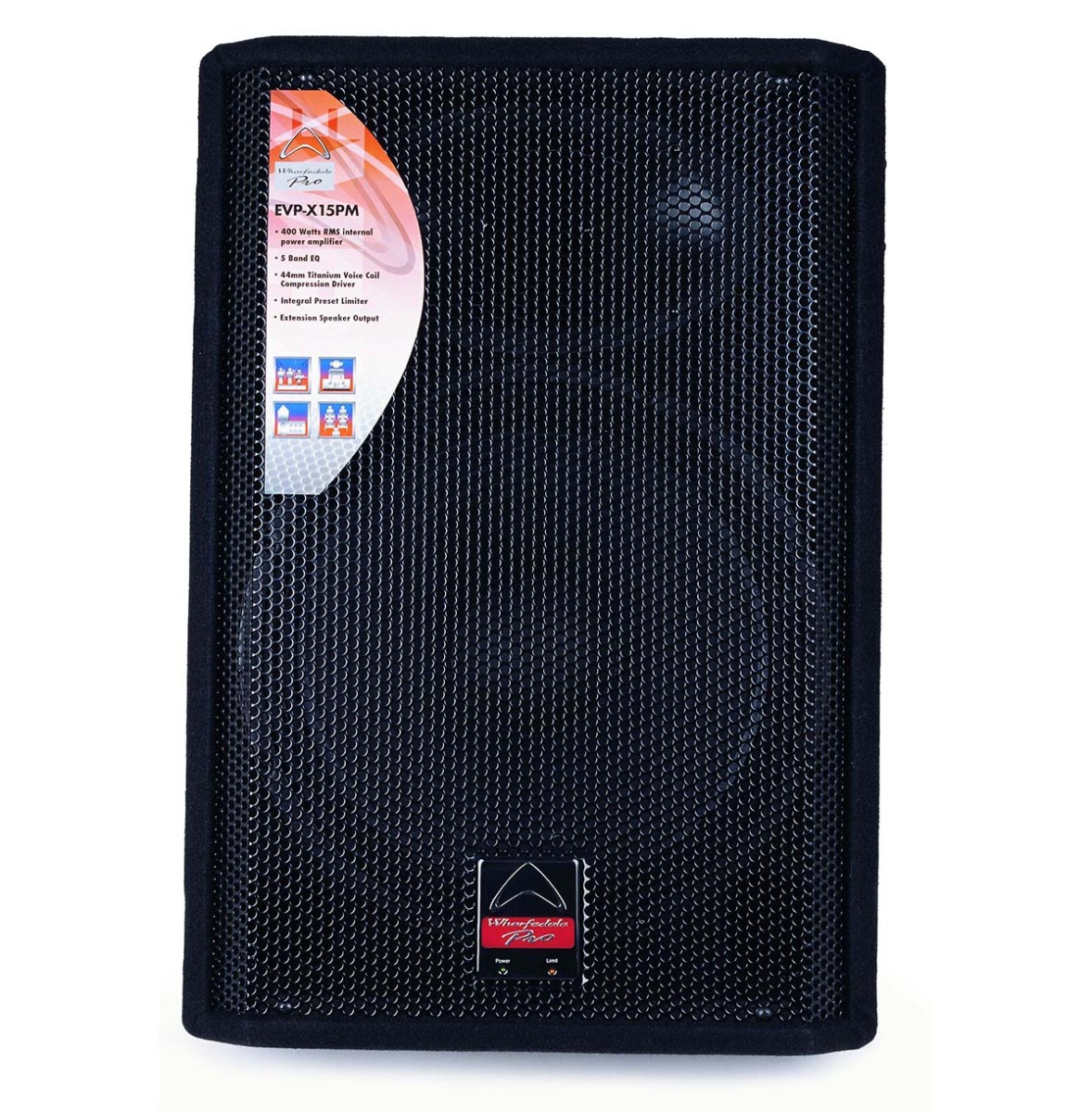

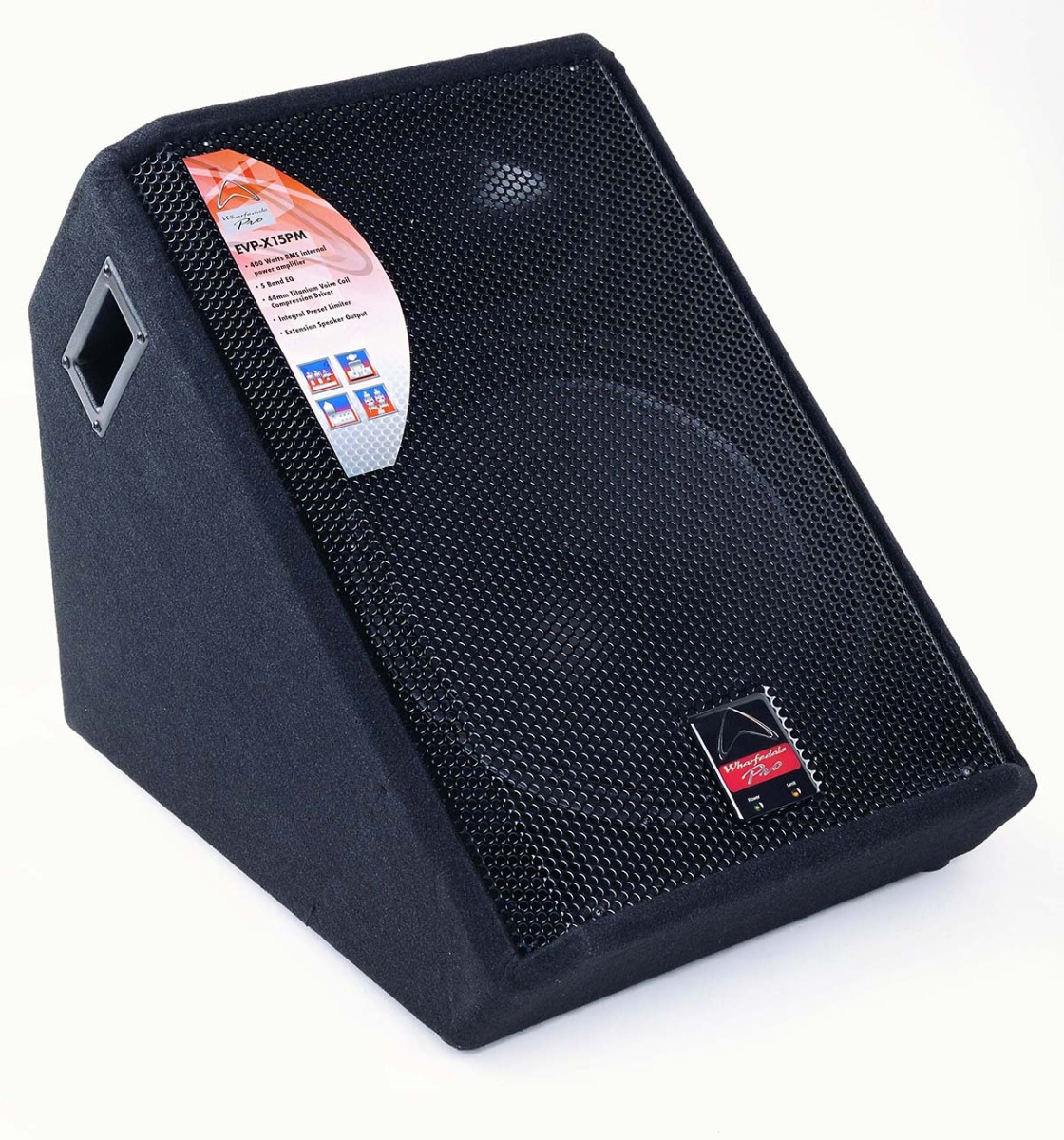

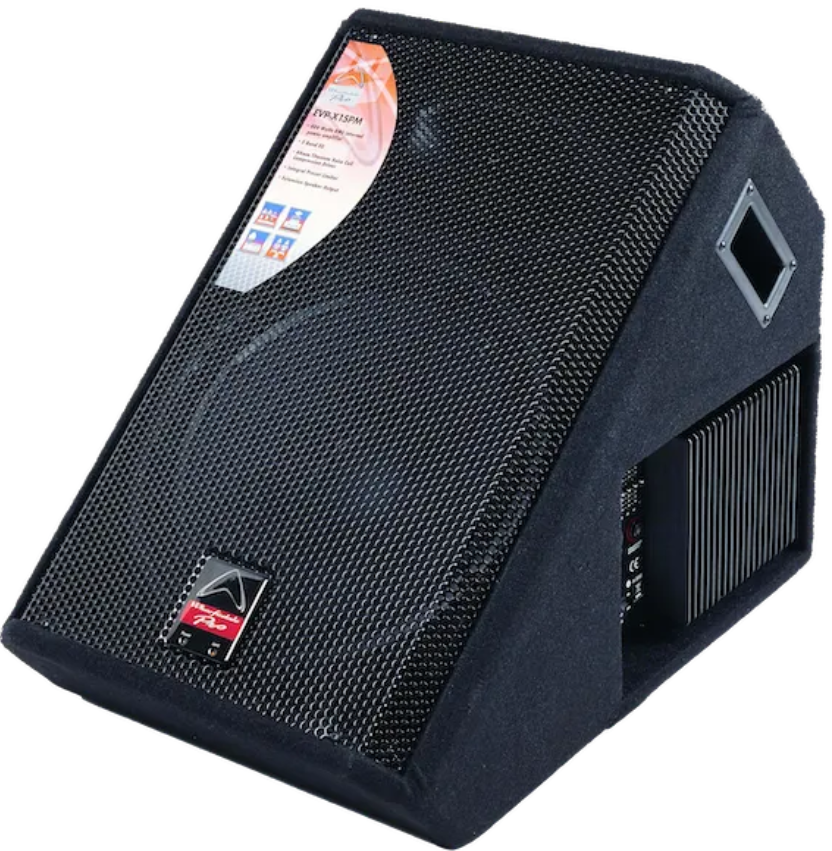

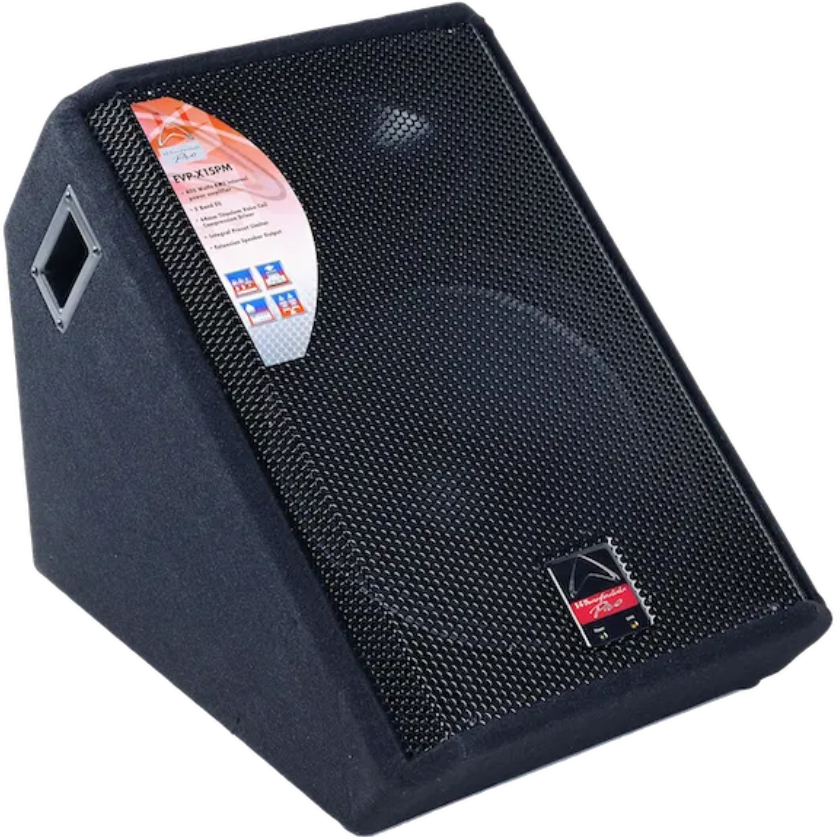

Wharfedale Pro EVP-X15PM

Delivering everything that made the EVP-X Series a best seller, the EVP-X15PM is built for the stage, with even more convenience. Complete with the same pro-tech drivers, elliptical waveguide horn technology, and of course, tonnes of power, the EVP-X15PM is also powered, without the need for an amplifier. Specially developed for on-stage monitoring, the amplifier module includes a 5-band EQ and a separate amplified output to connect to an additional stage monitor such as the EVP-X15M.

PROTECT Dynamic/AGC protection circuitry provides extreme protection at both the driver and the amplifier stages, so the EVP-XPM can be played at maximum levels over long periods without fear of system failure. The green LED on the front of the EVP-XPM illuminates when the AGC is activated, similar to the orange LED on the front of the amplifier.

Same power, no external amplifier

The power amplifier section of the EVP-XP series uses Class A/B topology and is designed to integrate seamlessly, giving the optimum smooth performance across the range. The EVP-X15PM model contains the higher-rated 400W continuous / 600W peak amplifier.

Control and Expand Your Sound

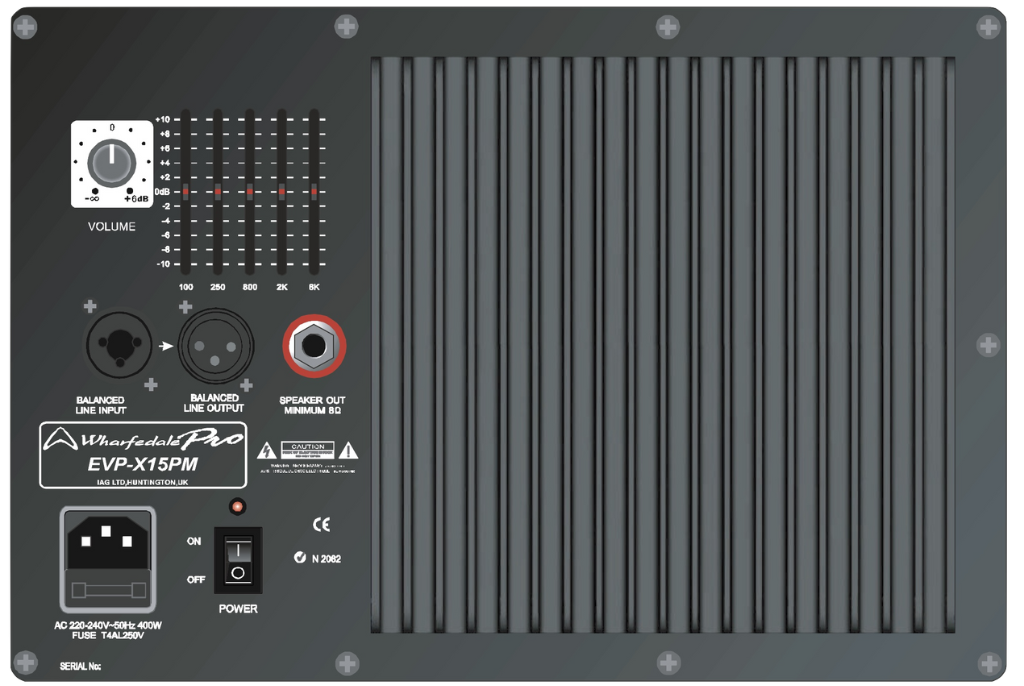

The EVP-X15PM features a 5-band graphic equalizer accessible on the side of the unit. This allows the user more control over feedback and unwanted noise when monitoring. Both loudspeakers also have the added benefit of a ‘Speaker Out’ output, which allows the user to add on or to ‘daisy chain a passive EVP-X12M / 15M into the system directly from the EVP-X15PM.

Key Features

• 90 x 60 Elliptical Wave Guide Horn with 1.75" (44mm) titanium diaphragm driver

• High power handling, high efficiency

• ProTech™ Driver

• 5-Band Graphic EQ

• XLR / Jack Combi Input

• XLR Output

• Powered output for an additional passive monitor

• Durable black carpet covering
