Wharfedale Pro EVO-X12 1x12" 300W Passive Speaker
Key Features Of The Wharfedale Pro EVO-X12 Speaker
-
➤ 12″ 2-way passive speaker with 1200W peak power handling.
-
➤ Durable MDF cabinet with tough Rhino Rock paint finish.
-
➤ 90° x 60° dispersion via elliptical waveguide for wide coverage.
-
➤ Dual Speakon and 1/4″ jack inputs for flexible connectivity.
-
➤ +3dB boost switch for enhanced output and clarity.
PRODUCT OVERVIEW
Wharfedale Pro EVX-X12
The EVO-X Series strikes the perfect balance between affordability and performance. Positioned between our Impact Series and the Delta Series of passive loudspeakers, EVO-X is a new multipurpose lineup of 8 models featuring many useful and practical design elements.
All models benefit from a hardwearing Rhino Rock paint finish and are visually enhanced with the iconic Wharfedale Pro ‘boomerang’ logo being engraved onto their surface. All models also feature practical 4-way handles to make transportation simple and pain-free.
|
Full-Hi-Firange models feature a unique +3 dB HF boost switch, allowing for quick, on-stage adjustments to the sound as the crowd grows. The 3 subwoofer options all have high-pass filter outputs, reducing onstage cabling and peripherals. Robust crossover designs, elliptical waveguides, and large voice coils ensure that the sound quality is as beautiful as the cosmetic design. |
 |
Iconic Boomerang
The surface of EVO-X is covered in our enhanced Rhino rock paint. This is durable and hardwearing and will protect the EVO-X throughout its life. The surface of EVO-X is also engraved with the iconic Wharfedale Pro boomerang logo. A logo that demonstrates sonic and hardware quality.
 |
 |
|
Tough MDF construction The cabinet is constructed of MDF. This solid, but still lightweight, material gives EVO-X rigidity and reduces any mechanical distortion that a lesser material may introduce. The MDF material also contributes to the overall tone of EVO-X. It delivers a warmth and roundness to the sound, making EVO-X a pleasure to listen to, even at higher volumes. |
90° x 60° Elliptical waveguides Along with the smooth sound characteristics, which are enhanced by the MDF construction, the EVO-X series also uses 90° x 60° elliptical waveguides. This waveguide delivers the directional dispersion needed for a variety of live applications and installations and directs the EVO-X’s IRIS X compression driver’s output to just where you want it. |
+3dB Boost Control

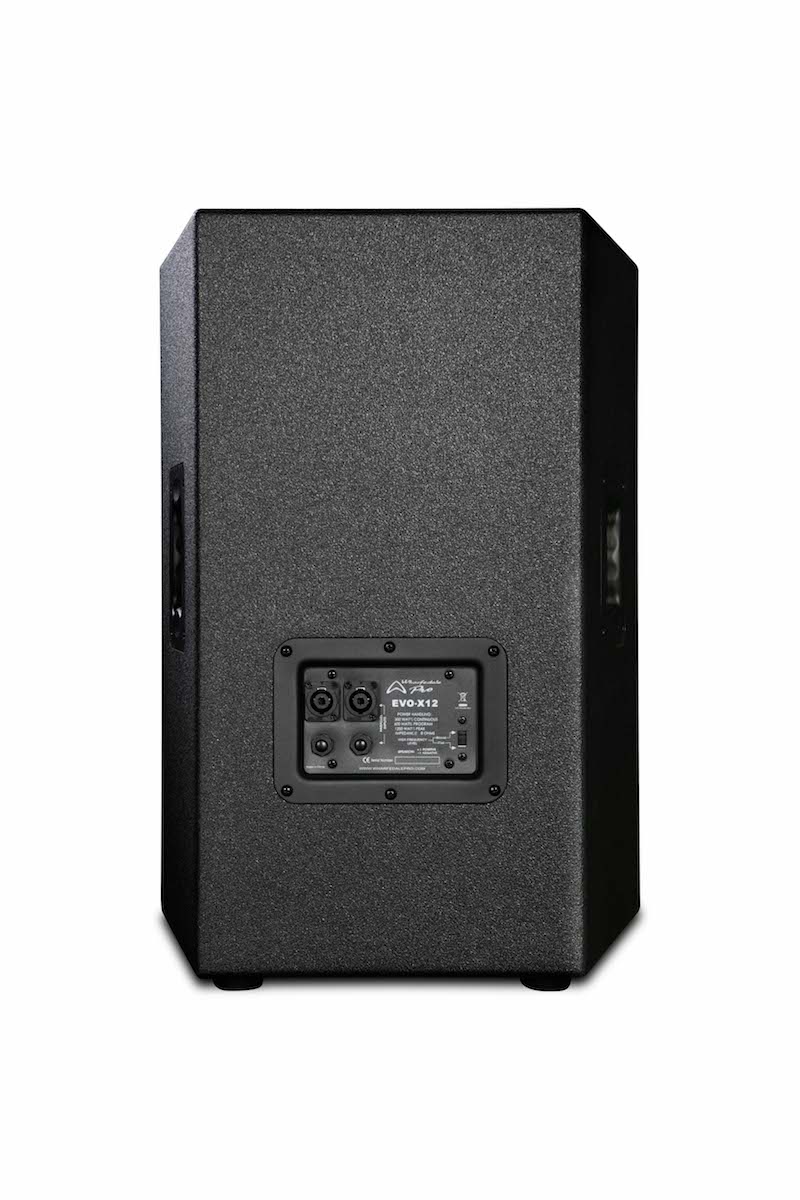

The full range and monitor models of the EVO-X series feature a handy +3 dB boost switch. This gives the output a little ’lift’ when needed, depending on the acoustics of the venue. Inputs are also versatile due to the inclusion of both NL4 (speakON compatible) connectors AND standard 1/4″ jack sockets. These features mean that EVO-X is simple to set up wherever the performance is taking place.
Key Features
-
2-way 12" Passive full range
-
MDF construction
-
Durable Rhino Rock paint finish
-
90° x 60° dispersion. Elliptical waveguide
-
2 x 4-way rubberised handles
-
Dual speakON-compatible and 1/4" jack inputs
-
Continuous 300w
-
Programme 600w
-
Peak 1200w
-
8Ω
-
+3 dB Hi-Fi boost switch
| Product Name | Wharfedale Pro EVO-X12 1x12" 300W Passive Speaker |
|---|---|
| Weight | 19.20 Kg |
| Configuration | 2-way |
| Frequency Response | 55Hz-20kHz |
| Power (RMS / Program / Peak) | 600w | 1200w |
| Impedance | 8Ω |
| Maximum SPL | 129dB |
| Nominal Coverage | 90° x 60° |
| Waveguide Type | Elliptical waveguide |
| Input | 2 x NL4 (speakON Compatible) + 2 x 1/4″ Jacks |
| Sensitivity | 98dB |
| Dimensions | 655mm *492mm *408mm |
| Package Weight | 22.4kg |
| Manufacturer | Wharfedale |
| Color | Black |
| Country of Origin | United States |
