PRODUCT OVERVIEW

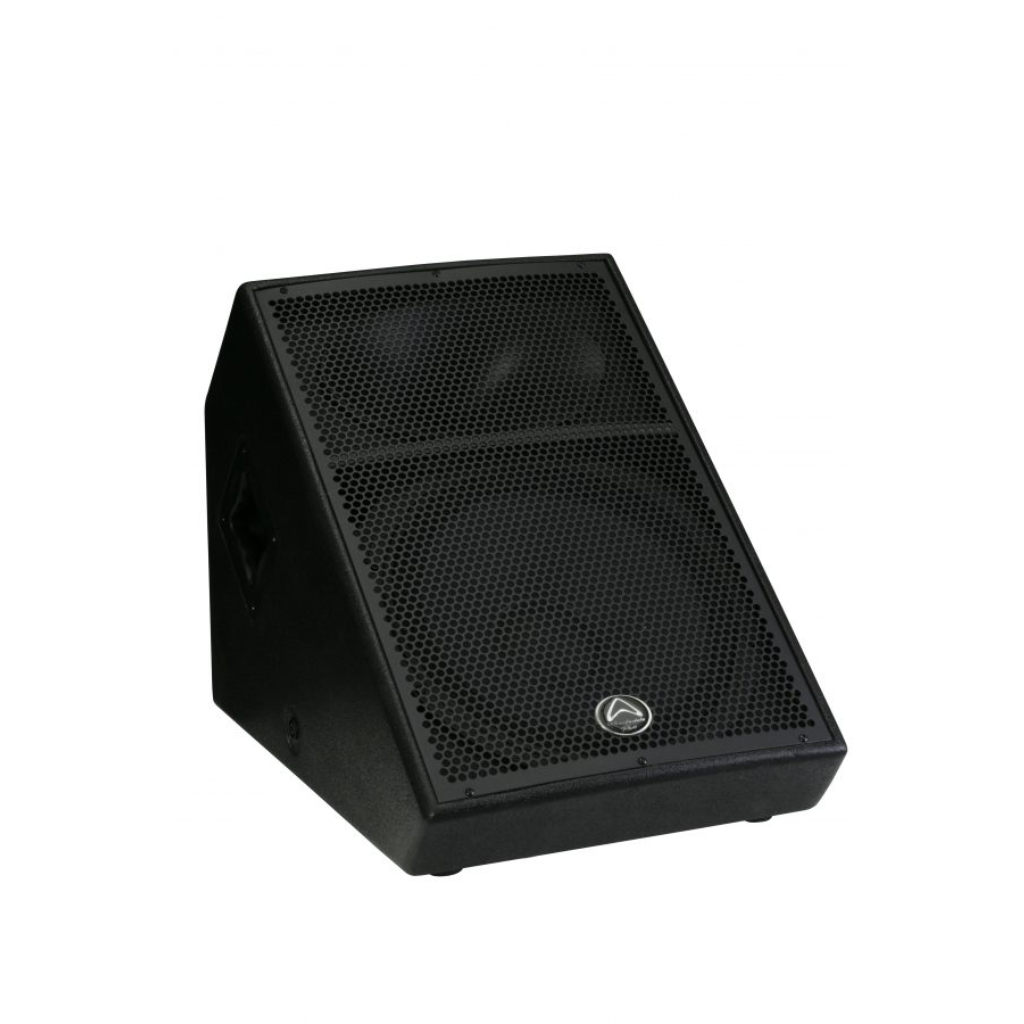

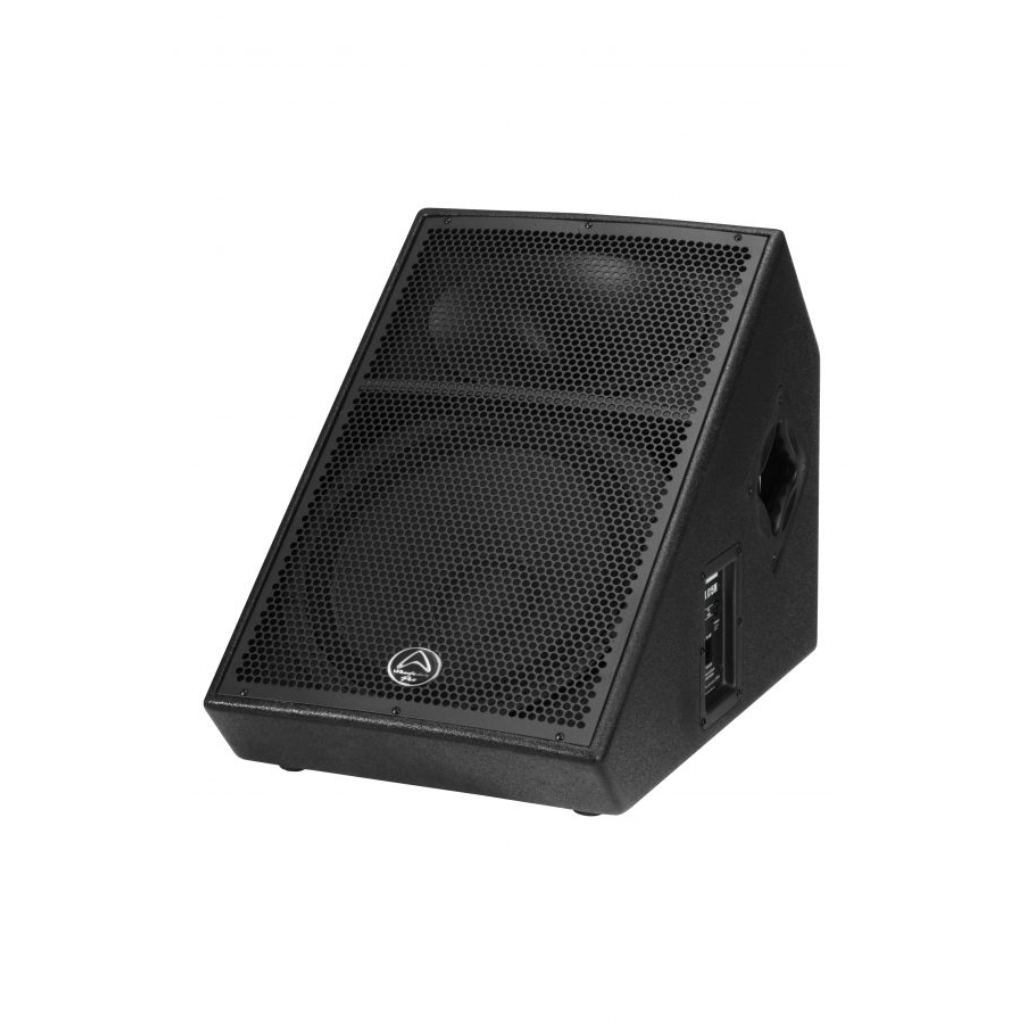

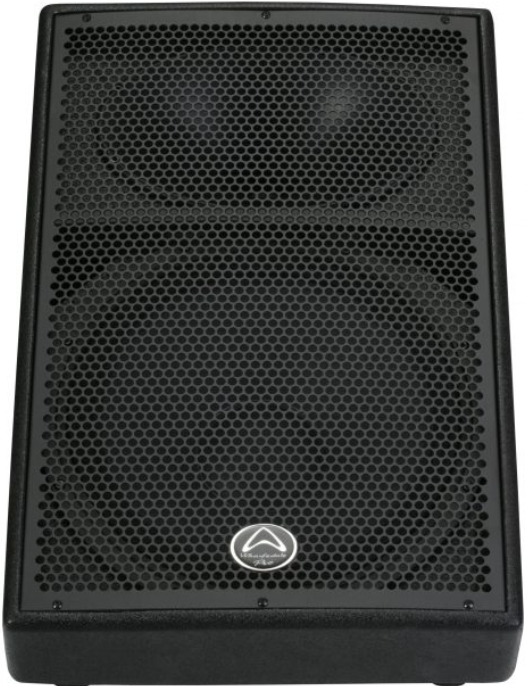

Wharfedale Pro Delta X15M

The new Delta X15M is instantly recognizable by the engraved iconic Wharfedale Pro ‘boomerang’ logo on its cabinet. The fresh cosmetic design, however, is not the only improvement the engineering team has made.

 Internally, Delta X15M has a new crossover design and construction. Using new component positioning and bracing, the sensitive crossover electronics have been re-engineered to improve long-term performance and reliability—even at the highest of volumes.

With panel switching, Delta X15M can operate in either Bi-Amp or Passive mode. This routing flexibility allows for Delta X systems to be refined using multiple amplifiers and external crossovers. Custom Wharfedale Pro transducers have also been selected. High-output, low-physical-distortion cast-frame woofers deliver unparalleled low-frequency response. Except the Delta X10, 2” titanium compression drivers are coupled to 90°x45° elliptical waveguides for impressive output level and smooth HF dispersion. With a full lineup of 9 new models, ranging from the 300w RMS Delta X10 to the 1600w RMS Dual Chamber 2 x 18” Delta X218 subwoofer, Delta X models are perfect for fixed installation and touring applications.

15MM RUSSIAN BIRCH PLYWOOD CONSTRUCTION

Delta X10 is made of premium Russian birch plywood. It is even more dense than MDF and creates an extremely strong and durable cabinet. Although not recommended, birch plywood is more tolerant in damp conditions. During construction, it is harder to cut but holds screws better than particleboard or MDF. This makes it ideal for flagship professional audio loudspeakers, which are to be used in extreme and critical environments.

NEW CROSSOVER DESIGN Internally, Delta X models have a new crossover design and construction. Using new component positioning and bracing, the sensitive crossover electronics have been re-engineered to improve long-term performance and reliability—even at the highest of volumes.

SOLID AS A ROCK As with all Wharfedale Pro PA systems, years of expertise are behind a loudspeaker built to last, thanks to our high standards of quality control. The Delta X series is coated in the highest quality Rhino Rock paint finish—a chip-resistant texture with a professional, discrete aesthetic—whilst being prepared for the rigors of life on the road.

BI-AMP AND PASSIVE MODES

In BI-AMP mode, two power amplifiers can be used. This gives you the advantage of being able to select the best power amplifier specifications for each driver inside the loudspeaker. In a BI-AMP configuration, an external crossover is used to separate the frequencies, and this splits the signal to the dedicated LF amplifier and the HF amplifier. This way, each amplifier is only working on the given frequency range and, in turn, is powering the corresponding driver inside the loudspeaker. In PASSIVE mode, a single amplifier can be used to power all drivers inside the loudspeaker. The full frequency range is put into the loudspeaker, and the loudspeaker’s internal crossover separates the frequencies, delivering the right frequencies to the right driver. In the example of a 2-way passive loudspeaker, this means that the single amplifier is powering both the HF compression driver and the LF transducer. The internal crossover takes care of both the frequency and power separation.

Features:

• 15" Floor monitor

• 3" LF voice coil

• 131 dB Max SPL

• Birch plywood construction

• Premium Rhino Rock paint

• 8Ω impedance

• 500w continuous

• 1000w programme

• 2000 W peak

• 2 carry handles

• Bi-amp and Passive modes
