Tascam ML-32D 32-channel Analog/Dante Converter

Actual Stock Can Be Confirmed After Placing the Order.

All Delivery times are estimated based on the official restrictions.

SKU

ML-32D

Be the first to review this product

$2,521 $2,401

Notify me when the price drops

Pay 4 interest-free payments of AED 421.00.Learn more

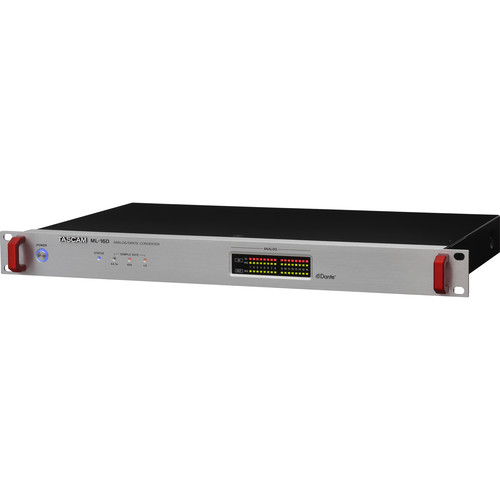

The ML-16D Dante / Analog Converter from Tascam is a Dante-focused converter designed to insert or extract analog audio into or out of a Dante (Digital Audio Network Through Ethernet) network using external breakout devices that utilize D-Sub format connectors.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

PRODUCT OVERVIEW

The ML-32D Dante / Analog Converter from Tascam is a Dante-focused converter designed to insert or extract analog audio into or out of a Dante (Digital Audio Network Through Ethernet) network using external breakout devices that utilize D-Sub format connectors.

The Tascam ML-32D has four D-Sub inputs and four D-Sub outputs, that can be used to connect several devices that utilize D-Sub connectors such as microphone preamplifiers, console mixers, audio interfaces, amplifiers, and other audio devices.

Furthermore, the Dante protocol provides uncompressed, multi-channel, low-latency digital audio over a standard Ethernet network and supports up to 1024 channels of 32-bit / 192 kHz audio over a Cat 5/6 Ethernet system.

Dante-focused interface for connection of external audio in or out of a Dante audio network.
32-channel analog line input and 32 analog line outputs (48 kHz / 96 kHz) using 8 D-Sub connectors.
Dual redundant Ethernet jacks which support both primary and secondary connections.
Up to 24-bit / 96 kHz quality.
LED display for signal level and overload per input/output channel.
Reference level dip switches for selectable dBu level metering.
Firmware updatable via Dante port.
AES67 and Revenna compatible.

More Information
Product Name	Tascam ML-32D 32-channel Analog/Dante Converter
Weight	3.50 Kg
Frequency Response	20Hz to 20kHz +0.1dB/–0.5dB
Power Capacity	22W
Impedance	10kΩ or higher
Dimensions	19.0" × 1.77" × 11.96" / 483 × 45 × 303.8 mm
Manufacturer	Tascam
Color	Black
Country of Origin	United Arab Emirates
