PRODUCT OVERVIEW

Introduction – The Wall M All‑in‑One LED Display

The Samsung The Wall M All‑in‑One MMF‑A Series (LHA15MMFRHS/EN) is a premium indoor LED display solution designed for professional signage, corporate environments, digital experience centres and meeting spaces. It combines high‑performance LED imaging with a fully integrated system that simplifies installation and operation, delivering impactful visual experiences without the complexity of traditional LED video walls.

Large-Scale 136-Inch Display Canvas

This model features a 136‑inch diagonal LED panel with a 1920 × 1080 (Full HD) native resolution, offering a large visual canvas ideal for presentations, digital signage, information boards and communal display applications. Such a size balances room presence with clarity in indoor environments where viewing distances vary.

MicroLED with Flip‑Chip RGB Technology

The Wall M uses Flip‑chip RGB LED technology for its pixel elements. This configuration ensures uniform light output and consistent color reproduction across the entire display, enhancing image fidelity and brightness stability compared to older LED implementations.

Excellent Brightness and Visual Contrast

With a peak brightness rating of approximately 500 nits, the display delivers vibrant imagery that remains perceptible even in well‑lit indoor settings. Coupled with a 10,000:1 contrast ratio, viewers can enjoy clear distinctions between light and dark content elements—a critical factor for impactful visual communication.

Advanced HDR Support and AI Picture Processing

The All‑in‑One MMF‑A Series includes support for HDR10 and HDR10+ formats, expanding dynamic range and enabling richer color depth and detail in HDR‑enabled content. Built‑in image processing, including AI‑driven optimization, refines picture quality by reducing noise and enhancing visual clarity across diverse content types.

Wide Viewing Angles for Consistent Visibility

The display offers 160° viewing angles horizontally and vertically, ensuring consistent visibility from multiple positions within a room. This is especially advantageous in conference halls, public spaces, or collaborative environments where audiences may be distributed around the screen.

Integrated Audio and Simplified Connectivity

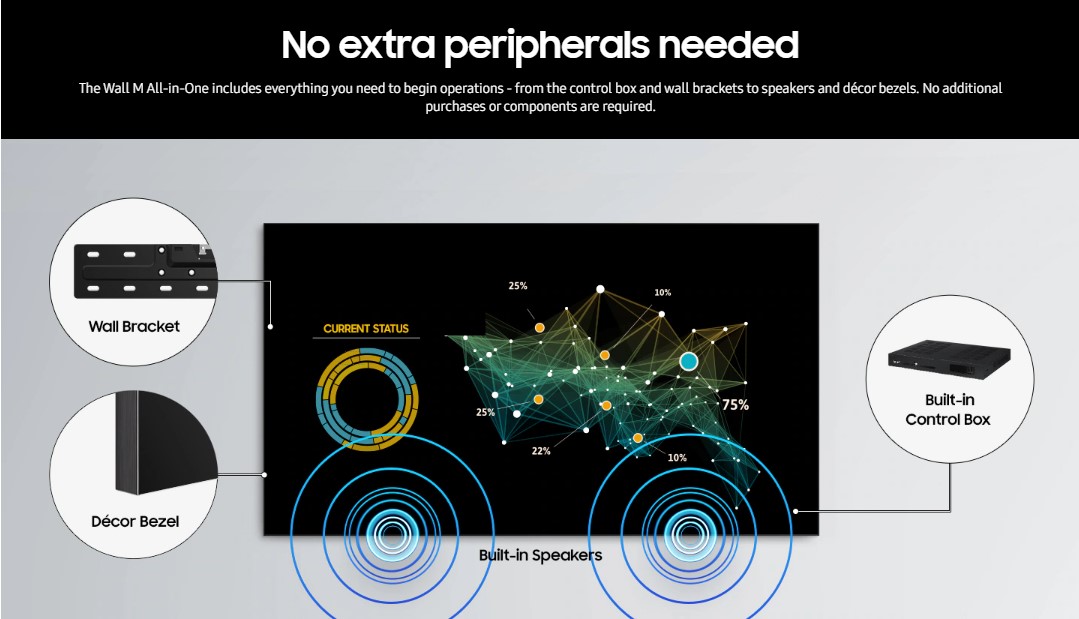

The Wall M All-in-One integrates built-in speakers along with comprehensive connectivity options such as HDMI, USB, RS‑232 and LAN. These features allow seamless content input and basic audio output capabilities without requiring external systems, making deployment faster and more self‑contained.

Eye Comfort Certification and Operational Efficiency

The display series holds TÜV Rheinland Eye Comfort certification, indicating reduced blue‑light emissions and flicker minimization—factors that contribute to reduced eye fatigue during prolonged viewing. Additionally, the display supports intelligent power management, including an automatic standby mode that reduces consumption to less than 0.5 W when idle.

Product Features

Display & Resolution

• 136‑inch diagonal LED panel with 1920 × 1080 (FHD) resolution

• Pixel pitch: ~1.56 mm for sharp image detail

• Flip‑chip RGB LED configuration for consistent brightness and colour

Visual Performance

• Brightness: ~500 nits

• Contrast ratio: ~10,000:1

• Viewing angles: 160° horizontal / 160° vertical

• HDR support: HDR10 / HDR10+ / AI Picture optimisation

• Refresh rate: ~50/60 Hz video performance

Connectivity & Integration

• Built‑in audio speakers

• Connectivity: HDMI, USB, LAN, RS‑232

• Multi‑screen IR control (up to four displays)

Comfort & Efficiency

• TÜV Rheinland Eye Comfort certification

• Standby power consumption < 0.5 W

Operational & Physical

• Operating range: 0 °C – 40 °C; 10 %–80 % RH

• LED refresh modulation frequency ~3840 Hz

• Professional indoor signage use
