PRODUCT OVERVIEW

BUFFERED ISOLATED OUTPUTS

Driving long cables is no problem as the Amp Detonator’s buffered low impedance signal ensures your input’s upper frequencies are maintained. Output B features an isolating transformer which eliminates common ground loop hum when using two amps simultaneously. The transformer output has been engineered for maximum transparency, correcting some of the tone-altering characteristics that affect many other ABY boxes.

PHASE CORRECTION

Two amps out of phase with each other sound awful but many ABY switchers ignore this. Even if the amps are in phase, running different pedal chains to each amp can reverse the polarity of the signal, causing the two signals to be out of phase when engaging both amps. The Amp Detonator addresses this with a simple fix on the top of the unit.

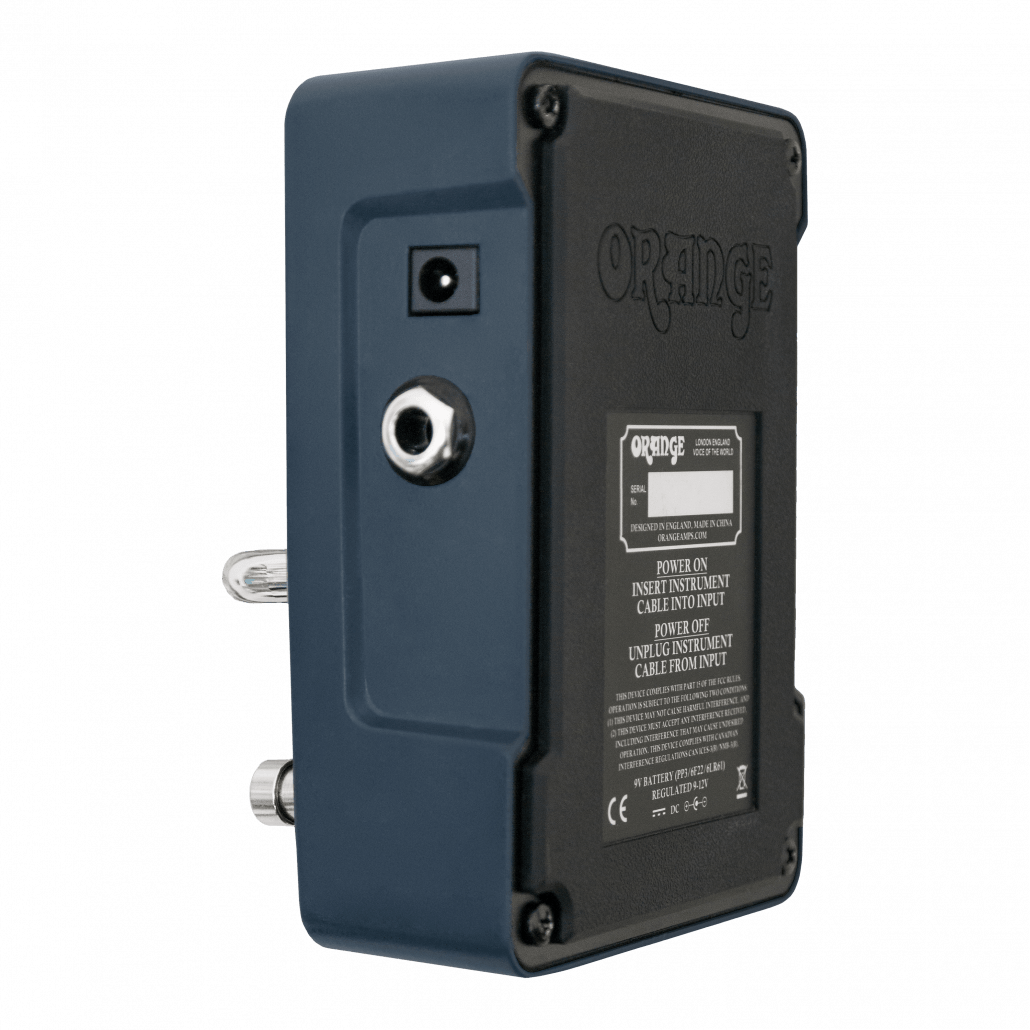

POWER

The only active ABY switcher that can be powered by battery as well as a 9 or 12V DC adapter. It also features an internal charge pump circuit which doubles the voltage internally to 18V, increasing the internal headroom for incredibly low harmonic distortion.

COMPACT DESIGN

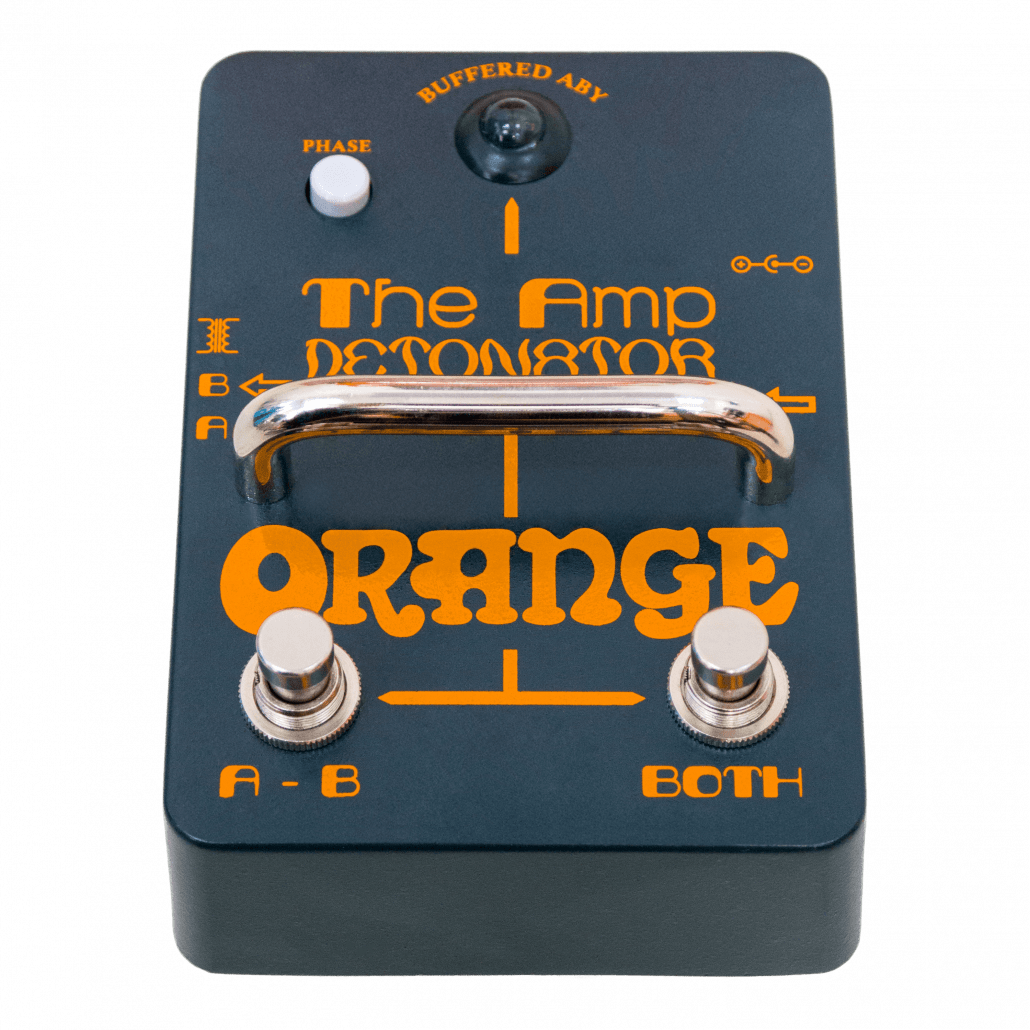

Need a professional ABY switcher but pedalboard space is at a premium? Other small amp switchers exist but none offer the quality or the functions of the Amp Detonator: silent operation, isolated outputs, phase switch, individual footswitches  for A/B or BOTH and an oversized 10mm tri-colour LED – green for A, red for B and blue for BOTH.
