NovaStar VX2000 Pro Multi layers and Real 4K Inputs All in One Controller
Key Features Of The NovaStar XV2000 Pro
-
➤ Supports ultra-high resolution up to 13 million pixels.
-
➤ Multiple inputs: DP 1.2, HDMI 2.0, 12G-SDI, USB 3.0, and more.
-
➤ Advanced processing with 12 layers and 3D support.
-
➤ Controlled via panel, software, web, or mobile app.
-
➤ Full backup system with auto-restore after power loss.
PRODUCT OVERVIEW
The VX2000 Pro is an all-in-one controller combining video processing and video control functionalities into a single device. Equipped with 20 Ethernet ports, it supports three working modes: video controller, fiber converter, and ByPass. Capable of managing up to 13 million pixels, the VX2000 Pro can output at a maximum width of 16,384 pixels and a height of 8,192 pixels, making it perfectly suited for controlling ultra-wide and ultra-high LED screens on-site.
|
The VX2000 Pro boasts powerful video signal reception and processing capabilities, supporting a maximum resolution of 4K×2K@60Hz for video input. It can handle multiple video signal inputs and includes features like 12 layers, output scaling, low latency, and pixel-level brightness and chroma calibration. These functions combine to deliver outstanding image display quality. |
 |
With various control options available, the VX2000 Pro can be operated via the front panel knob, NovaLCT, Unico web page and VICP app, providing you with a convenient and effortless control experience.
The VX2000 Pro is housed in an industrial-grade casing, which, combined with its powerful video processing and transmission capabilities, makes it robust and well-suited for complex operational environments. The VX2000 Pro is a perfect fit for medium and high-end rental, stage control systems, and fine-pitch LED screens.

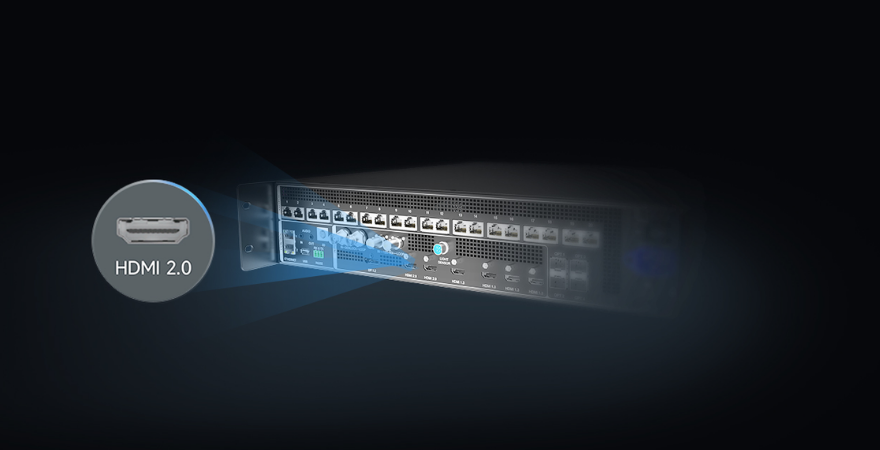

REAL 4K INPUTS
NovaStar VX2000 Pro Supports 4K, 4096×2160@60Hz, HDMI 2.0 connector.
 |
 |
|

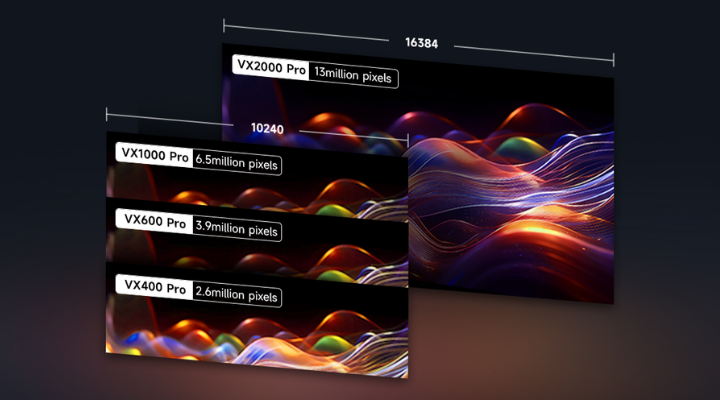

Loading Capacity From 2.6 Million To 13 Million Pixels Available configurations: 4 ports / 6 ports / 10 ports / 20 ports. |
Multiple layers and Presets VX2000 Pro supports 12 x 2K, or 6 x DL, or 3 x 4K layers |
 |
 |
|
Free Topology Without the rectangle restriction, loading capacity is calculated based on the physical cabinet, enhancing Ethernet port utilization and making configuration easier. |
Unico Web Configuration, B/S structure Visualized control interfaces. Effortless visual editing. Real-time monitoring. |

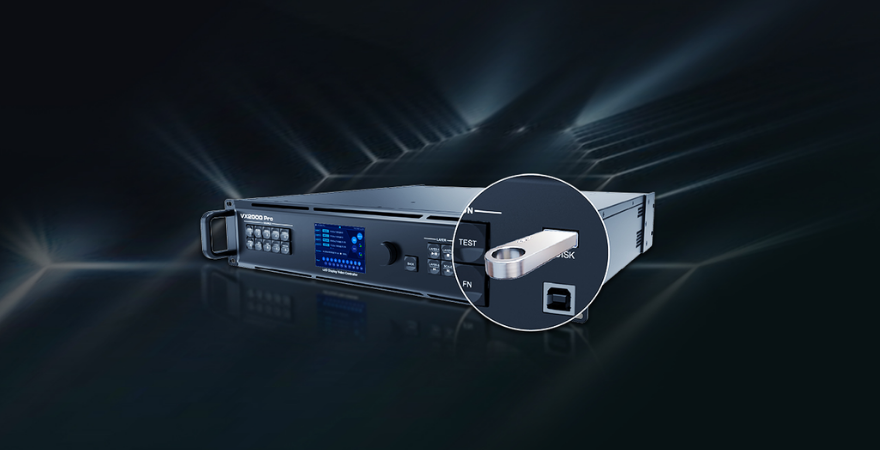

USB PLAYBACK
Insert a USB drive for instant plug-and-play convenience and use a USB source as an input source, allowing for convenient testing and video playback.
MORE ADVANTAGES
|

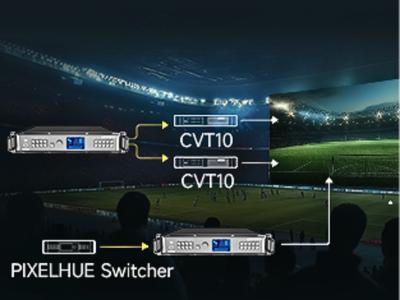

Flexible Fiber Solution |
Independent Audio Conntector |

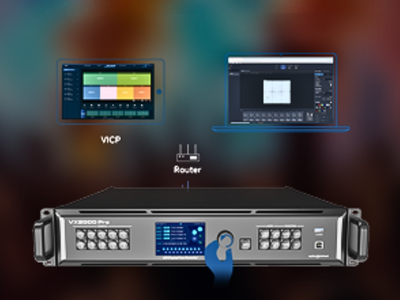

Multi-Operation Methods |
 |
 |
 |

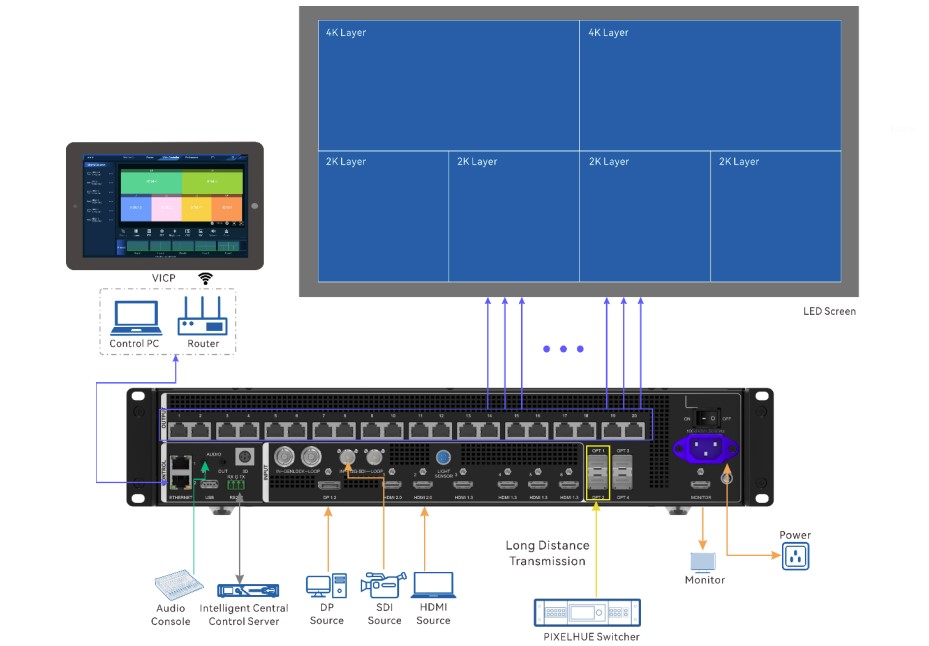

APPLICATION
APPEARANCE
-

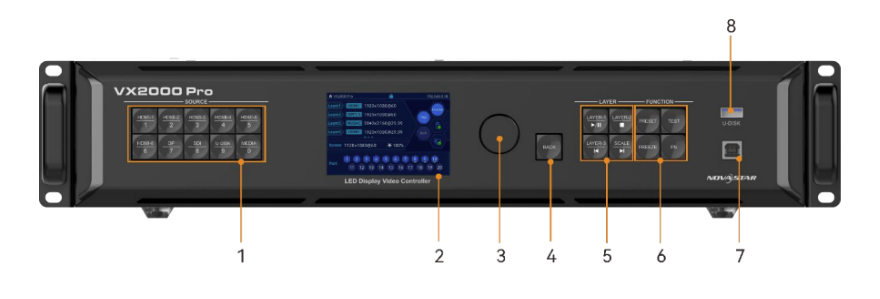

Front Panel
| No. | Area | Function Summary |
|---|---|---|
| 1 | Input Source Buttons | - Switch input source; show status via indicators: • White: Not used, no signal • Blue fast flash: Used, no signal • Blue slow flash: Not used, signal • Blue solid: Used, signal - U-DISK: Hold to open media playback; press to switch layer input. |
| 2 | LCD Screen | Displays device status, menus, and messages. |
| 3 | Knob | Rotate to adjust/select; press to confirm. |
| 4 | Back Button | Exit or cancel the current operation. |
| 5 | Layer Buttons | - LAYER 1–3: • Blue: Opened • Flashing: Editing • White: Closed - Media control: • L1: Play/Pause • L2: Stop • L3: Previous - SCALE: Full screen toggle / Next file during playback. |
| 6 | Function Buttons | - PRESET: Preset settings - TEST: Test patterns - FREEZE: Freeze/unfreeze image - FN: Custom function |
| 7 | USB Port | Connect to the PC with NovaLCT for control. |
| 8 | U-DISK (USB 3.0) | - Media/firmware via USB - File systems: NTFS, FAT32, exFAT - Max res: 3840×2160 - Formats: jpg, png, bmp, mp4 (H.264/H.265) - Audio: AAC-LC (8kHz–48kHz) - Transitions: Multiple effects - Fixed output: 3840×2160@60Hz |
-
Rear Panel
Input Connectors
| Connector | Qty | Description & Specifications |
|---|---|---|
| DP 1.2 | 1 | - Max res: 4096×2160@60Hz - Frame rates: 23.98 to 144 Hz - Custom res: up to 8192×1080 or 1080×8188 @60Hz - 8/10/12-bit, RGB/YCbCr 4:4:4/4:2:2 - HDCP 1.3, Audio supported - No interlaced input |
| HDMI 2.0 | 2 | - Max res: 4096×2160@60Hz - Frame rates: 23.98 to 144 Hz - Backward compatible (HDMI 1.3/1.4) - Custom res: up to 8192×1080 or 1080×8188 @60Hz - 8/10/12-bit, RGB/YCbCr 4:4:4/4:2:2 - HDCP 1.4/2.2, Audio supported - No interlaced input |
| HDMI 1.3 | 4 | - Max res: 1920×1080@60Hz - Frame rates: 23.98 to 120 Hz - Custom res: up to 2048×1080 or 1080×2048 @60Hz - 8-bit, RGB/YCbCr 4:4:4/4:2:2 - HDCP 1.4, Audio supported - No interlaced input |
| 12G-SDI | 1 | - Standards: ST-2082/2081/424/292/259 - Max res: 4096×2160@60Hz - Loop output, Deinterlacing supported - No resolution/bit depth settings |
Output Connectors
| Connector | Qty | Description & Specifications |
|---|---|---|
| Ethernet Ports | 20 | - Gigabit Ethernet - Max load: 13M pixels - Max res: 16,384×8192 - Single port: 650,000 pixels @ 8-bit - Frame rates: 23.98 to 144 Hz |
| OPT (Optical) | 4 | - 10G ports; role depends on device mode: OPT 1/2: Input/output OPT 3/4: Output - Modes: ① Input+Output ② Input+Loop+Output ③ Output |
| HDMI 1.3 (Monitor) | 1 | - For preview monitoring - Output: 1920×1080@60Hz (fixed) |
| 3D | 1 | - 1x 3D Connector - Enabling 3D function will halve the device output capacity. - Connect the 3D emitter and use the compatible 3D glasses to enjoy a 3D visual experience. |
Audio Connectors
| Connector | Qty | Description |
|---|---|---|
| AUDIO | 2 | - 1x Input, 1x Output - 3.5mm standard jacks - Sampling rate: up to 48 kHz |
Control Connectors
| Connector | Qty | Description |
|---|---|---|
| ETHERNET | 2 | - Connect to PC for control via web UI - Also used for device cascading - Status LEDs: • Top left: Connection - On = OK - Flashing = Loose connection - Off = Disconnected • Top right: Communication - Flashing = Good (data transmitting) - On = No data - Off = No transmission |
| Product Name | NovaStar VX2000 Pro Multi layers and Real 4K Inputs All in One Controller |
|---|---|
| Weight | 7.00 Kg |
| Parallel Processing Architecture | No |
| Hardware Structure, no OS embeded | No |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | –10°C to +60°C |
| Operating Humidity | 5% RH to 85% RH, non-condensing |
| Storage Humidity | 5% RH to 95% RH, non-condensing |
| Dimensions | 482.6 mm × 409.0 mm × 94.6 mm |
| Manufacturer | NovaStar |
| Color | Black |
| Country of Origin | China |
