NEWCTA TMI5K10 115V/230V | 10KVA | Single Phase Isolation Transformer With Center Tap
-
10KVA Power Output: Reliable performance for industrial and commercial applications.
-
Versatile Voltage: 0/230V input with 0/115/230V output for broad compatibility.
-

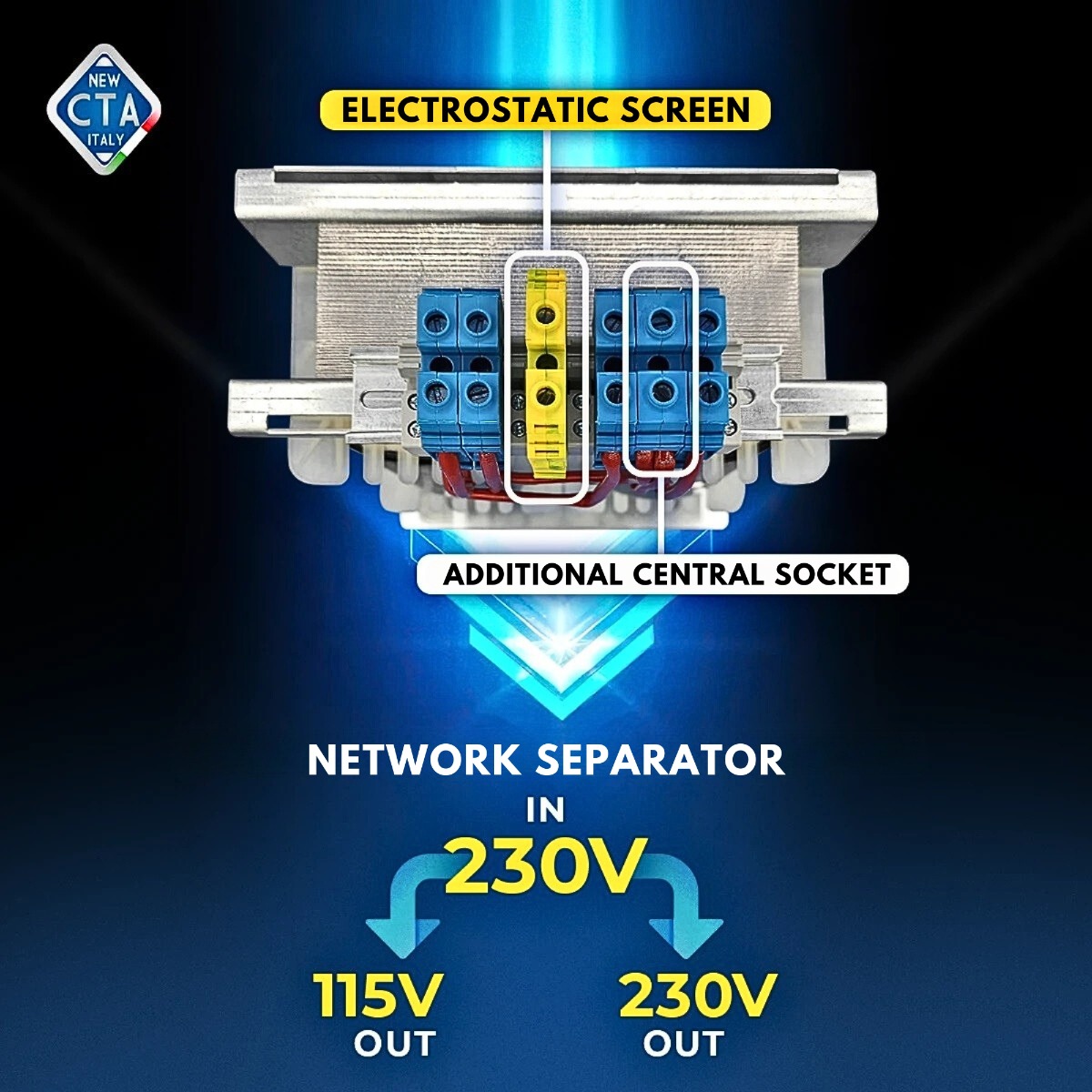

Clean Power: Electrostatic screen minimizes electrical noise for sensitive equipment.
-
Compact & Robust: Durable, space-efficient design with IP20 protection.
-
High Efficiency & Safety: 90% efficiency, CE-certified, with strong insulation.
PRODUCT OVERVIEW
The CTA TMI5K10 10KVA Single Phase Isolation Transformer is a high-performance electrical solution engineered to deliver safe, stable, and efficient power distribution across a wide range of applications. Ideal for industrial systems, commercial HVAC units, catering appliances, and sensitive equipment panels, this transformer is built to meet stringent safety and performance standards. With a robust rated power capacity of 10,000 VA, it provides reliable voltage conversion from 0/230V on the primary side to 0/115/230V on the secondary, offering unmatched flexibility for varied load requirements. The unit includes an electrostatic screen for reducing electrical noise, making it ideal for environments with sensitive electronics.
 |
 |
Designed for continuous operation within a temperature range of -20°C to +40°C and an altitude of up to 1000 meters, the TMI5K10 ensures durability in challenging conditions. It features a compact yet rugged form factor with easy horizontal mounting using four screws, along with optional ground fixing on both sides for enhanced stability. Built with a thermal and insulation class “F,” this transformer guarantees safe operation, while the IP20 protection rating ensures reliable use in dry indoor installations. Efficiency is rated at an impressive 90%, minimizing energy losses, and the transformer is compliant with CEI EN 61558-2-4 standards and CE marked for assured quality. Whether used in power-critical commercial kitchens or large-scale climate control systems, the TMI5K10 delivers uncompromised performance, long service life, and exceptional electrical safety.
Key Features:
|
10KVA High Load Capacity: Built to handle heavy-duty applications, the transformer’s 10,000 VA rated power ensures consistent energy delivery for industrial machinery, HVAC systems, and commercial kitchen equipment. Dual Secondary Voltage Output: Offers flexible voltage configurations with secondary outputs of 115V and 230V, allowing for compatibility with a wide range of devices and reducing the need for multiple transformers. |
 |
 |
Electrostatic Shielding for Electrical Noise Reduction: Integrated electrostatic screen effectively blocks electromagnetic interference, protecting sensitive equipment and ensuring clean and stable power output. Wide Operating Temperature Range: Designed to perform in environments from -20°C to +40°C, the transformer is suitable for both cold and warm climate installations, ensuring consistent performance year-round. |
|
Robust Build with Compact Design: Measuring 280mm in width, 415mm in height, and 260mm in depth, and weighing 62kg, this transformer combines a compact footprint with a solid steel enclosure for durability and space-saving installation. Simple and Secure Mounting: Allows horizontal fixing with 4 screws and additional grounding options on both sides, enabling fast, stable, and secure installations on panels or flat surfaces. |
 |
 |
High Insulation Voltage and Safety Compliance: Offers superior insulation with 4000V between windings and 3000V between windings and ground, and adheres to CEI EN 61558-2-4 standards, ensuring electrical safety and peace of mind. Impressive Energy Efficiency: Operates with up to 90% efficiency, reducing power losses and enhancing overall system performance, making it ideal for continuous-use environments. |
|
Reliable Overload and Short-Circuit Protection: Designed to be used with external protective fuses or circuit breakers, the unit ensures protection against overloads, short circuits, and overvoltages, prolonging equipment life. Compliant and Certified: Fully CE marked and built to meet international standards, ensuring product quality, regulatory approval, and suitability for global applications in both commercial and industrial settings. |
 |
| Product Name | NEWCTA TMI5K10 115V/230V | 10KVA | Single Phase Isolation Transformer With Center Tap |
|---|---|
| Manufacturer | NEWCTA |
| Product Model | TMI5K10 |
| Rated Power: | 10000 VA |
| Primary Voltage: | 230V |
| Electrostatic Screen: | Yes |
| Secondary Voltage: | 115V & 230V |
| Operating Temperature | -20° ~ 40°C |
| Standard: | CEI EN 61558-2-4 |
| Input Voltage Limits: | 207V - 253V |
| Frequency Limits: | 47Hz - 63Hz |
| Efficiency Percentage: | 0,9 |
| Altitude: | ≤ 1000m |
| Thermal Class: | F |
| Insulation Class: | F |
| Degree Of Protection: | IP 20 |
| Insulation Voltage: | 4000V between windings for 1' at 50Hz OR 3000V between windings and earth for 1'at 50Hz |
| Certifications | CE |

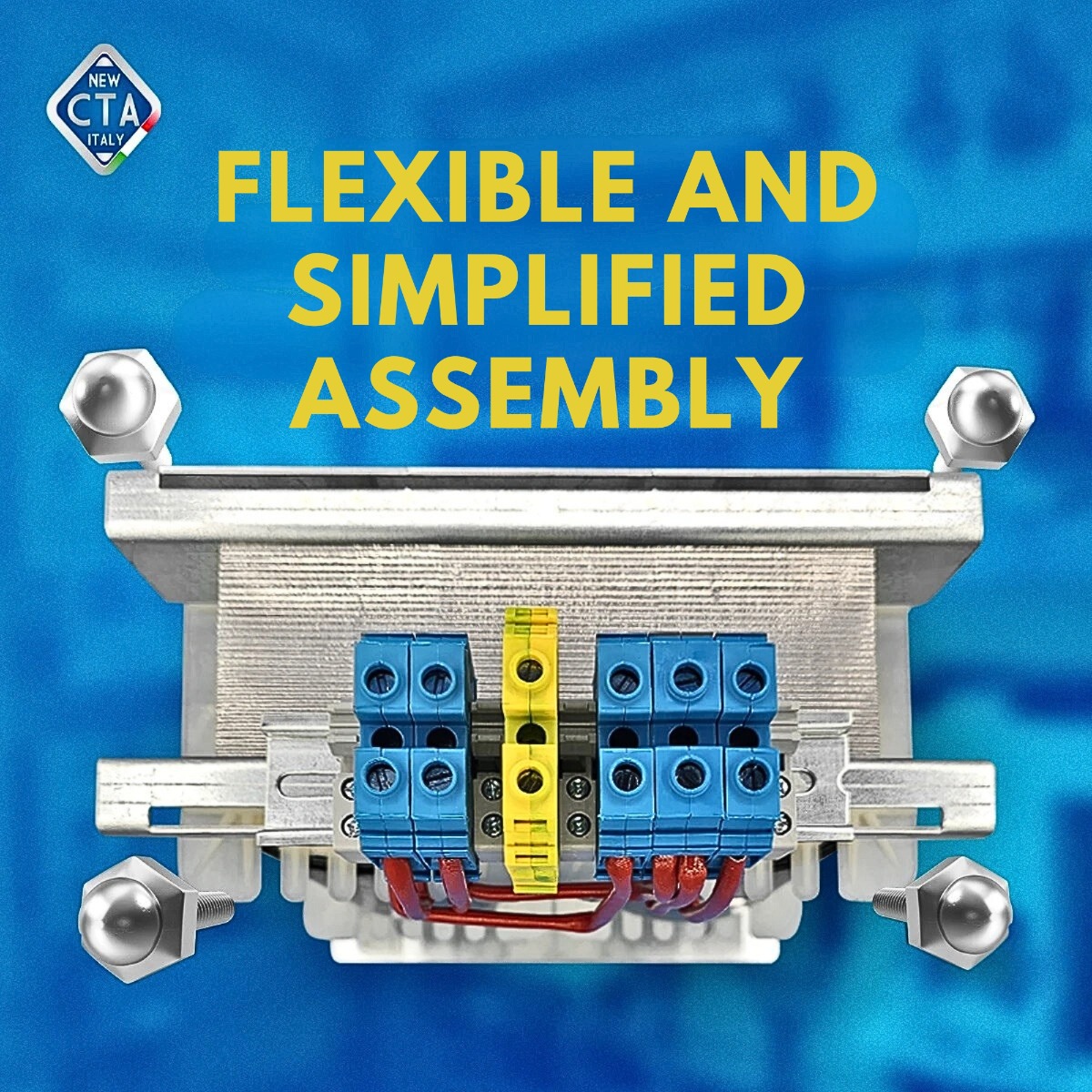

| Type Of Fixing: | With 4 screws in horizontal position |
| Type Of Protections: | For over voltages, overloads, short circuits: provide for the insertion of specific fuses or switches |

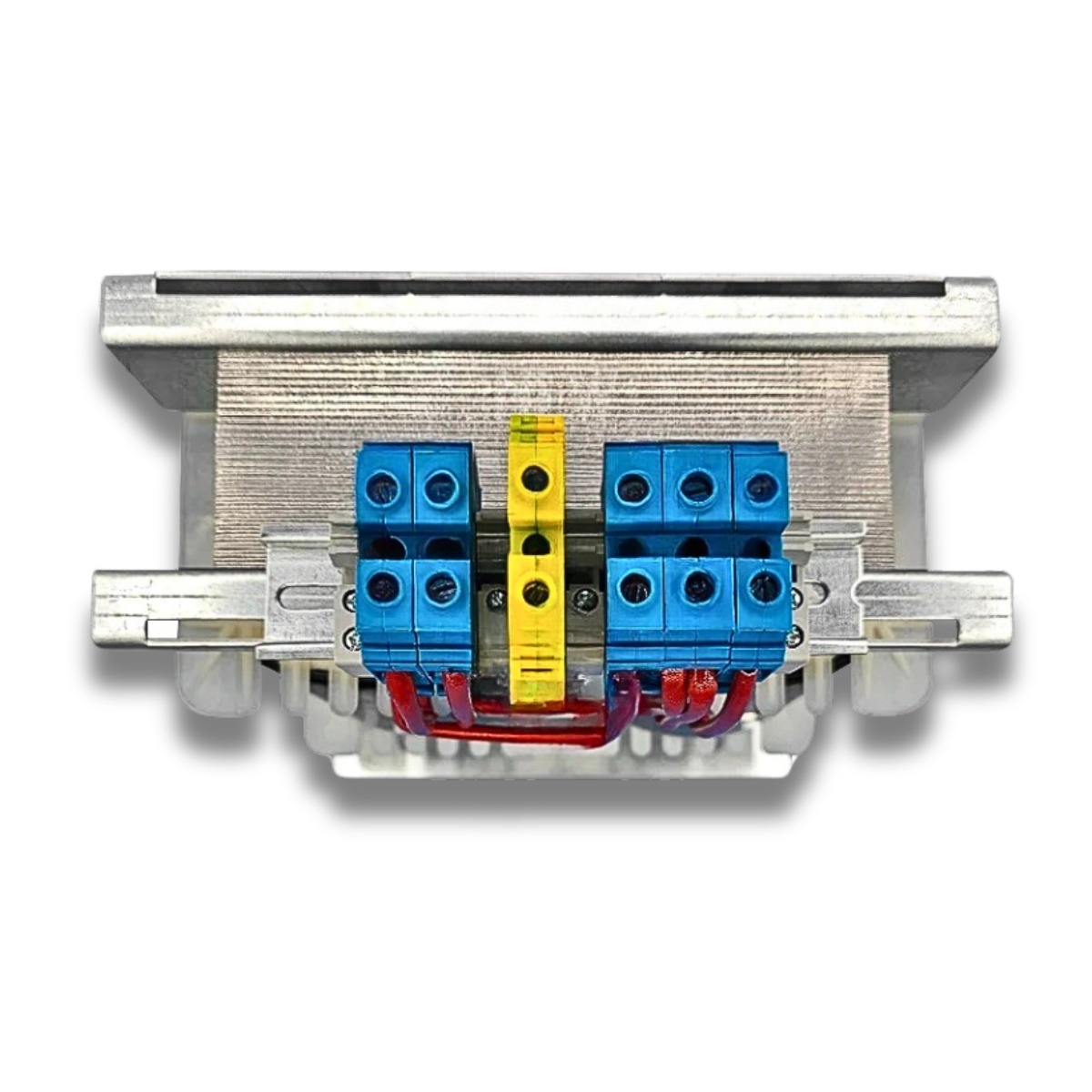

| Connection: | With supplied screw terminals and jumpers |
| Color | Black |
| Weight | 62.00 Kg |
| Product dimensions | 28 x 41.5 x 26 (cm) |
| Package Weight | 77 Kg |
| Packaging Dimensions | 56.5 x 80 x 60 (cm) |
| Country of Origin | Italy |
