PRODUCT OVERVIEW

Striking 4K Visual Clarity

The T8630 delivers razor-sharp visuals through its 86" 4K UHD (3840×2160) Direct-LED panel, offering high brightness (~350 cd/m²), a 5000:1 contrast ratio, and a broad 178° viewing angle. With 90% NTSC color gamut and ΔE≤2 color accuracy, it excels in delivering vibrant presentations and detailed video conferencing.

Advanced Interactive Touch

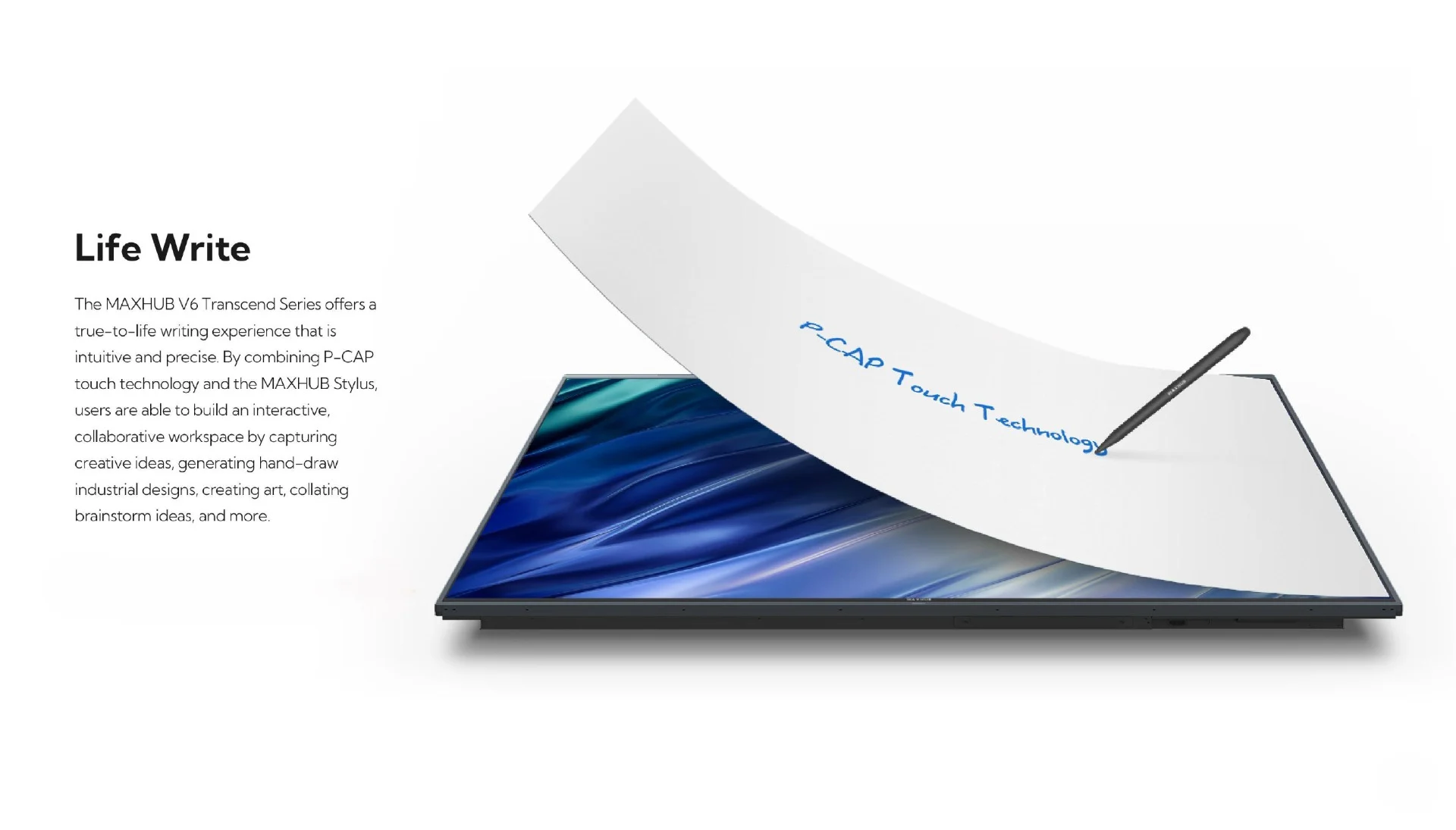

Equipped with P-Cap capacitive touch technology, the T8630 supports up to 20 touch points with ±1.5 mm precision and < 7 ms response, delivering a fluid, pen-and-finger writing experience. Zero-parallax, anti-glare, and antibacterial glass further enhance usability and hygiene in high-use environments.

Premium Flip Camera & Mic System

This panel integrates a dual flip-camera system—48 MP main + 8 MP secondary—with 3× optical zoom, WDR, auto-framing, and speaker-tracking features. Complemented by an 8-element beam-forming microphone array providing 8 m pickup and AI noise suppression, the system is optimized for professional video conferencing.

Immersive Audio Performance

Built-in 2.2-channel “Seam” acoustic speakers (two 10 W satellites + two 15 W subs) ensure crisp, room-filling sound. Enhanced by automatic gain control and echo cancellation, the T8630 is ideal for hybrid meetings where audio clarity is critical.

Smart Core & Seamless Integration

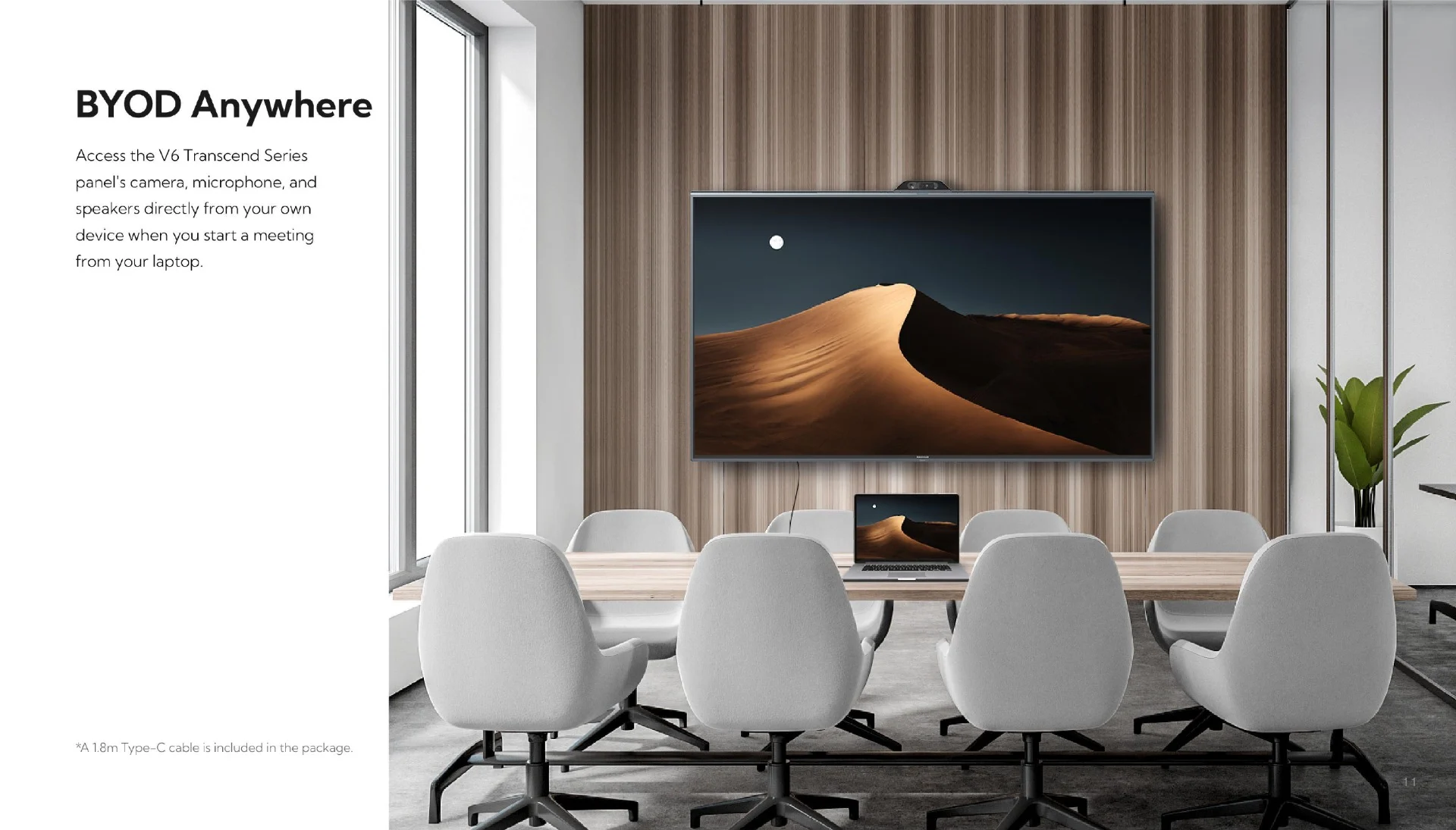

The T8630 runs Android natively but supports optional Intel OPS modules (i5/i7) to enable full Windows functionality. A wide range of ports—including HDMI in/out, USB 2.0/3.0, USB-C, VGA, RS-232, S/PDIF, RJ45—and dual-band Wi-Fi support flexible BYOD setups, networked deployments, and peripheral expansion.

Secure, Efficient & Enterprise-Ready

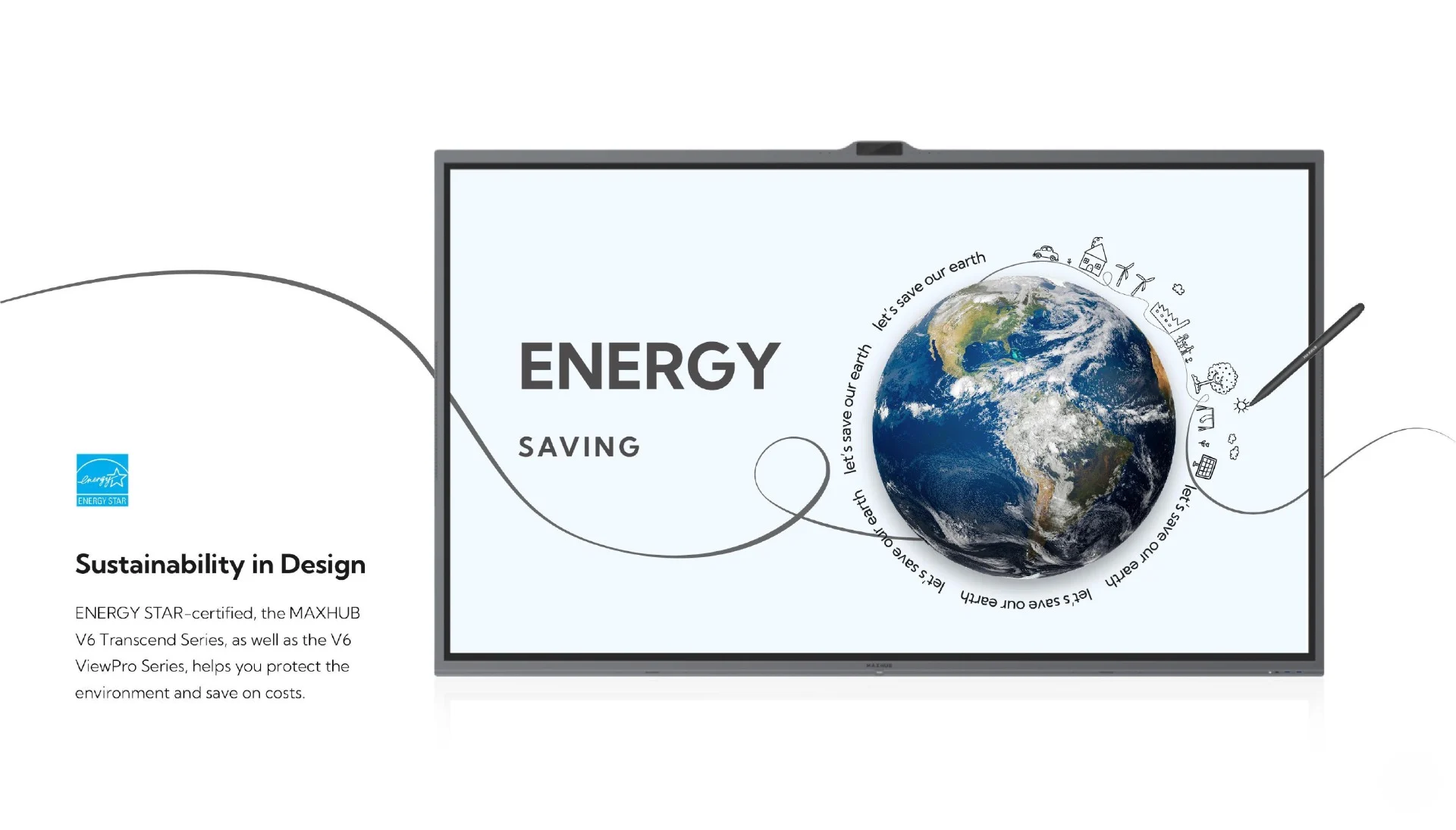

With a sleek 95% screen-to-body ratio and tempered zero-lag glass, the panel feels modern and professional. It meets high privacy standards with a flip-down camera and AES128/SM4 encryption for screen sharing. Power ranges from AC 100–240 V with max draw of ~350 W (standby ≤ 0.5 W). An ambient light sensor and ENERGY STAR compliance support energy savings.

Features:

• Size & Resolution: 86″ | 3840×2160 (4K UHD)

• Touch: 20-point P-Cap, ±1.5 mm accuracy, <7 ms, zero-parallax

• Camera: Flip-up dual 48 MP + 8 MP, 3× optical zoom, WDR, auto-framing

• Microphone: 8-array beam-forming mic (~8 m range), AI noise reduction

• Audio: 2.2-ch Seam speakers, 2×10 W + 2×15 W, echo cancellation

• System: Android + optional Intel OPS (i5/i7) for Windows

• Connectivity: HDMI in/out, USB‑2.0/3.0, USB‑C, VGA, LAN, RS‑232, S/PDIF, dual Wi-Fi

• Security: Flip camera + encrypted screen sharing (AES128/SM4)

• Energy & Build: Power 350 W max, standby ≤0.5 W, antimicrobial tempered glass, splash-resistant

• Design: 95% screen-to-body, VESA-ready, plug-and-play deployment
