PRODUCT OVERVIEW

Key Features

SIMPLIFYING WORK

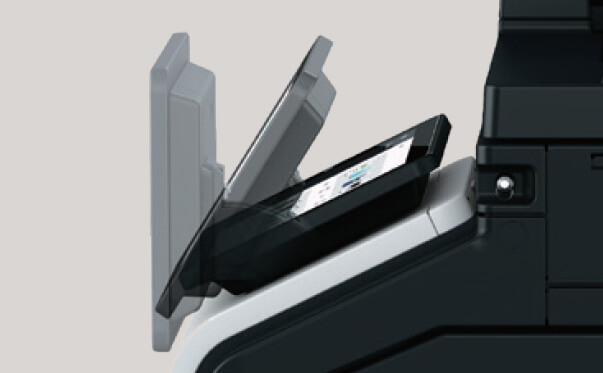

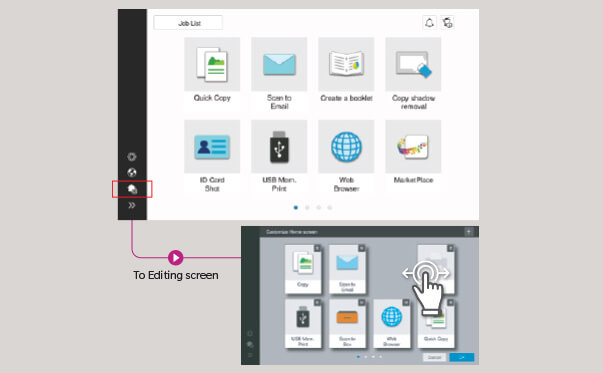

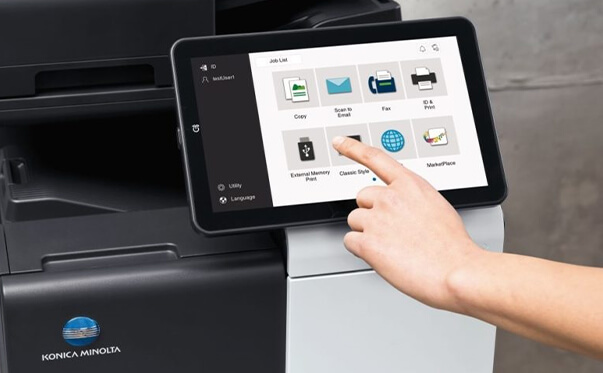

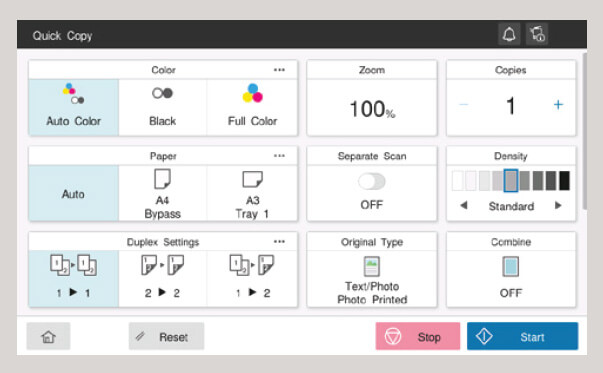

The User Interface has been completely revamped with an operation panel screen with smart-device-style operability. The operation has been simplified by narrowing down functions and screen transitions to frequently-used functions.

MAKE TASK SIMPLE WITH PURPOSE-SPECIFIC APPs

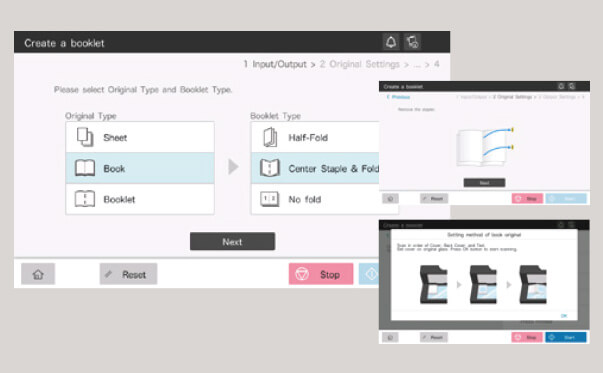

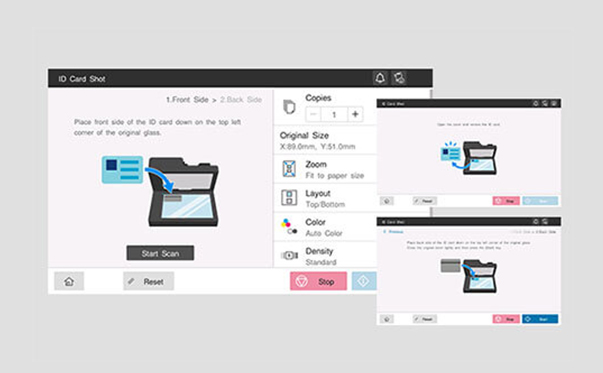

The bizhub 4750i series simplifies the operation with on-screen animated instructions that guide users through tasks. Operations can be performed smoothly in just a few easy steps.

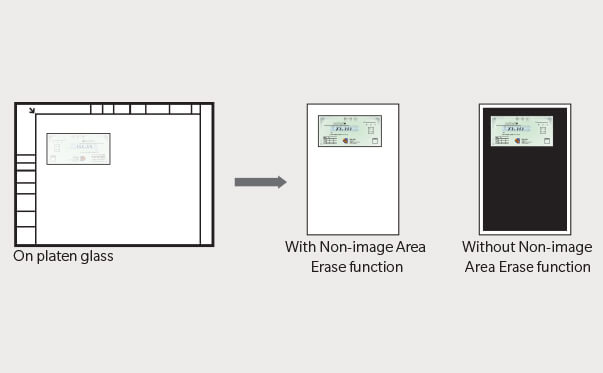

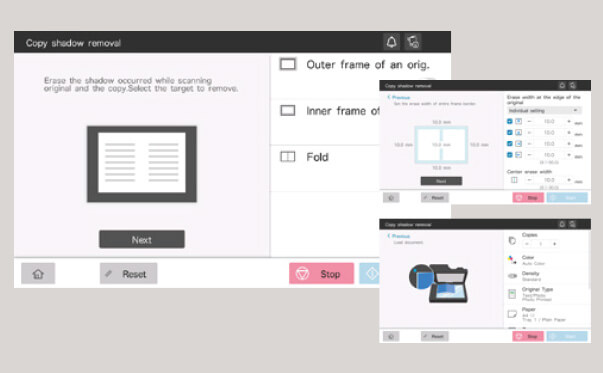

Non-image area erase function. For users who want to copy with the document cover open, and/or want to omit the shadowy areas around the scanned images of things such as books.

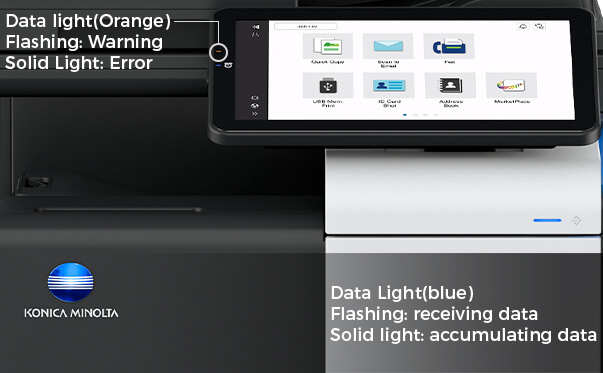

INDICATOR LIGHTS

The bizhub 4750i series has been installed with a new LED light that gently harmonizes with the environment. The LED, which indicates data receipt or accumulation, is located on the front of the MFP for easy recognition.

Voice guidance

Voice guidance offers support such as reading out fax numbers, explaining major screens and keys, and key-related operations. It also assists panel operation and prevents mis-operation.

*This function is only for use in enlarged displays on copy, fax, and scan screens. *Requires i-Option LK-104 v3, key pad KP-P03 and device connection I/F kit EK-608 or EK-609.

Color Universal Design

Konica Minolta has received Colour Universal Design certification from Japan’s Colour Universal Design Organization (CUDO).

*In validation tests using subjects with four types of color-vision deficiencies, (red and green blindness, red and green weakness), CUDO confirmed that regardless of the deficiency, information transmission in color by this unit functioned correctly.

THOROUGH PROTECTION OF OFFICE INFORMATION

Data security is an ongoing concern in the corporate world. Konica Minolta works tirelessly to keep clients’ documents secure, in both digital and paper formats. By including cutting-edge security functions in all Konica Minolta technologies, we aim to reduce the burden on IT administrators.

bizhub SECURE services

Data protection is a major issue for most companies. bizhub delivers advanced security settings through bizhub SECURE services, a total security setting service that provides greater protection for customer data stored in the SSD and device's network settings.

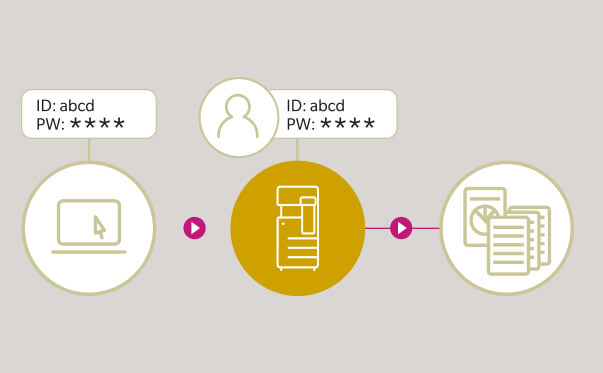

Secure printing

By setting a password for documents on the printer driver screen, the document is stored on the MFP's SSD until the correct password is keyed in on the operation panel. The document is protected and will not be output until the password set for that document is matched. This is useful when you wish to print confidential documents or give permission for limited users to receive copies.

VARIOUS TYPES OF USER AUTHENTICATION

Optimal authentication systems can be customized to suit office scale and pre-existing systems. The bizhub 4750i series also supports single sign-on (SSO) which enhances operability without sacrificing security.

• Main unit authentication

Authentication can be performed through the bizhub alone. It is also possible to set detailed usage restrictions for functions, including copy, print, scan and fax.

• Biometric authentication

Highly accurate authentication is possible using finger veins. It’s easy and also enables the building of high-level security systems.

*Requires the Biometric Authentication Devices AU-102, EK-P08 or EK-P09 and WT-P03 options.

• Non-contact IC card authentication

Non-contact IC cards*1 such as FeliCa can be used to authenticate users*2. This also supports SSFC (Shared Security Formats Cooperation) specifications which enable integration of staff authentication with authentication systems. Apart from non-contact IC cards, authentication can also be carried out on NFC-compatible Android devices*3.

*1 Non-contact IC cards are compatible with FeliCa (IDm), SSFC, FCF, FCF (Campus), and MIFARE (UID).

*2 Requires the IC card authentication device AU-201S option.

*3 Requires an Android device later than Android 4.4, compatible with HCE (Post Card Emulation), and Konica Minolta Mobile Print.

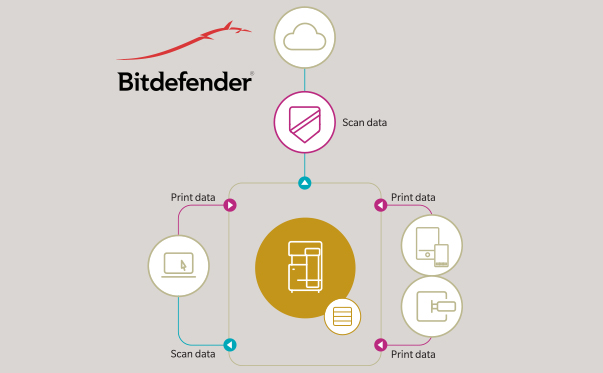

Virus scanning

The 4750i series is equipped with robust antivirus software based on an embedded Bitdefender scan engine to ensure safe connection to devices including PCs, tablets, and USB flash drives. Scanning individual files means much finer virus detection than with the whitelist method alone. Latent viruses in the office are discovered through checking and notification when files are received. Checks are also conducted when files are output from the MFP which prevents dissemination of infected files. Further periodic checking of files in the MFP discovers risks in the network files and detects latent risks in the MFP. Real-time virus scan jobs are available for print, scan, and fax functions, while manual or scheduled virus scans are possible for folders such as SMB folders on the Box and SSD.

Requires i-Option LK-116.

Requires an internet environment.

Encrypted PDFs

• Password encryption

  Documents distributed in PDF format can be password encrypted.

• Digital ID encryption

  Only authorised recipients with a private key can decrypt. This ensures a far more robust level of security than the previous public key system. If encrypting with Digital ID, the email address (S/MIME send) to which the Digital ID has already been registered must be regimostered to the MFP’s abbreviated address.

  Requires the i-Option LK-102 v3.

• Electronic signatures

  Electronic signatures certify (MFP) document authors, and also guarantee that the document has not been changed and is valid. Certifications by third party organisations can also be used.

Other major security features on the bizhub 4750i series

• SMTP authentication/POP before SMTP authentication enables security to be set when sending emails.

• SSL/TLS protocol enables encryption of data transmission between networks

• Storage Lock Password prevents unauthorized access to the SSD

• TPM (Trusted Platform Module) safely manages confidential information*

• * Requires i-option LK-115 v2

FASEC 1- compliant fax security

• Double Address Input prevents erroneous transmission through input error.

• Destination Number Confirmation Display prevents erroneous transmission due to incorrect dialing.

• Dial Tone Detection function prevents erroneous transmission due to call collision.

• Memory Receive & PC Forward prevents paper faxes from being left behind.

• Transmission Result Report and Operation Panel Result Check enable verification of fax transmission.

Konica Minolta’s original fax security

• The send Approval Password function prevents erroneous transmission through thorough checking.

• Recipient Confirmation (CSI matching) Send prevents erroneous transmission through mistaken connection.

• Voice Guidance when Sending uses voice guidance to prevent erroneous transmission*

  * Requires i-Option LK-104 v3, Key pad KP-P03 and device connection EK-P08 / EK-P09.

• Designated Tray Paper Feed assists security management.

Recognized high-level security ISO/IEC 15408 certification

To objectively prove the reliability of Konica Minolta MFP security functions, we have obtained the Common Criteria (CC) for Information Technology Security Evaluation (ISO/IEC 15408). The bizhub 4750i series has also obtained CC certification for compliance with HCD-PP v1.0 (Protection Profile for Hardcopy Devices).

Information security-related certification obtained for this product (and this system) demonstrates compliance with certification requirements as a result of evaluations based on specified evaluation standards and methods but does not assure that the product (or the system) is complete without weaknesses.

ALWAYS AT THE FOREFRONT

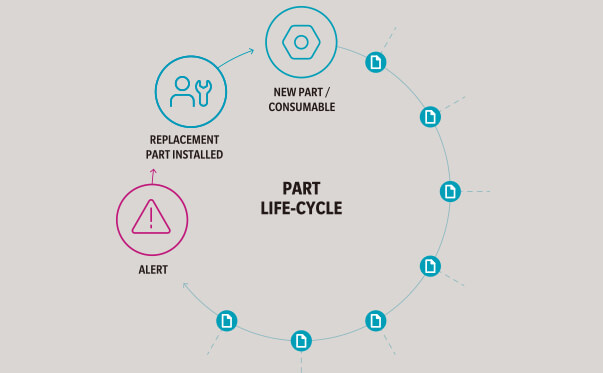

Konica Minolta remotely manages bizhub operating conditions and toner levels and delivers a variety of support and cloud services including automatic firmware updates and remote monitoring.

Worldwide Remote Service Platform

We developed new services leveraging IoT so users can focus on their core business. i-Series intelligently collects data for self-diagnostic and remote maintenance, as well as predicts the optimum replacement time for parts and consumables to minimise downtime.

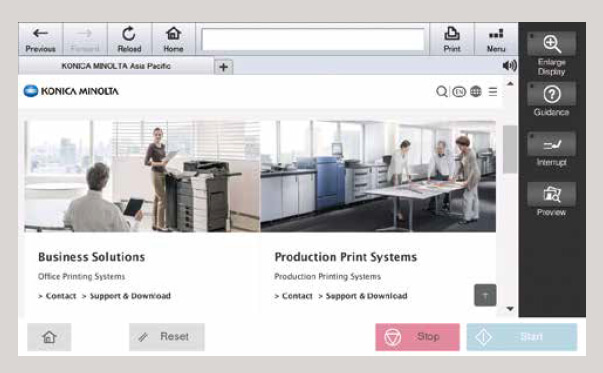

Web browser function

The bizhub 4750i series supports a web browser function. Websites can be displayed on the operation panel and printed out. Pages in PDF files on the website can be specified and only the required sections printed. This is very handy, allowing easy printing such as destination maps from the site.

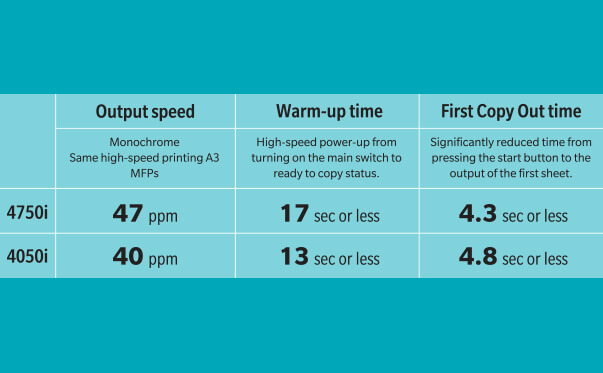

HIGH PRODUCTIVITY

High A4 MFP/SFP functionality in a compact design ALWAYS AT realizes convenience and excellent productivity while saving space.

The same functions as an A3 MFP allow it to ideally harmonize with A3 bathtubs in the office.

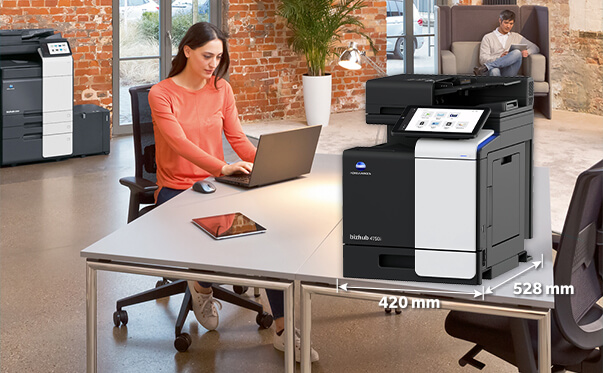

Despite its space-saving size, the bizhub 4750i series is equipped with a large 10.1-inch touch panel, providing the same operability as an A3 bizhub. In addition to sharing the same body design, it supports the same security, cloud connectivity, and maintenance functions. It can harmonize ideally in the office together with an A3 bizhub according to location and the number of users.

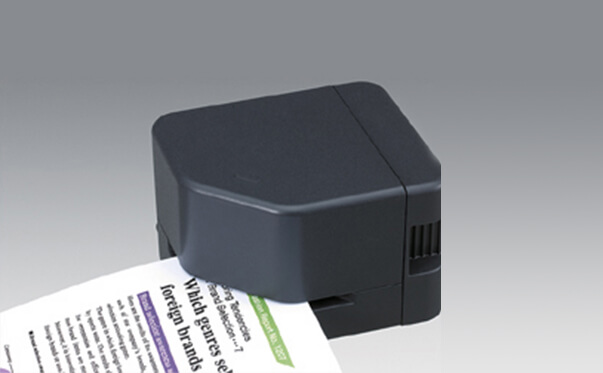

Off-line stapler makes time-consuming stapling easy. The optional off-line stapler lets you quickly re-staple an original document that had its staple removed for scanning or copying, or when you need to staple multiple documents on the spot right away.

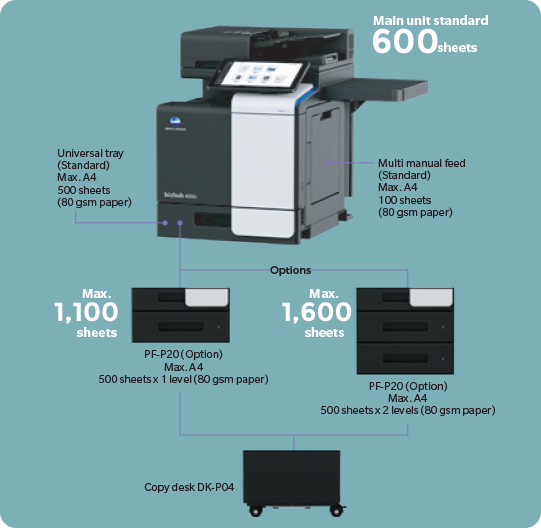

Boost productivity with max. 1,600 sheet high volume paper capacity

Adding two optional 500-sheet paper feed units to the bizhub 4750i series' standard 500-sheet capacity paper feed unit and 100-sheet bypass tray enables a maximum of 1,600 sheets*. * 80 gsm paper.

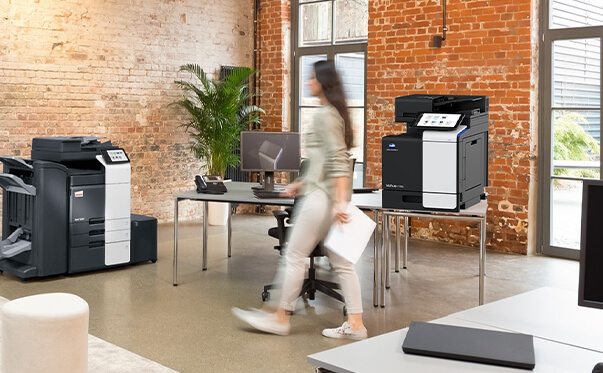

Customizable according to usage and installation location

Cabinets and castors are available to customize the bizhub 4750i series to suit the office environment and usage settings. Configure as an A4 sub-machine in large offices, or as a primary machine in small home offices or retail environments.

COPY / PRINT

Equipped with advanced functions for monochrome MFPs. Both Copy and Print functions exhibit outstanding performance.

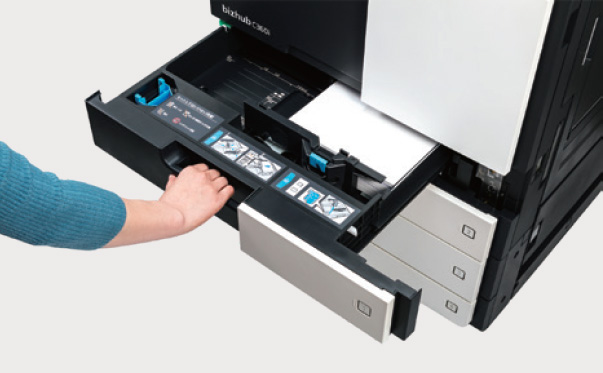

Lightweight paper trays

Paper trays handle easily and open/close smoothly with a light press and pull motion. Trays can be removed for retrieval of jammed paper, which equates to less downtime.

Paper feed and manual feed trays for 60 to 210 gsm paper

Both the main unit paper feed tray and manual feed tray support a wide range of paper from 60 to 210 gsm.

Feed error sensor

4750i series models are equipped with a sensor in the DSDF to detect any double paper feeds. An error message is displayed allowing the paper to be reset by the user, so now pages go missing during copying via the DSDF.

Enhanced 1,200 dpi resolution

The bizhub 4750i series achieves a 1,200-dpi print resolution with the superb ability to reproduce small font sizes and fine lines. Such faithful reproduction capability improves document legibility and produces beautiful, high-quality print-outs. Slows down printing speed.

Carbon Copy Function

Output both actual form documents and marked carbon copies at the same time in a single print job. The carbon copy function supports settings for any number of copies. This eliminates the need to repeat tasks and makes workflow smoother.

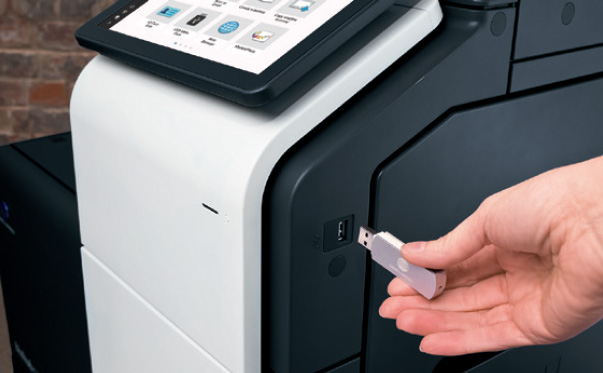

Print directly from your USB flash drive

bizhub 4750i series is equipped with a USB port, located on the side of the operation panel. After inserting a USB flash drive, printing procedures pop up on the touch screen, and the flash drive data can be directly printed or saved to a Box in the unit in a few easy steps.

May not operate correctly depending on the type of USB flash drive. Supported file formats: PDF, compact PDF, JPEG, TIFF, XPS, compact XPS, and OOXML (.docx/.xlsx/.pptx).

Printing results may differ from the image on the PC screen. Virus check function requires i-Option LK-116.

Other copy functions

• Image Quality Mode to match the original (text, text/photo, photo, faint original, map, copied original)

• Output Mode that matches application (double-sided printing, page aggregation, repeating, grouping, sorting, shifting, booklets, binding margin)

• Diverse Original Document Scan Modes (continuous scan, binding margin, original loading direction, programmed jobs, blank original removal).

• Copy Mode can be set according to objective (book original, consecutive page copying)

• Selectable Layout Adjustment (enlarge/reduce, consecutive enlargement copying, image storage method, mirror imaging, image shift)

• Handy Page Insertion (coversheet, insert sheet, chapter separator, insertion page)

• Expanding usage with Image Additions (date/time, page number, stamp, watermark, head/footer, overlay, registered overlay)

• Able to copy required sections only (Frame Erase, Erase Outside)

• Copy Protect Function that prevents unauthorized copying through inconspicuous background printing.

Other print functions My Tab Function can customize your printer driver. Carbon Copy Mode prints the original docket and copies at the same time Some functions are only compatible with Classic Mode.

Supporting a range of print services

AirPrint Apple’s standard printing system which is supported from IOS4.2 and Mac OS X 10.7. Supported printers can be used via wireless LAN without installing applications on devices.

Mopria Print Service Wireless technology offered by Mopria Alliance allows printing from devices equipped with Android 4.4 or later versions.

Konica Minolta Mobile Print This is a mobile application offered by Konica Minolta. With a simple and intuitive user interface. Connecting a mobile device with bizhub allows fast, secure scan data acquisition, saving to and sharing cloud storage, as well as document and image printing. Authentication Print and Secure Print are also supported enabling worry-free printing of confidential documents.

MOBILE

Offers a new workstyle through advanced connectivity with mobile devices.

Mobile communications function

Connectivity with NFC-equipped Android devices

NFC-equipped devices. Installing Konica Minolta Mobile Print on Android devices allows that device to be registered to bizhub. Just holding the Android device over the mobile touch area enables the selected file to be printed. Scanned documents in the bizhub can also be scanned and saved to Android devices or cloud storage. Where user authentication is enabled, just holding the Android device nearby allows login.

Requires the Android device to be equipped with OS4.4 or later.

Requires a wireless LAN environment.

Bluetooth LE connectivity with iOS devices

Using Bluetooth LE (low energy), a bizhub close to the user can be searched and registered with Konica Minolta Mobile Print. As it is also supported with the iOS action button, printing and scan data sharing from various applications can be smoothly executed. Further, where user authentication is enabled, Bluetooth LE can be used to log in.

Requires the device connection I/F kit EK-609 option.

Requires wireless LAN environment.

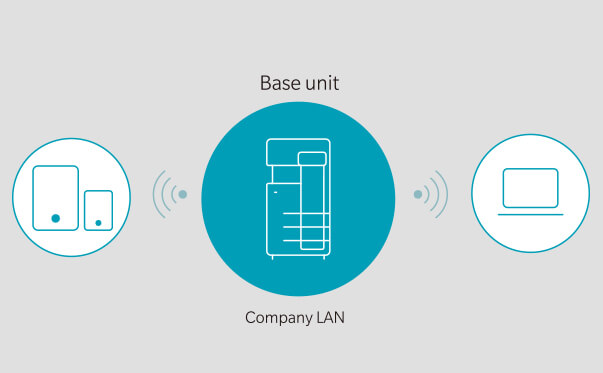

Create a wireless environment easily with wireless LAN/AP mode bizhub 4750i series supports Simple Access Point (AP) Mode*, which easily creates a local wireless LAN environment with only the bizhub allowing a wireless LAN to be built separately from the company LAN. Because it bypasses the company LAN, even mobile devices brought in from outside can be securely connected. *Requires Upgrade Kit UK-221 option.

SCAN / FAX

The Scan/Fax functions deliver high performance and high functionality from speed, quality, and distribution to storage.

Send large volume scan data with ease using the Scan to URL function Equipped with a Scan to URL function which stores Scan data within the bizhub, then emails the storage destination URL to the user. This enables easy transmission of large volume data that cannot be attached to emails. Requires solid state drive EM-908.

Outstanding scan performance

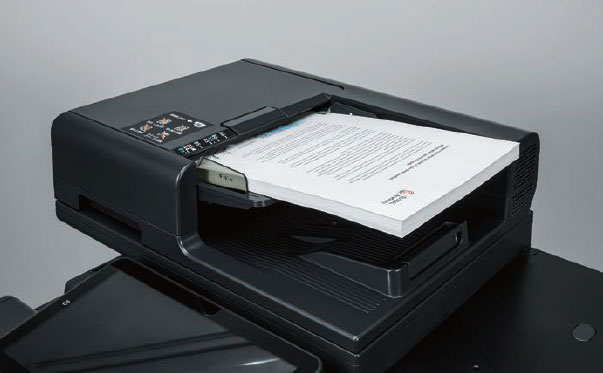

Automatic duplex, simultaneous scanning with a Dual Scan Document Feeder (DSDF), achieves high-speed color scanning of 90 pm (45 double-sided A4 sheets per minute). Up to 80 sheets* can be loaded at any one time, significantly reducing scanning time and effort. The precision of automatic skew correction, which adjusts the angle of the scanned original, has been greatly improved to deliver highly accurate scanning with less skew.

Send scan data instantly to your email address with "scan (email to me)"

Users can send scan data such as receipts and payment slips to themselves immediately. This can also be done securely with the authentication setting. As the "Scan (email to me)" button is on the home screen, the data can be scanned and sent quickly in a few easy steps.

Check and print received faxes with Compulsory Memory Receive Box

Received faxes can be checked, managed, and printed in a few easy steps by setting the Compulsory Memory Receive Box on the home screen. As the user can select which faxes need to be printed, this function is effective in preventing unnecessary outputs, thus reducing printing costs.

Exclude blank documents from being scanned with the blank original removal function.

Blank sheets from original documents loaded on the DSDF can be excluded from scanning. Documents detected as blank sheets will not be counted as a page.

Double feed detection sensor Double feed detection sensor Applying ultrasonic waves to the original distinguishes a layer of air between each page and detects double feeds. When a double feed is detected, a preview of the original that has already been scanned will be displayed so that the job can be restarted without repeating the whole scanning operation from the beginning.

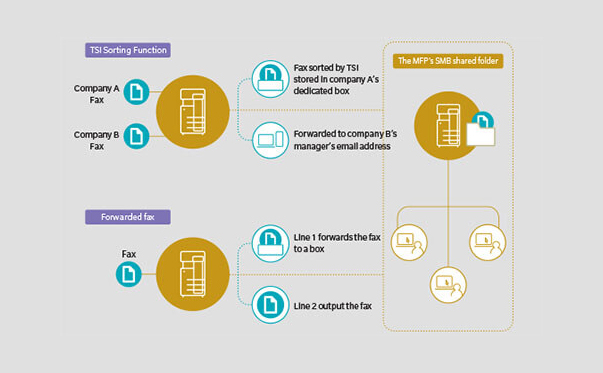

Box storage of received data promotes a paperless environment.

Received fax data is automatically sorted according to TSI (Transmitting Subscriber Identification) and automatically stored in the Bizhub’s Box. Setting automatic transfers to client PC or email addresses saves both effort and cost in sorting and distributing received documents. Forwarding to the bizhub’s SMB shared folder is also possible. The bizhub 4750i series can also handle functions such as forwarding faxes and TSI-sorted received faxes. The increase in storage destinations for received faxes will further promote a paperless environment.

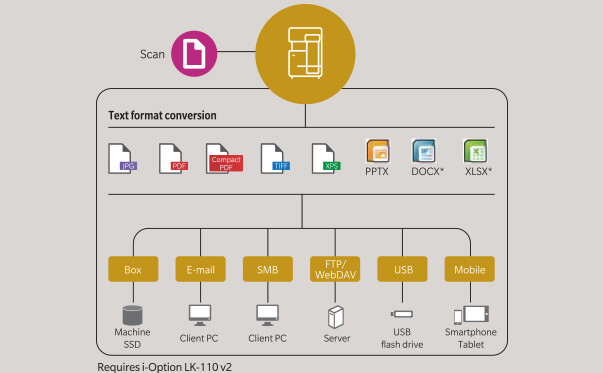

Improve scan job efficiency.

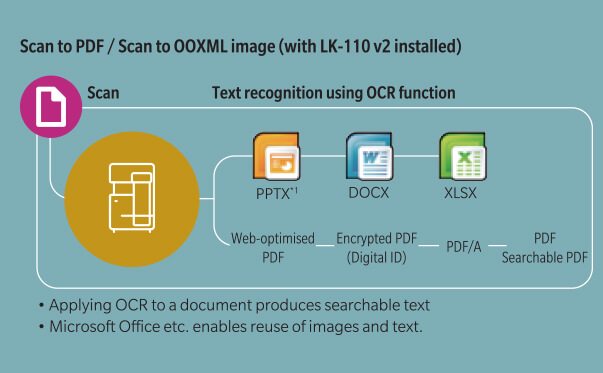

Scanned originals can be converted to a variety of document formats according to the application and stored in Bizhub’s box or a USB flash drive. They can also be sent and stored to a PC or server via email, SMB, FTP, or Web DAV.

Other main scan and fax functions

• Super G3 Standard achieves high-speed sending of approx. 2 seconds.

• Direct Fax, paperless sending from a PC

• Convert received data into a Searchable PDF format*

  *Requires i-Option LK-110 v2

• W-NET FAX compatibility for broad Internet fax interchangeability

• IP Adress Fax (T.38 FAX) reduces transmission costs*

  ^*Requires i-Option LK-117 and Fax kit FK-517

• Address Storage for a maximum of 2000 addresses (100 groups)

• Banner Scan scans long originals from the ADF.

Digitization of paper documents Documents can be scanned and converted to PDF or OOXML format files. File format can be selected according to the business and intended use, which broadens the scope of secondary use.

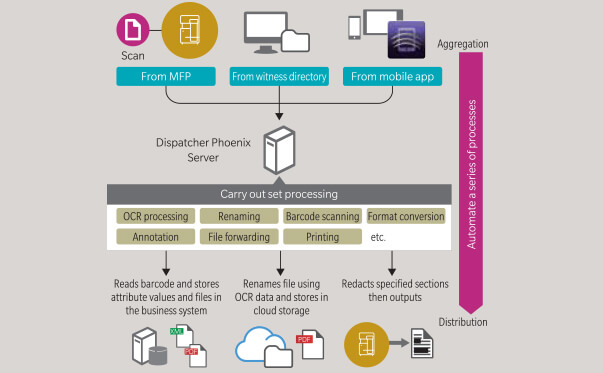

Dispatcher Phoenix

Dispatcher Phoenix automates digitized document processes from file aggregation to processing and distribution. By dividing processes via pre-set conditions, such as OCR processing, file renaming, and barcode scanning, each document is automatically stored at a destination. This delivers a one-touch execution of cumbersome tasks. Start times can be scheduled so that digitized tasks can be executed quickly and efficiently. Broad scalability and versatility, including connectivity with cloud services, enable the creation of flexible workflows tailored to the customer’s business and office environment.
