JBL PD5125-WRC Mid High Low Frequency Loudspeaker (Each)
Actual Stock Can Be Confirmed After Placing the Order.
All Delivery times are estimated based on the official restrictions.
SKU
PD5125-WRC
$5,120
$4,876
Pay 4 interest-free payments of AED 421.00.Learn more

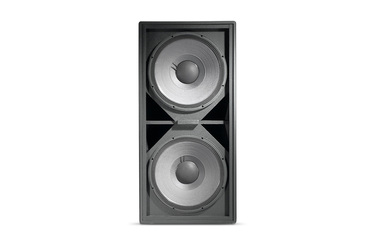

The PD5125 is a high power low frequency loudspeaker comprised of two 380 mm (15 in) VGC™ Vented Gap Cooled low frequency drivers in a front-loaded, vented configuration.
PRODUCT OVERVIEW
Mid/High / Low Frequency
The PD5125 is a high power low frequency loudspeaker comprised of two 380 mm (15 in) VGC™ Vented Gap Cooled low frequency drivers in a front-loaded, vented configuration. The trapezoidal cabinet is fitted with M10 threaded suspension points.
Features
- Two high power 380 mm (15 in) low frequency drivers mounted in individual vented chambers 691 (27.2).
- Low frequency extension to 40 Hz.
- Enclosure dimensions compatible with all PD5000 and PD700 models 20°.
| Product Name | JBL PD5125-WRC Mid High Low Frequency Loudspeaker (Each) |
|---|---|
| Weight | 53.40 Kg |
| Frequency Response | 42 Hz to 2.1 kHz |
| Frequency Range | 37 Hz to 2.5 kHz |
| Power Capacity | 1200 W (4800 W peak), 100 hrs |
| Maximum SPL | 50 Hz - 125 Hz 136 dB-SPL cont ave (142 peak) 125 Hz - 800 Hz 135 dB-SPL cont avg (141 peak) supported, high power low frequency module |
| Impedance | 4 ohms in parallel-drive mode 2 x 8 ohms in discrete drive mode |
| Enclosure | Trapezoidal with 15 degree side angles, 16 mm (.625 in) exterior grade 11-ply Finnish birch plywood |
| Mounting | 20 points (5 top, 5 bottom, 4 each side, 2 rear), M10 threaded hardware (eyebolts NOT included, see optional accessories) |
| Dimensions | 991 x 476 x 609 mm (39 x 18.75 x 27.2 in) |
| Manufacturer | JBL |
| Color | Black |
| Country of Origin | United States |
