JBL CSS-15C-VA 5" Ceiling Speaker with EN54-24 Certification (Each)

Actual Stock Can Be Confirmed After Placing the Order.

All Delivery times are estimated based on the official restrictions.

SKU

CSS-15C-VA

Be the first to review this product

$104 $99

Notify me when the price drops

Pay 4 interest-free payments of AED 421.00.Learn more

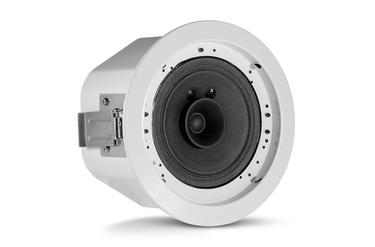

CSS-15C-VA is a full-range, EN54-24 certified ceiling speaker consisting of a 127 mm (5 inches) full-range dual-cone driver, torsion-mounted into an included easy-install blind-mount metal fire dome. The speaker is designed to provide clear and intelligible sound for applications requiring EN54 certification and/or BS5839 compliance.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

PRODUCT OVERVIEW

5" Ceiling Loudspeaker for EN54-24 Applications

Features

Component: 127 mm (5 in) fullrange dual-cone loudspeaker
EN54-24 certified and compliant with BS5839-8 standard.
6W, 3W and 1.5W multi-tap transformer for use on 100V distributed speaker lines.
Metal fire dome with easy blind-mount installation; clip-in torsion-mount speaker.

More Information
Product Name	JBL CSS-15C-VA 5" Ceiling Speaker with EN54-24 Certification (Each)
Weight	1.50 Kg
Frequency Response	(-10dB), 180 Hz – 20 kHz
Frequency Range	180 Hz – 20 kHz
Power Capacity	6 Watts (at 6W tap)
Maximum SPL	100 dB @ 1m (3.3 ft) average SPL (6W tap @ 100V)
Impedance	6W @ 100V tap: 1667 Ω 3W @ 100V tap: 3333 Ω 1.5W @ 100V tap: 6667 Ω
Sensitivity	92 dB (300 Hz – 15 kHz)
Mounting	Ceiling
Dimensions	162 mm (6.4 in) fire dome diameter (outside of clamps); 183 mm (7.2 in) speaker baffle diameter; 116 mm (4.6 in) depth from bottom of ceiling surface to back of fire dome;
Manufacturer	JBL
Color	White
Country of Origin	United States
