FLIR E5-XT Compact Thermal Imaging Camera with 120 x 90 IR Resolution
FLIR E5-XT is the perfect tool for diagnosing electrical, mechanical, and building problems, thanks to its 19,200 (160 × 120) pixel infrared detector and expanded, -20°C to 400°C (-4°F to 752°F) temperature range.
PRODUT OVERVIEW
FLIR E5-XT is the perfect tool for diagnosing electrical, mechanical, and building problems, thanks to its 19,200 (160 × 120) pixel infrared detector and expanded, -20°C to 400°C (-4°F to 752°F) temperature range. FLIR MSX® image enhancement provides extraordinary thermal imaging detail, while the built-in Wi-Fi allows users to quickly connect with the FLIR Tools® Mobile app for sharing images and sending reports easily from any location.
Affordable, Professional Thermal Imaging
SIMPLE, INTUITIVE CONTROLS
Automatic and focus-free, with clear on-screen navigation to measurement tools and settings
SHARE IMAGES AND FINDINGS EASILY
Download standard JPEGS, create reports, and share what you've found via a Wi-Fi connection to the FLIR Tools Mobile app.
BUILT FOR YOUR TOUGH WORK ENVIRONMENT
Lightweight and well-balanced, the E8-XT has an IP54 enclosure and easily withstands a 2-meter drop test
 |
 |
 |
 |
 |

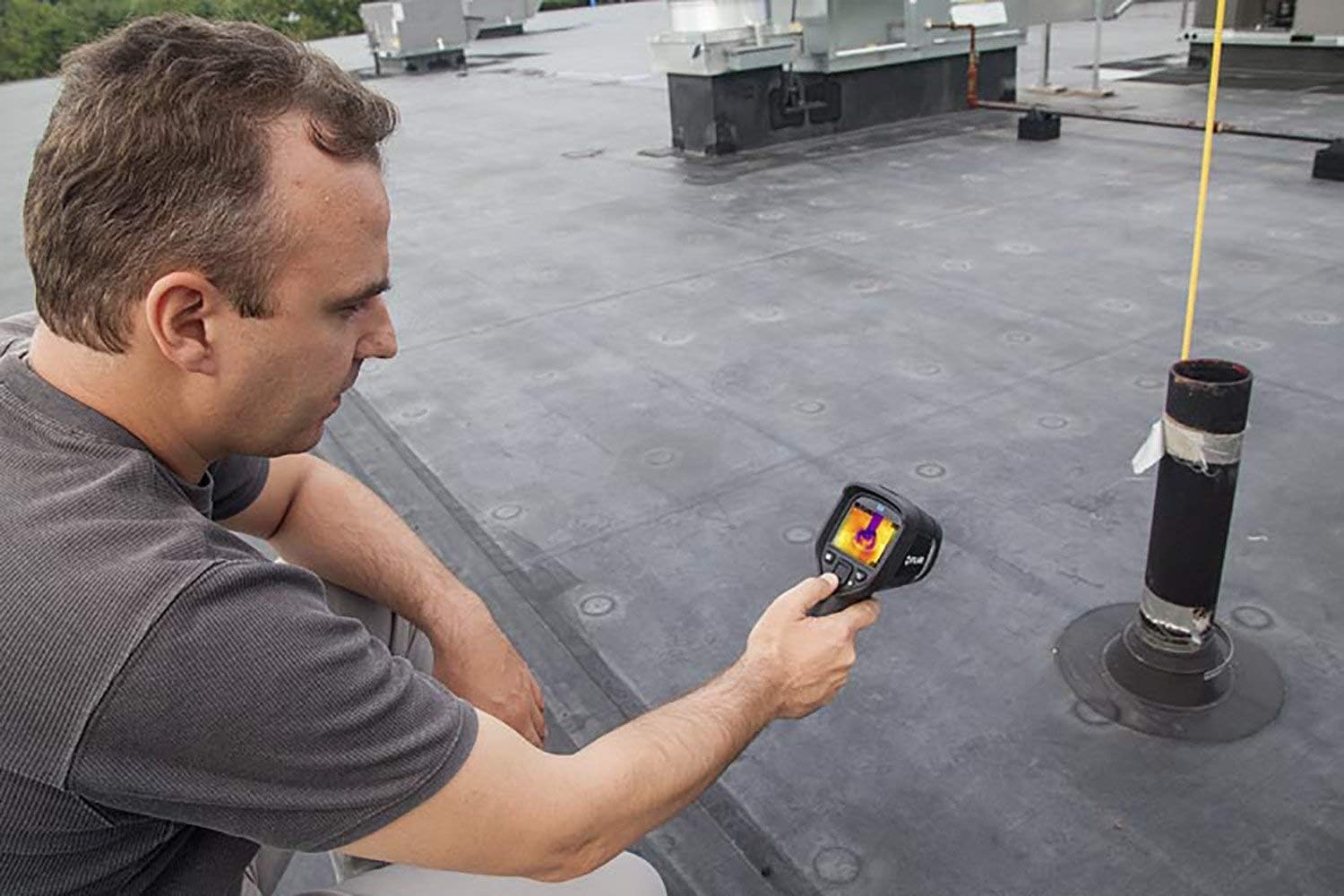

Building IspectionInefficiencies hide in plain sight. Complete audits and check for energy loss, missing insulation, air infiltration, roofing and building defects. |
HVACThe faster you find it, the faster you fix it. Inspect ducts, condenser units, electrical problems, radiant floor heating, and coil temps in a flash. |
Home Inspection Protect the house and check for building defects, energy inefficiencies, moisture damage, and electrical problems. |
| Product Name | FLIR E5-XT Compact Thermal Imaging Camera with 120 x 90 IR Resolution |
|---|---|
| Weight | 0.58 Kg |
| Battery Type | Rechargeable 3.6 V Li ion battery |
| Battery | Approx. 4 hours typical use |
| Power | 15 dBm |
| Display | 3.0 in. 320 × 240 color LCD |
| Accuracy | ±2°C (±3.6°F) or ±2% of reading, for ambient temperature 10°C to 35°C (50°F to 95°F) and object temperature above 0°C (32°F) |
| Image Sensor | Automatic adjust/lock image / IR area on visual image |
| Operating Temperature | –15°C to 50°C (+5°F to 122°F) |
| Spectral Range | 7.5–13 µm |
| Focusing Distance | 0.5 m (1.6 ft.) |
| Max Resolution | 160 × 120 pixels |
| Max. Power Consumption | Max. output power: 15 dBm |
| Dimensions | 244 × 95 × 140 mm (9.6 × 3.7 × 5.5 in) |
| Manufacturer | Flir |
| Color | Black |
