PRODUCT OVERVIEW

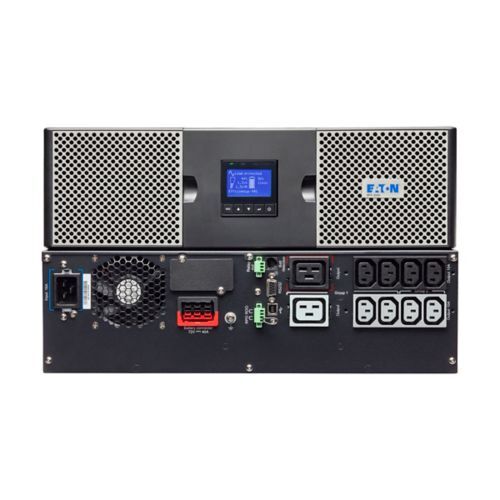

 Eaton 9PX6KIBP Online UPS

The Eaton 9PX6KIBP is a high‑performance online/double‑conversion uninterruptible power supply (UPS) designed to deliver continuous, clean power to mission‑critical infrastructure in enterprise, industrial, and IT environments. Rated at 6000 VA / 5400 W with a 0.9 output power factor, it maximizes usable real‑power delivery for sensitive equipment such as servers, storage, networking gear, and communication systems. This model supports both rack‑mount (3U) and tower configurations, combining flexible deployment with industrial‑grade reliability.

Electrical Performance and Topology

The Eaton 9PX6KIBP utilizes online/double‑conversion topology to continuously regenerate output voltage and frequency, isolating connected loads from mains irregularities including surges, sags, brownouts, and frequency variances. It delivers a pure sine‑wave output with low distortion (≤ 2 % at linear load) across a configurable nominal voltage range of 200/208/220/230/240 V ±1 %. Output connections include three IEC C13 sockets, two IEC C19 sockets, and a hardwired output, supporting versatile load arrangements.

Battery System and Runtime Flexibility

Internally, the UPS is equipped with 15 sealed, lead‑acid batteries (12 V / 5 Ah) managed by Eaton’s Advanced Battery Management (ABM) with temperature‑compensated charging, automatic self‑testing, and deep‑discharge protection to extend service life and reliability. Batteries are hot‑swappable, enabling replacement without powering down the UPS. The system also supports external battery modules (EBMs) to extend runtime for longer outages or priority load protection.

Communications and Control Features

For monitoring and control, the 9PX6KIBP includes a multilingual graphical LCD display that provides real‑time status, load levels, and diagnostic information. Connectivity options comprise a USB port (HID‑compliant), RS‑232 serial port, mini‑terminal blocks for remote On/Off and remote power off (RPO), dry contacts (4 outputs + relay, DB9), and a DB15 for parallel operation. One expansion slot supports optional communication cards for SNMP or other remote management interfaces. Eaton’s Intelligent Power Manager and Intelligent Power Protector software integrate with the UPS for automated shutdown and remote monitoring.

Key Benefits:

• Extended runtime for critical systems during utility failures

• Rack/tower design with included mounting kit

• Maintenance‑free VRLA battery technology

• Scalable solution when paired with compatible Eaton 9PX UPS models

• Certified to global safety, EMC, and performance standards
