PRODUCT OVERVIEW

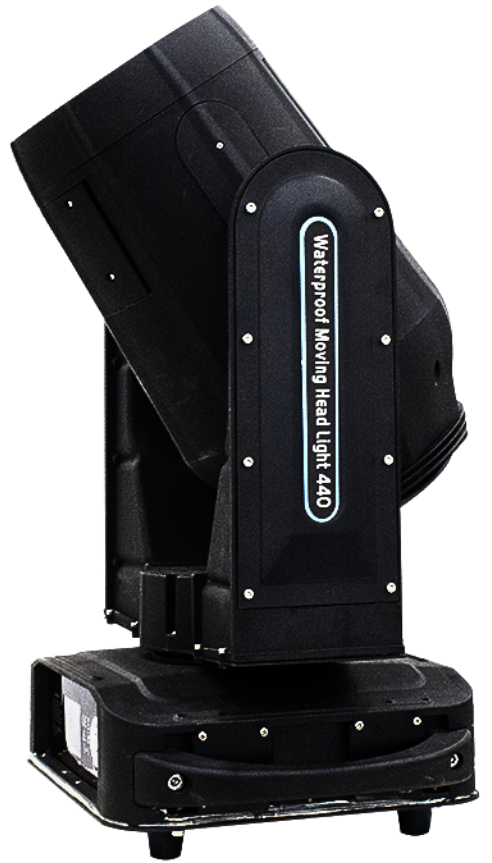

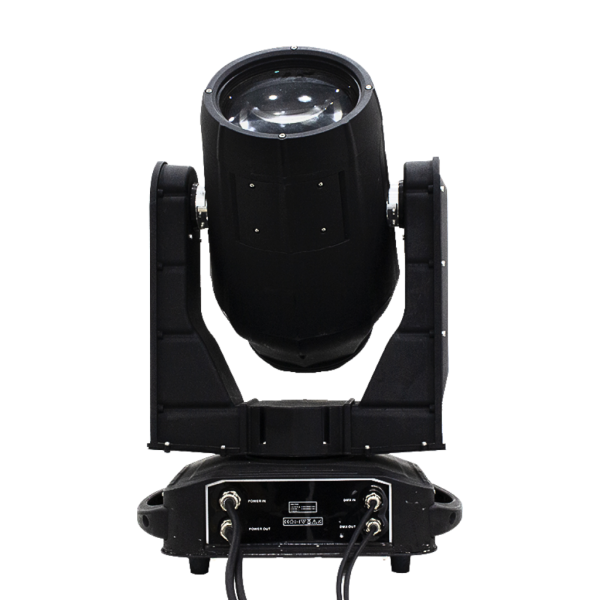

Experience powerful performance with the 440W/470W Waterproof Beam Light, designed for both indoor and outdoor stage lighting. Equipped with a high-intensity YODN lamp, it delivers sharp, vibrant beams with precision control. Its versatile DMX512, sound, auto, and master-slave modes provide flexible operation, while dual rotating prisms and color/gobo wheels create stunning visual effects. Built with IP55 waterproof protection, this fixture is perfect for concerts, events, and large-scale productions.

The 440W/470W Waterproof Beam Light combines powerful brightness with rugged durability for professional lighting needs. Featuring a high-output YODN lamp, it produces crisp, focused beams enhanced by rich color mixing and dynamic gobo effects. With multiple control modes and smooth pan/tilt motion, it's ideal for creating dramatic atmospheres. Its IP55-rated waterproof design makes it perfect for both indoor stages and outdoor events.

Light Source

Equipped with a powerful 440W/470W YODN lamp, this beam light delivers high-intensity output with excellent color rendering and long-lasting performance, making it ideal for large-scale outdoor applications.

Control System

The unit supports multiple control modes, including DMX512, sound-activated, auto-run, and master-slave, offering flexibility for synchronized lighting shows or standalone use.

Optical Features

It features a precise optical system with a color wheel, static gobo wheel, dual rotating prisms (8 and 16 facets), and a frost filter. These components create vibrant effects, sharp beams, and atmospheric visuals suitable for any event.

Movement & Positioning

With 540° pan and 275° tilt and 8/16-bit resolution, the light offers smooth, accurate movement for dynamic beam placement and impressive light shows.

Build & Protection

Designed for outdoor environments, this fixture is IP55 rated for water and dust resistance. Its robust build ensures reliable operation in harsh weather conditions during concerts, festivals, and open-air performances.

Features:

• Voltage: AC100-240V 50/60Hz

• Power: 600W

• Light Source: 440W/470W Yodn Lamp

• Channels: DMX 16 Channels

• Color Wheel: One color wheel, 11 colors

• Gobo: One static gobo wheel, 12 gobos+open

• Prism: Two rotating prisms, one 8 facet prism  and one 16 facet prism

• Frost: Gradually frost, wash angle 5-30 degrees

• Strobe: 0.5- 14 times/ second variable strobe effect

• Lens: Glass optic lens, linear zoom 0-20 degrees

• Movement: Pan 540 degrees, 8/16 bit resolution, Tilt 275 degrees, 8/16 bit resolution

• Control Mode: DMX512, Sound, Auto, Master Slave
