PRODUCT OVERVIEW

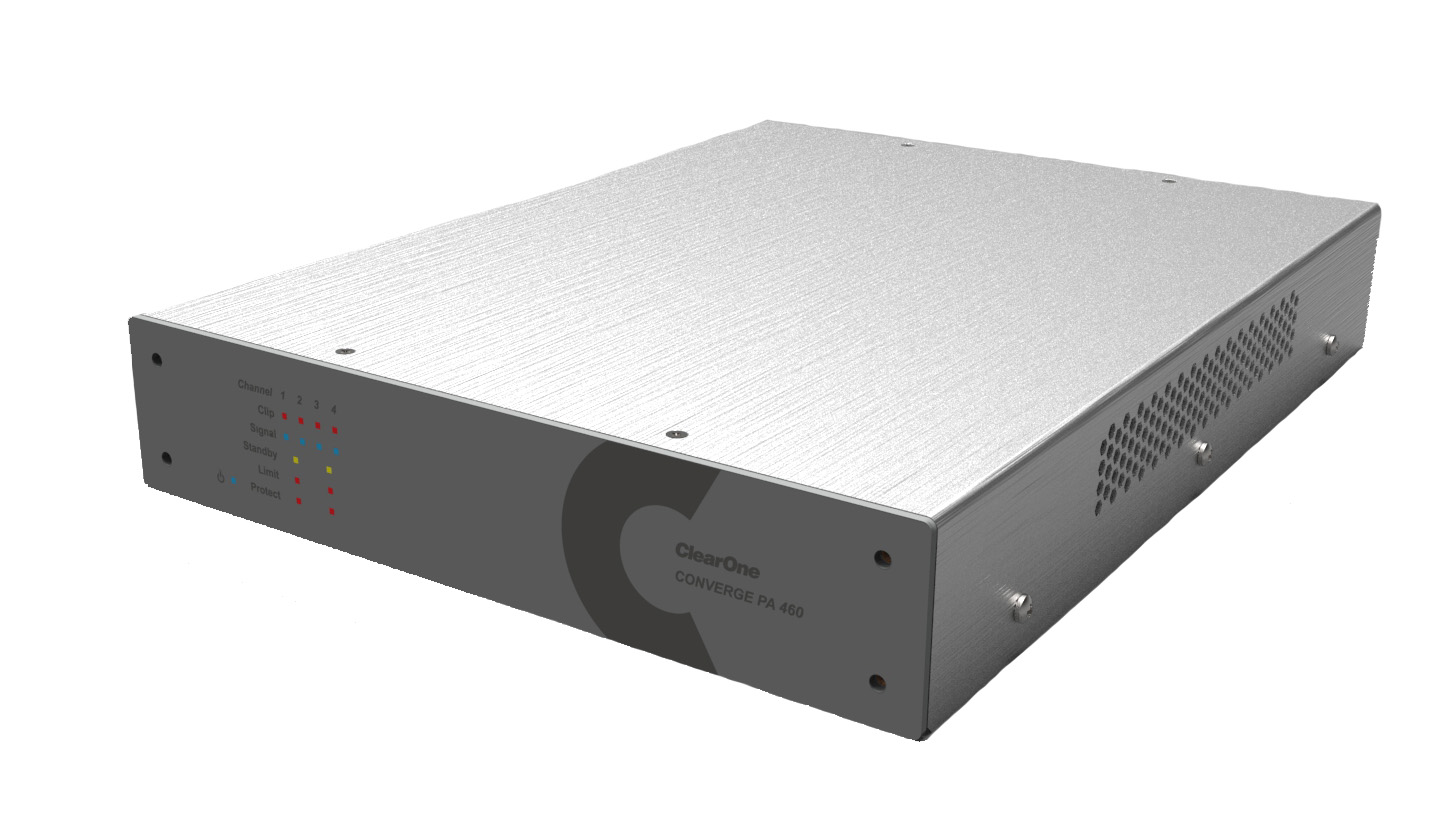

ClearOne CONVERGE PA 460

Enhance your audio experience with the CONVERGE PA 460, a high-performance 4-channel x 60W Class-D Audio Power Amplifier. This state-of-the-art device delivers reliable, high-efficiency amplification, ensuring professional sound quality for a variety of applications, including conferencing, sound reinforcement, and distribution.

Designed for optimal performance, the CONVERGE PA 460 amplifier is specifically engineered to work seamlessly with ClearOne's DSP mixers. However, its versatile design also allows for compatibility with third-party mixers, making it a flexible choice for your audio needs.

Whether you're setting up a conference room, enhancing a sound system, or distributing audio across multiple locations, the CONVERGE PA 460 amplifier provides the power and clarity you need. With its 4/8 Ohms Mode or 70V/100V Modes, this Class-D power audio amplifier offers a range of options to suit your specific requirements.

4 Channel x 60 W Power Amplifier

The CONVERGE PA 460 amplifier is a 4 Channel x 60 Watts, high-efficiency Class D power audio amplifier for reliable amplification with professional sound quality for conferencing, sound reinforcement, and distribution applications.

CONVERGE PA amplifiers are optimized to work with ClearOne’s DSP mixers and any third-party mixers.

Inputs & Outputs

• Inputs: 4-channel, Balanced audio input, 3.81mm Green Phoenix/Euroblock type male header, Push-on mini-terminal block

• Outputs: 4-channel, Balanced audio output, 5.08mm Black Phoenix/Euroblock type male header, Push-on mini-terminal block

• Input Sensitivity: 20Hz – 22kHz @ 0dBu

• Output Modes: 4/8W and 70.7V/100V

• Max Rated Output: 4 x 60W @ sensitivity, in 4/8Ω & 70.7V/100V modes

• Max Rated Output, Bridged: 2 x 120W @ sensitivity, in 4/8Ω mode

• Max Rated Output, Bridged: 2 x 120W @ sensitivity, in 70.7V/100V mode

• Frequency Response: 20Hz - 22KHz (+/- 1dB)

• THD+N: 20Hz – 22kHz @ rated power, 4/8W, <0.08%

• Dynamic Range: 20Hz – 20kHz @ 0dB, >100dB, 8W, unweighted

Front Panel LED Indicators

• POWER: Power status indicator. Blue light indicates power on

• CLIP: Clip status indicator. Red light indicates clip status due to:

  - The input is too high, signal clip

  - Output peak detected

• SIGNAL PRESENT: Signal indicator, Blue light indicates signal is present or passing out

• STANDBY: Standby mode status indicator Yellow light indicates Standby mode enables when no audio is present. The amplifier first enters Mute mode at 2 minutes, then into Standby mode at 10 minutes.

• LIMIT: Limit indicator. Red light indicates gain reduction activation.

• PROTECT/DISABLE: Protection or Disable status indicators. Red light indicates Disabled/Mute/Protection mode. Mute mode is enabled when no audio is present for 2 minutes. Protection mode is enabled when a temperature exceeds 185°F (85°C)

Control

• Slide Switches: Single End, Bridged mode 70.7V mode 100V mode HPF mode @ 80Hz

• Potentiometer Adjustable: 0 to max @ rated power
