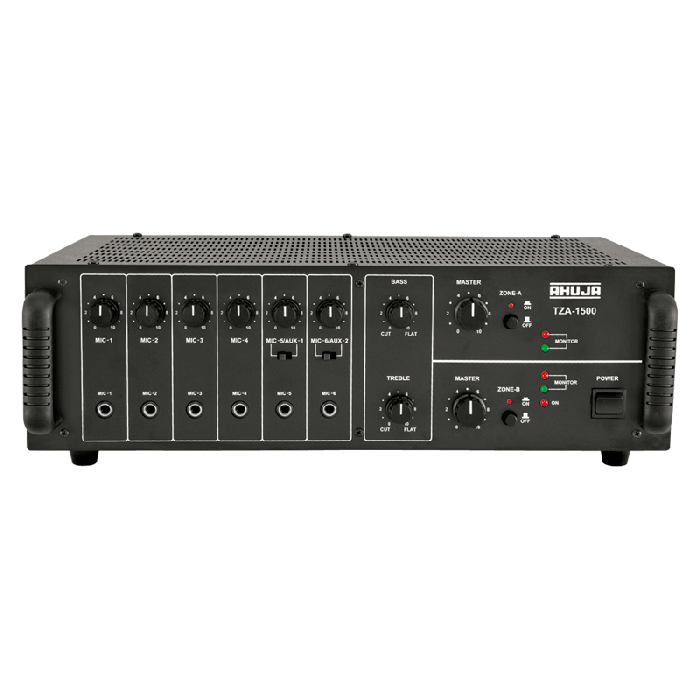

Ahuja TZA1500 6-Microphone 2-Aux Input PA Amplifier
Quick Overview
- Dual‑zone 80 W + 80 W PA amplifier
- 6 mic + 2 aux inputs
- Independent zone control
- Bass & treble tone adjustment
- AC/DC operation with battery support
PRODUCT OVERVIEW
TZA-1500® WATTS 2 ZONE PA MIXER AMPLIFIER 6 Mic & 2 Aux Inputs. 80W+80W power output. Connecting two groups of speakers, preamplifier output, bass and treble controls, zone on/off facility, and AC/DC operation have been provided. TZA-1200 is suitable for small-sized installations such as in places of worship where both external and internal speakers are required to be connected with different sound level settings.
|
Power Output |
100W + 100W Max., 80W + 80W RMS at 10% THD, 70W + 70W RMS at 5% THD, 60W + 60W RMS at 2% THD |
|
Output Regulation |
≤ 2 dB, no load to full load at kHz |
|
Input Channels |
6 × Mic 0.6 mV/4.7 kΩ, 2 × Aux 100 mV/470 kΩ |
|
Frequency Response |
65-15,000 Hz ±3 dB |
|
Signal-to-Noise Ratio |
60 dB |
|
Tone Controls |
Bass: -10dB at 100Hz, Treble: -10dB at 10kHz |
|
Outputs |
Preamp 200 mV/600 Ω |
|
Speaker Outputs |
4Ω, 8Ω, 70V & 100V for each zone |
|
Power Supply |
AC: 220-240V 50/60Hz DC: 12V (12V Car Battery) |
|
Power Consumption |
AC: VA DC: A |
|
Dimensions |
W460 × H155 × D310 mm |
|
Weight |
14.2 kg |
| Product Name | Ahuja TZA1500 6-Microphone 2-Aux Input PA Amplifier |
|---|---|
| Weight | 10.10 Kg |
| Frequency Response | 65-15,000Hz ±3dB |
| Power Capacity | AC: 220-240V 50/60Hz DC: 12V (12V Car Battery) |
| Dimensions | W460 × H155 × D310 mm |
| Manufacturer | Ahuja |
| Color | Black |
| Country of Origin | United Arab Emirates |
